Rear Differential Lock (2WD): Notes

Fig 1: Rear Differential Lock Wiring Diagram (2WD; 1 Of 2)
G08847254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

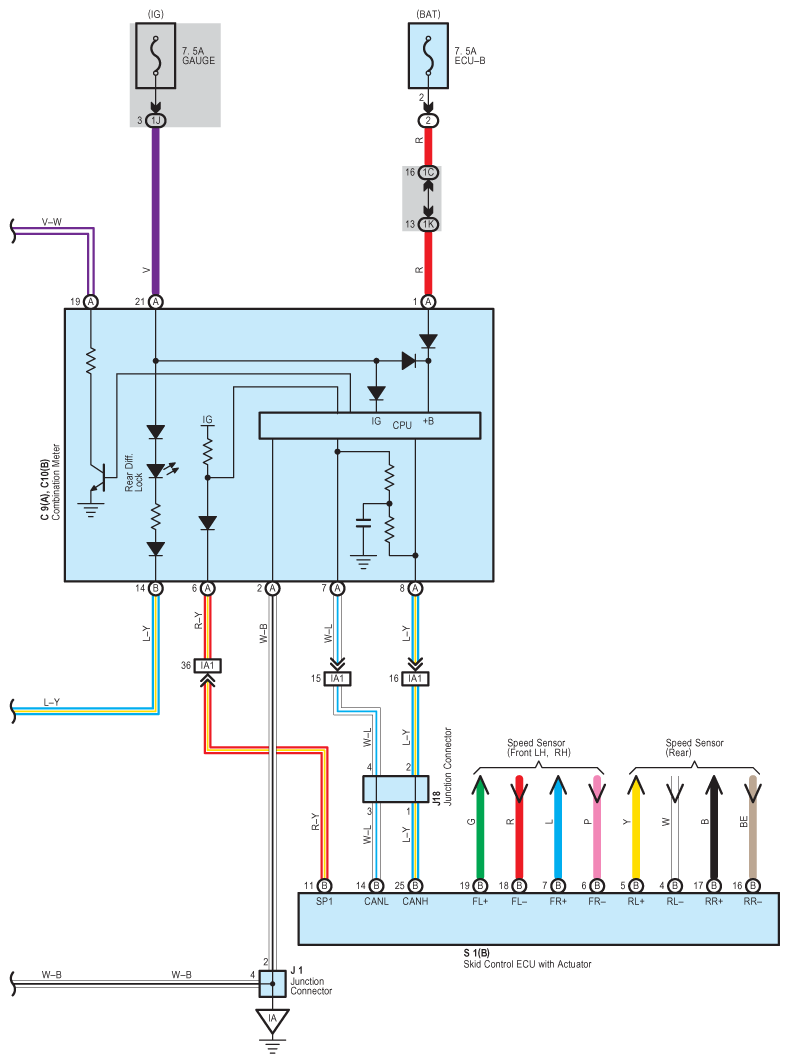

Fig 2: Rear Differential Lock Wiring Diagram (2WD; 2 Of 2)
G08847255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
