Home >> Toyota >> 2012 >> Sienna XLE, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (2GR-FE) (Service Information) >> Ignition Coil And Spark Plug >> Components >> Illustration

Ignition Coil And Spark Plug: Components: Illustration

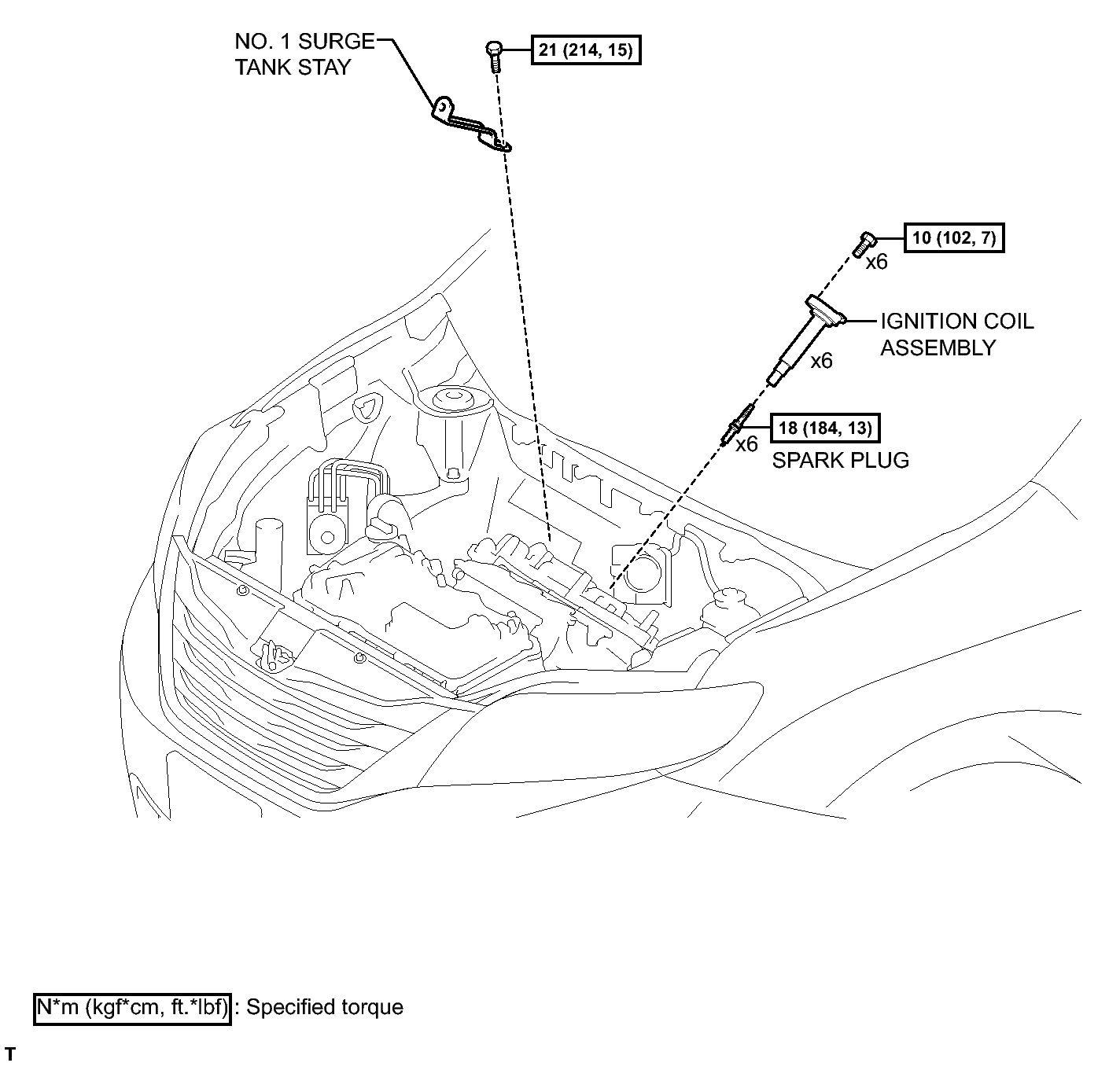

Fig 1: Ignition Coil & Spark Plug Replacement Components With Torque Specifications

GTY301225

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
