Home >> Toyota >> 2012 >> Sienna XLE, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (2GR-FE) (Service Information) >> Heated Oxygen Sensor >> Components >> Illustration

Heated Oxygen Sensor: Components: Illustration

Fig 1: Heated Oxygen Sensor Replacement Components (1 Of 3)
GTY301974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


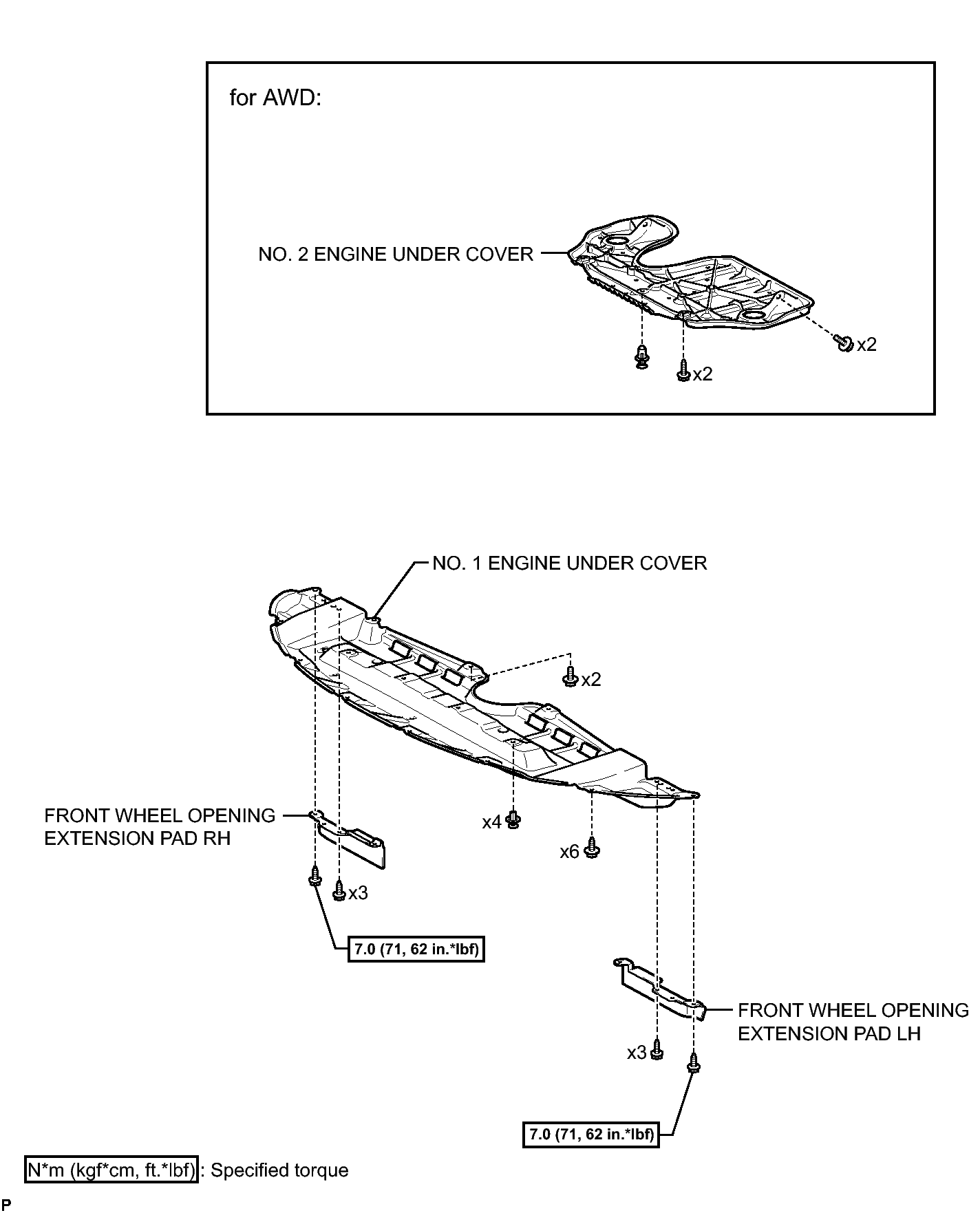

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications (2 of 3)
GTY299307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

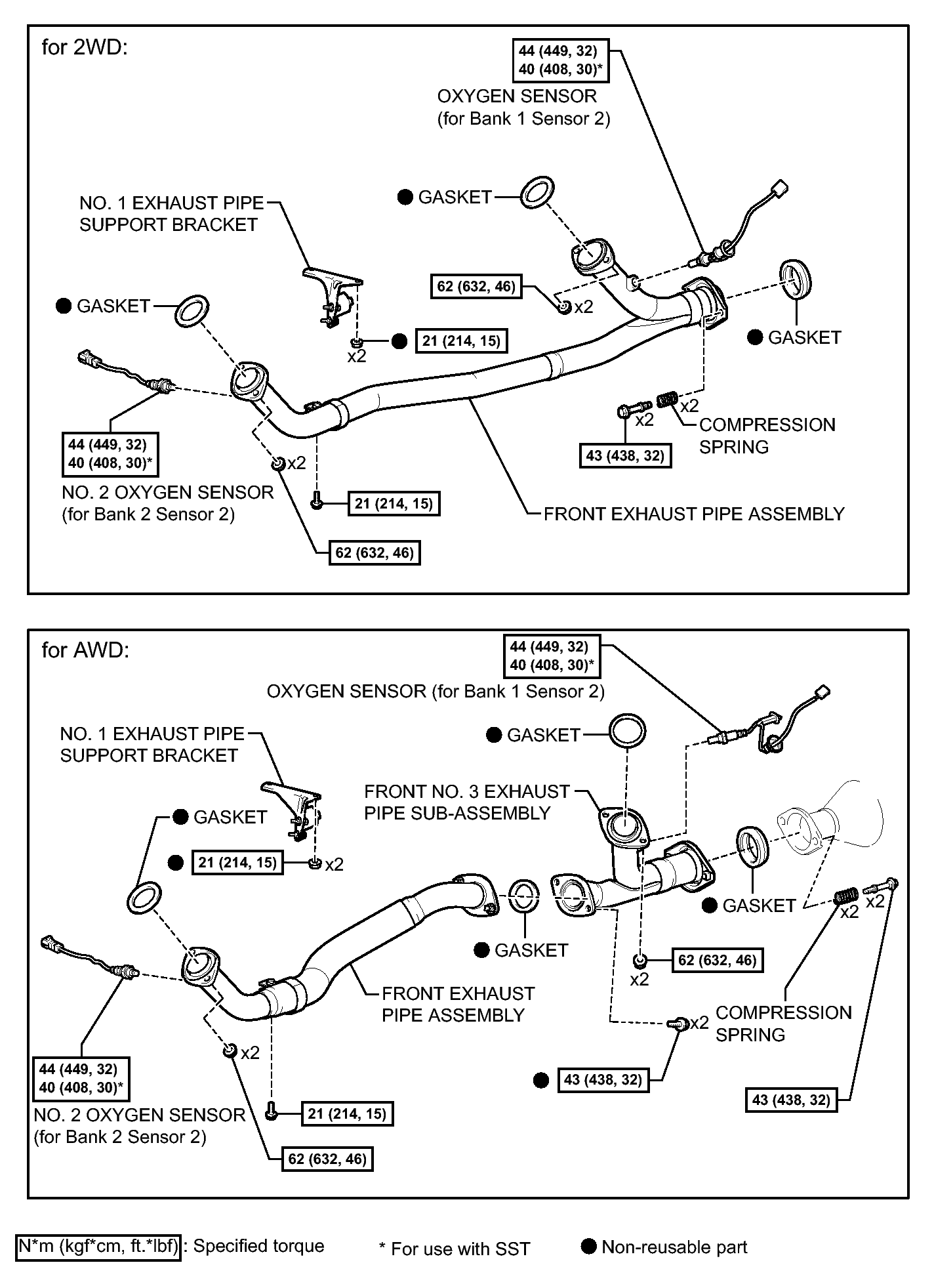

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications (3 of 3)
GTY296309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
