Transfer Assembly: Installation: Installation

1. Install the 4 new transfer and transaxle setting stud bolts onto the automatic transaxle positions shown in the illustration.

   Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

   NOTE:

   Install the sealed side of the stud bolt onto the automatic transaxle.

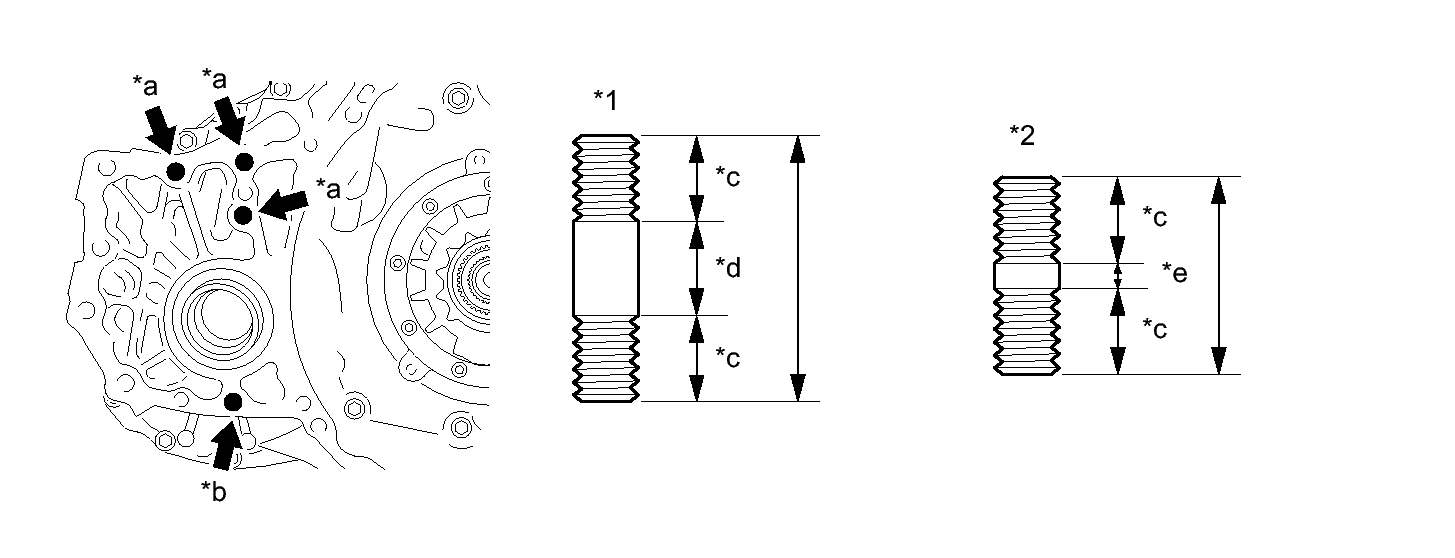

   Fig 1: Identifying Transfer & Transaxle Setting Stud Bolts At Automatic Transaxle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Stud Bolt A	*2	Stud Bolt B
   *a	Stud Bolt A Position	*b	Stud Bolt B Position
   *c	22 mm (0.866 in.)	*d	25 mm (0.984 in.)
   *e	5 mm (0.197 in.)	-	-

2. Install the transfer onto the automatic transaxle with the 8 nuts.

   Torque: 69 N*m (700 kgf*cm, 51 ft.*lbf)

   NOTE:

   • Install the transfer to the automatic transaxle horizontally.
   • Do not touch the transfer oil seals during installation.

1. Install the transfer stiffener plate RH with the 4 bolts.
   Fig 2: Identifying Bolts And Transfer Stiffener Plate RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt A

   Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

   Bolt B

   Torque: 78 N*m (795 kgf*cm, 58 ft.*lbf)

Refer to INSTALLATION, ENGINE 2GR-FE
