Transmission Control Cable: Components: Illustration

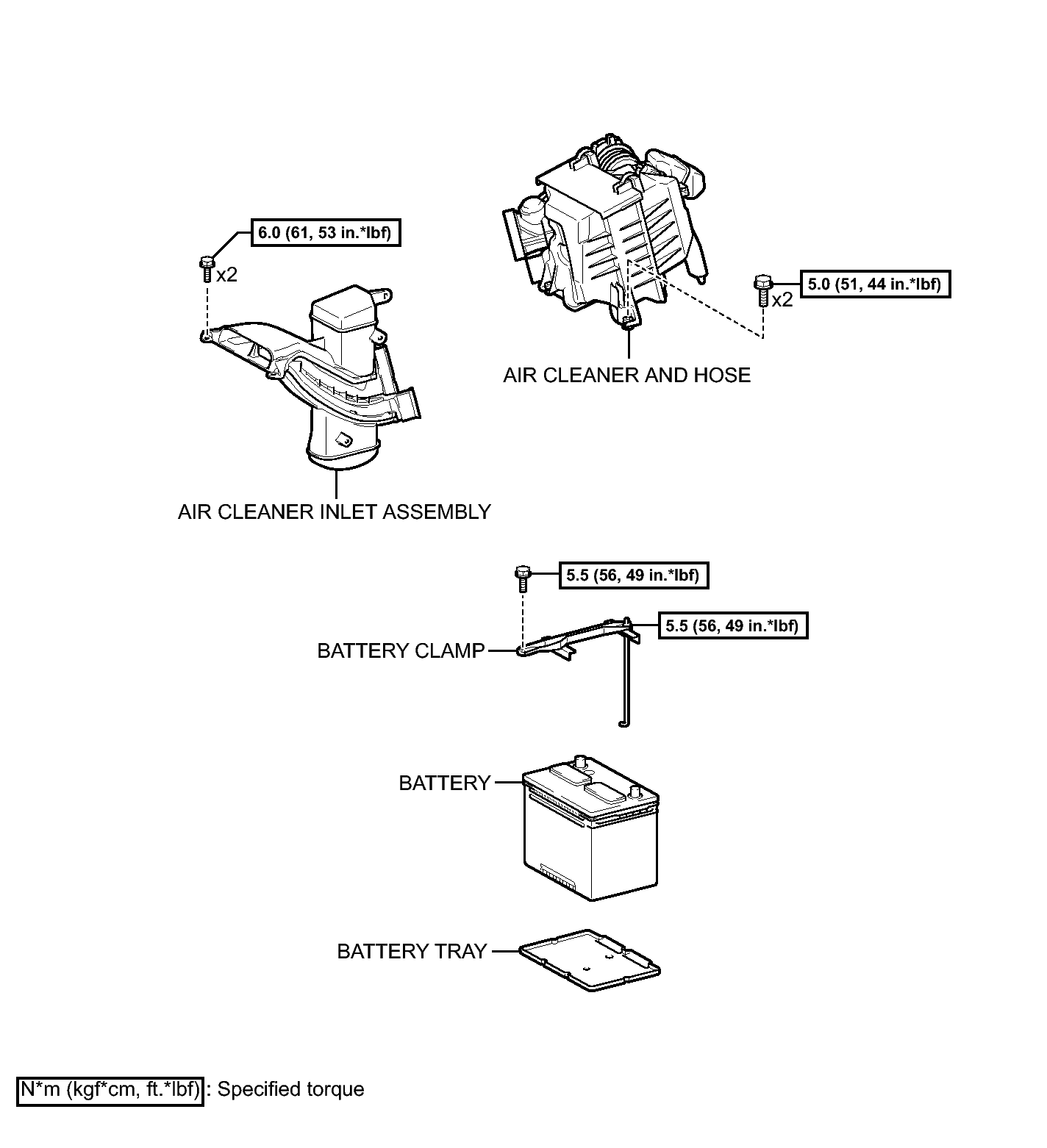

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 2)
GTY302432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

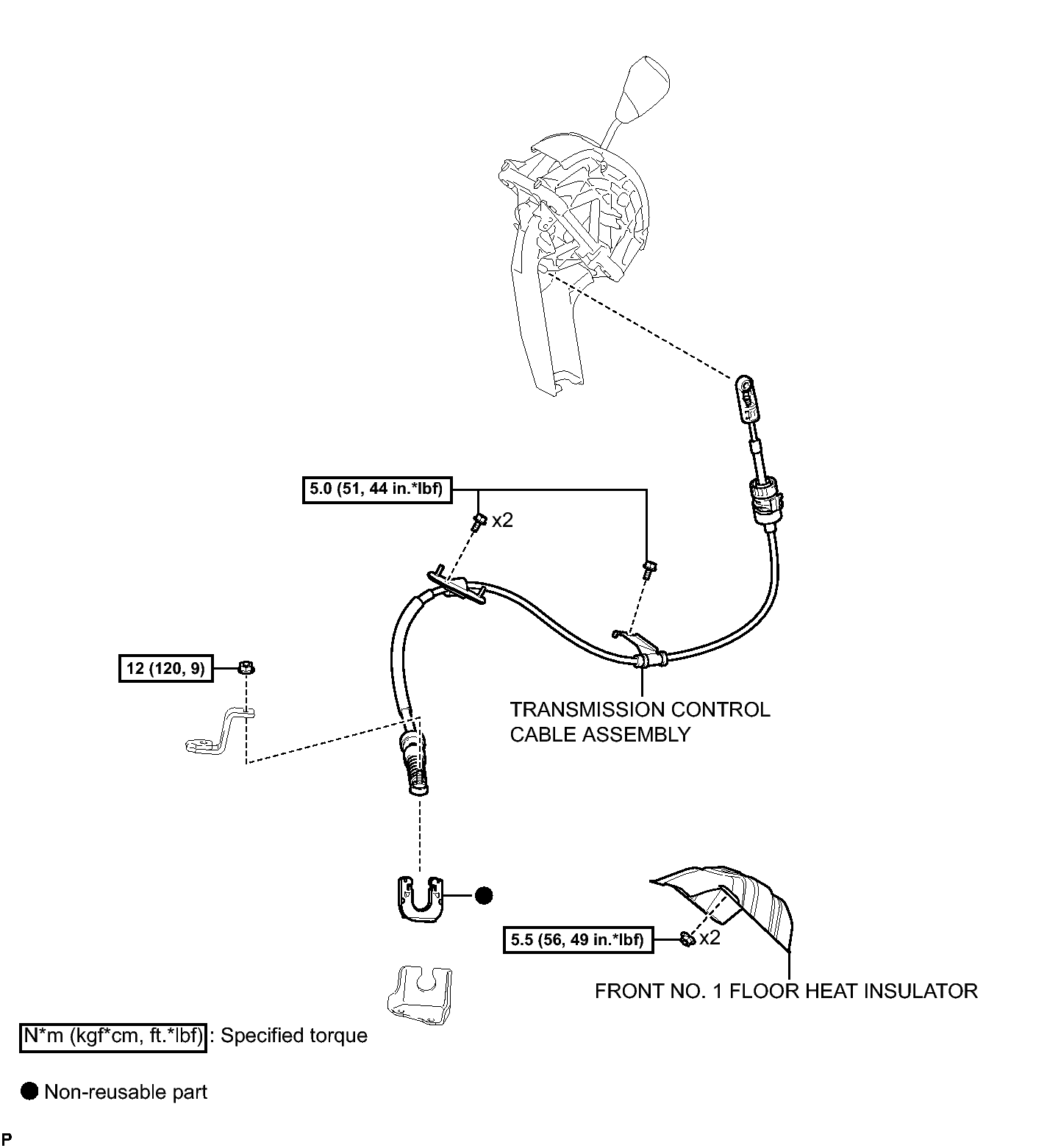

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 2)
GTY297966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
