Automatic Transmission System (U660F) (Service Information): TCM: Components: Illustration

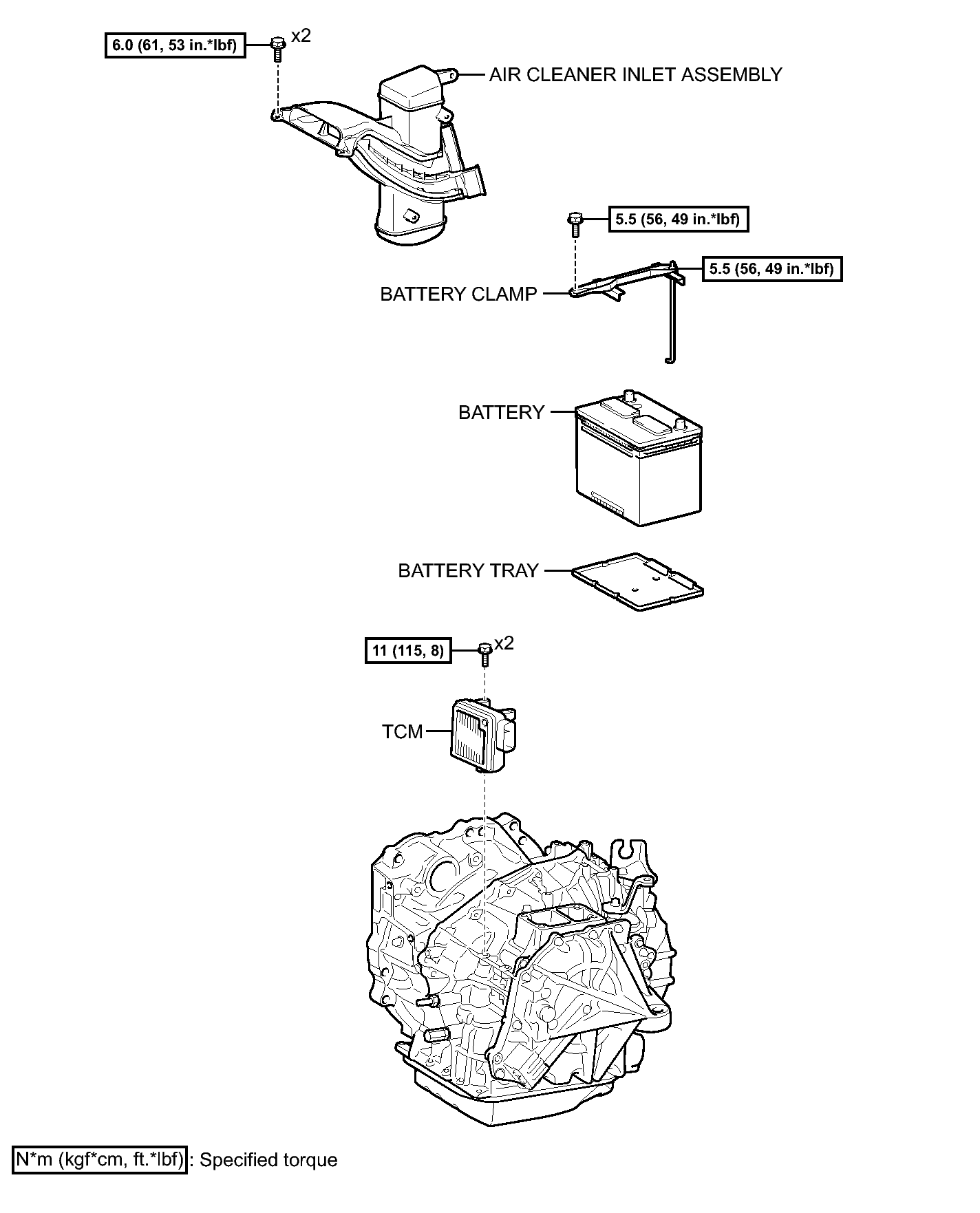

Fig 1: TCM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
