Shift Lever: Reassembly: Reassembly

INSTALL LOWER POSITION INDICATOR HOUSING

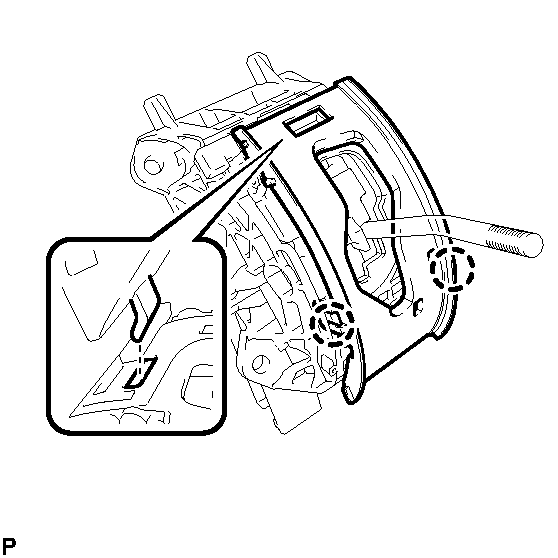

1. Put the guide in position and engage the 2 claws to install the lower position indicator housing onto the shift lock control unit.

  Fig 1: Identifying Lower Position Indicator Housing & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 POSITION INDICATOR SLIDE COVER
1. Install the No. 2 position indicator slide cover onto the position indicator slide cover.

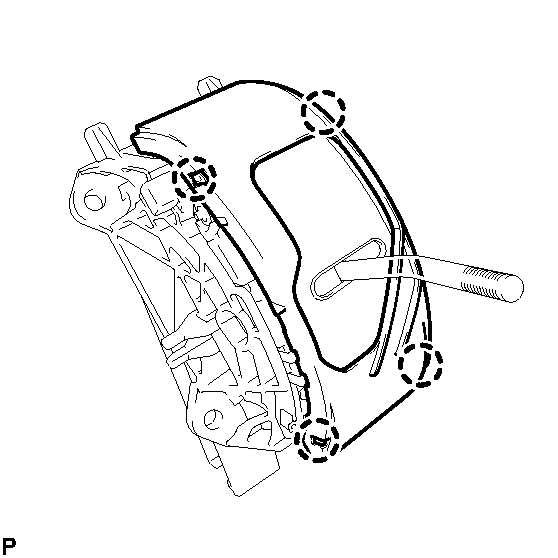

  Fig 2: Identifying No. 2 Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover onto the lower position indicator housing as shown in the illustration.

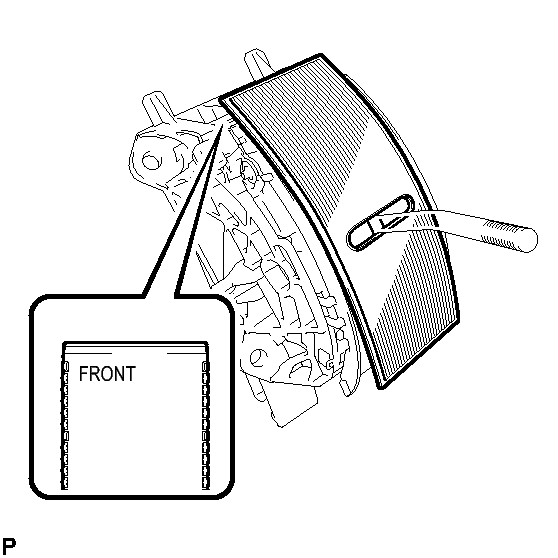

  Fig 3: Identifying Front Position Of Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER POSITION INDICATOR HOUSING
1. Engage the 4 claws to install the upper position indicator housing onto the lower position indicator housing.

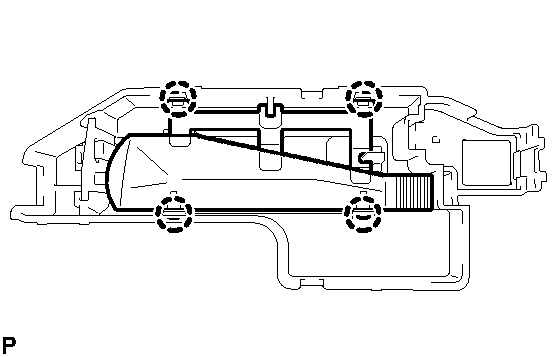

  Fig 4: Identifying Upper Position Indicator Housing & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY

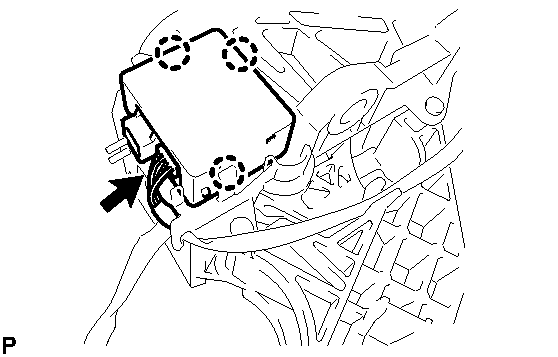

1. Engage the 3 claws to install the shift lock control ECU onto the shift lock control unit.

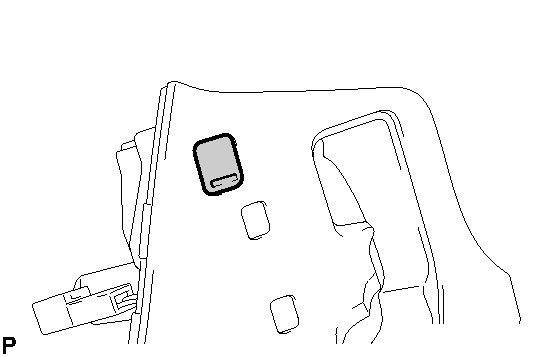

  Fig 5: Identifying Shift Lock Control ECU, Connector & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Engage the claw to install the indicator light wire onto the lower position indicator housing.

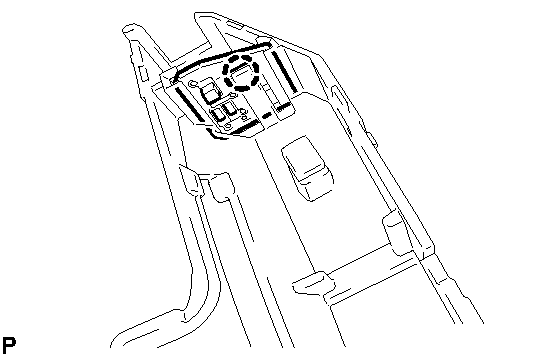

  Fig 6: Identifying Indicator Light Wire & Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR LIGHT GUIDE
1. Engage the 4 claws to install the position indicator light guide onto the lower position indicator housing.

  Fig 7: Identifying Position Indicator Light Guide & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER POSITION INDICATOR HOUSING

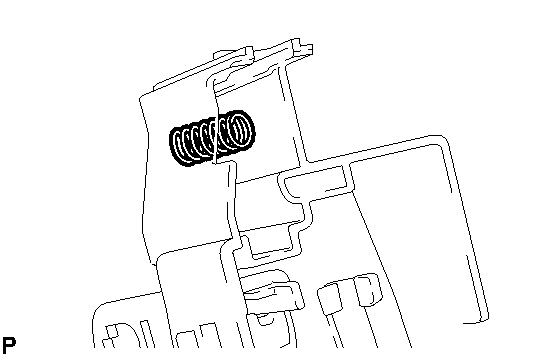

1. Install the shift lock release spring onto the lower position indicator housing.

  Fig 8: Identifying Shift Lock Release Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

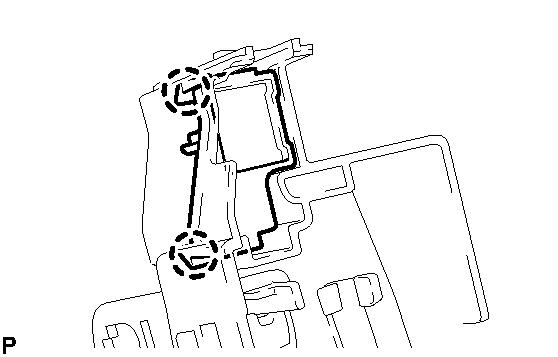

2. Engage the 2 claws to install the shift lock release button onto the lower position indicator housing.

  Fig 9: Identifying Shift Lock Release Button & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

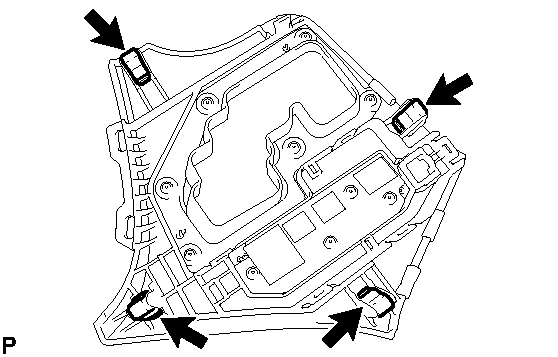

3. Install the 4 clips onto the shift position indicator housing.

  Fig 10: Identifying Shift Position Indicator Housing & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

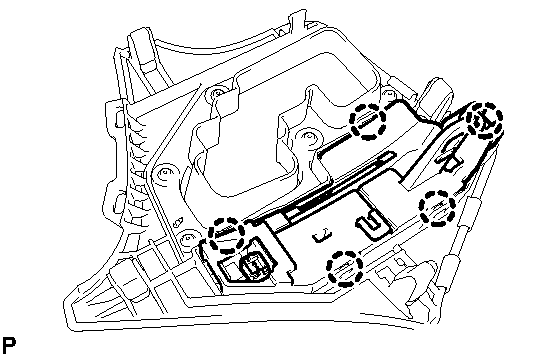

4. Engage the 5 claws to install the lower position indicator housing onto the shift position indicator housing.

  Fig 11: Identifying Lower Position Indicator Housing & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

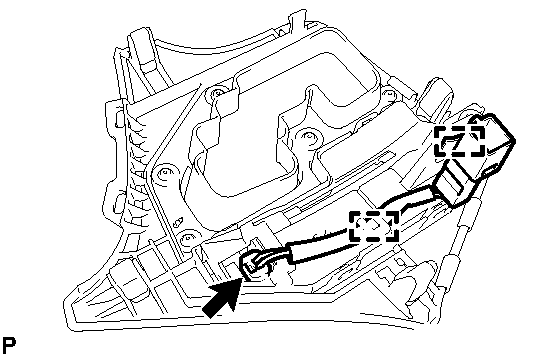

5. Connect the connector and 2 clamps to install the wire harness onto the lower position indicator housing.

  Fig 12: Identifying Lower Position Indicator Housing Connector & Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

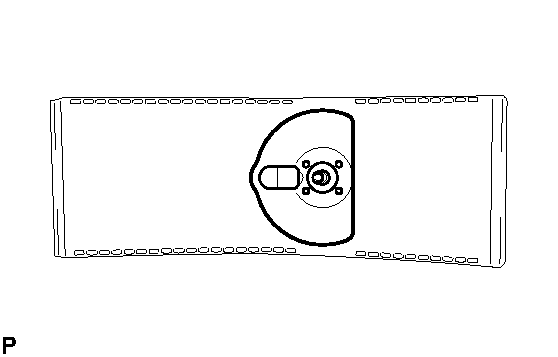

INSTALL SHIFT LEVER CAP
1. Install the shift lever cap onto the shift position indicator housing.

  Fig 13: Identifying Shift Lever Cap At Shift Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
