Automatic Transaxle Assembly: Components: Illustration

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY306912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

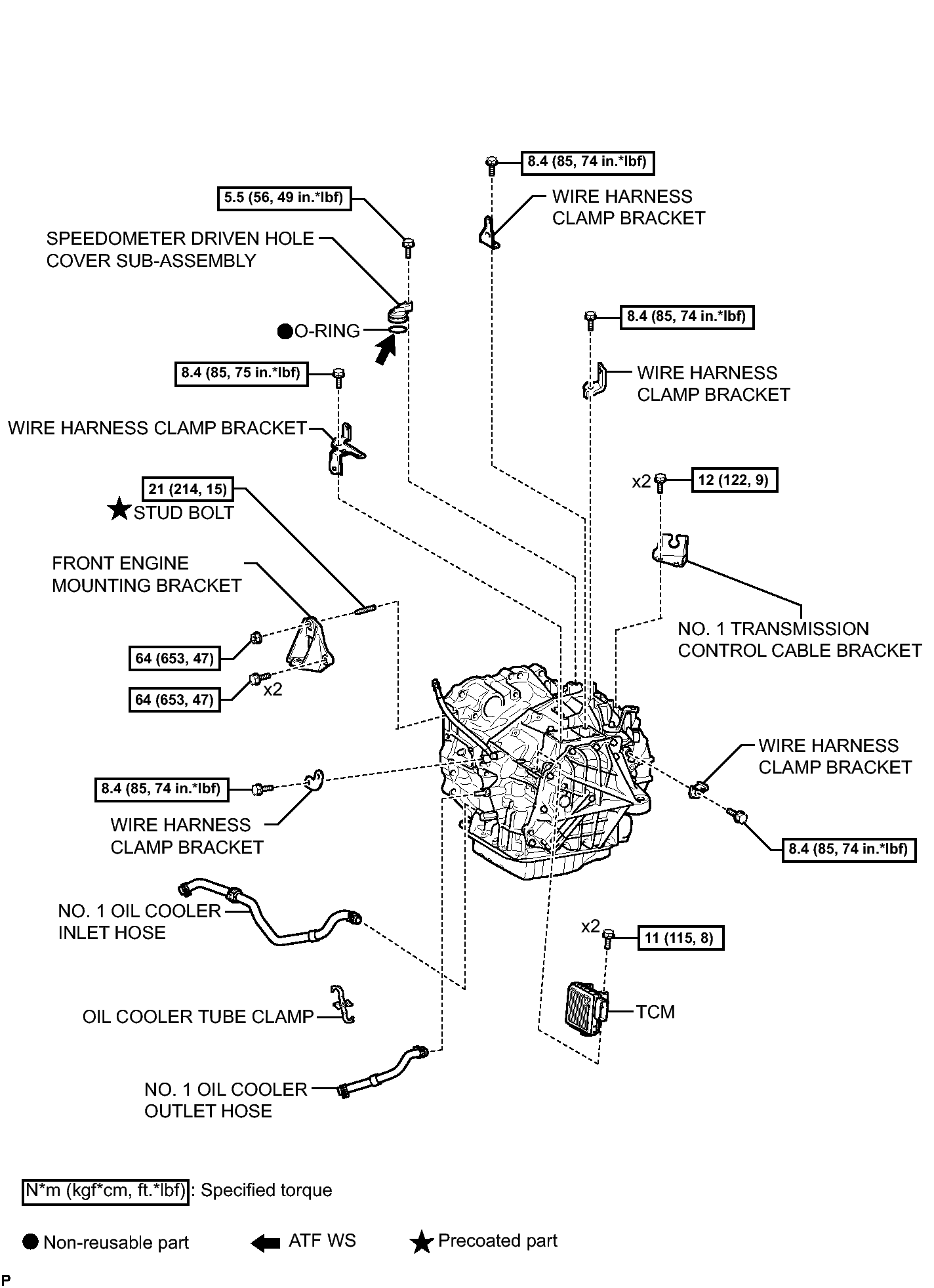

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY296178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
