ATF Temperature Sensor: Removal: Removal

  1. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

    Refer to REMOVAL

  2. REMOVE TORQUE CONVERTER CLUTCH ASSEMBLY  See step  8
  3. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY  See step  3
  4. REMOVE AUTOMATIC TRANSAXLE OIL PAN GASKET  See step  4
  5. REMOVE TRANSMISSION OIL CLEANER MAGNET  See step  5
  6. REMOVE VALVE BODY OIL STRAINER ASSEMBLY  See step  6
  7. REMOVE ATF TEMPERATURE SENSOR (TRANSMISSION WIRE)
    1. Disconnect the connector.

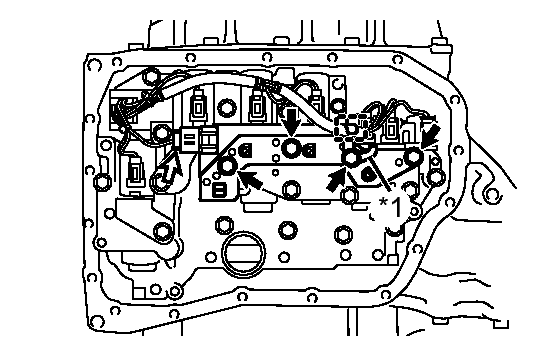

      Fig 1: Identifying ATF Temperature Sensor, Wire Harness Clamp & Bolts
      GTY295760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Wire Harness Clamp
    2. Disengage the clamp and disconnect the transmission wire.
    3. Remove the 4 bolts, wire harness clamp and ATF temperature sensor from the transmission valve body.
    4. Remove the O-ring from the ATF temperature sensor.

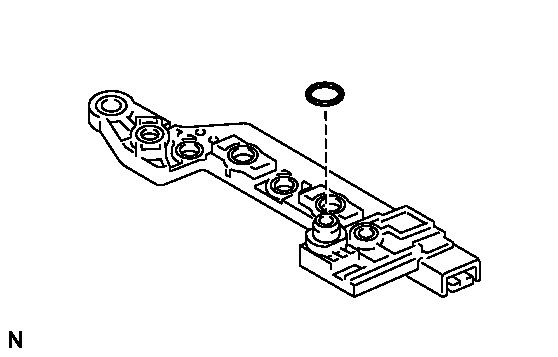

      Fig 2: Identifying ATF Temperature Sensor O-Ring
      GTY297745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
