ATF Temperature Sensor: Components: Illustration

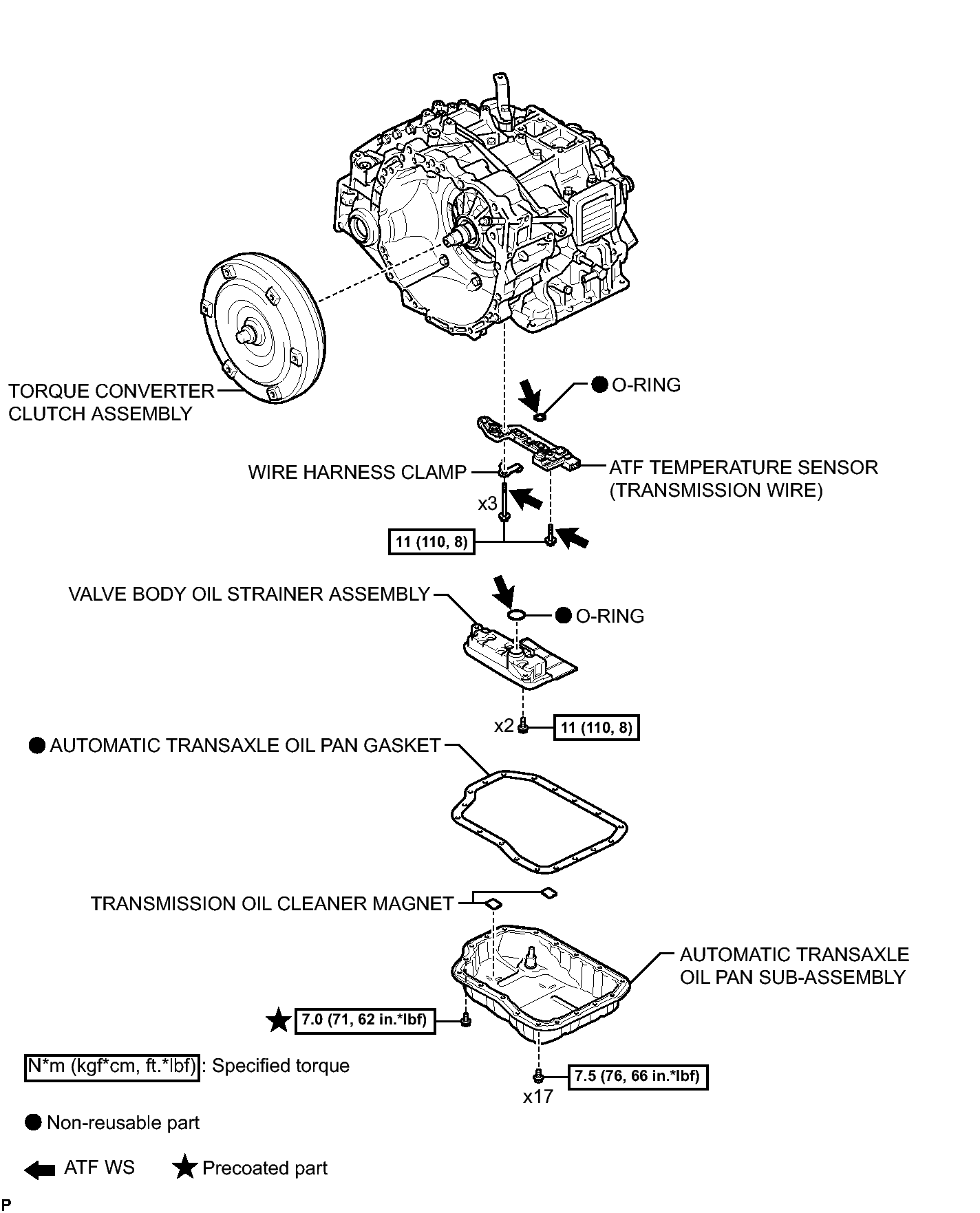

Fig 1: ATF Temperature Sensor Replacement Components With Torque Specifications

GTY300648

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
