Curtain Shield Airbag Assembly: Installation: Installation

WARNING:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing. Refer to PRECAUTION .

HINT:

The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY RH
1. Check that the ignition switch is off.
2. Check that the cable is disconnected from the negative (-) battery terminal.
  WARNING:
  Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
3. Install the curtain shield airbag assembly with the 10 bolts.
  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

  NOTE:
  Do not twist the curtain shield airbag assembly when installing it.
4. Connect the airbag connector.

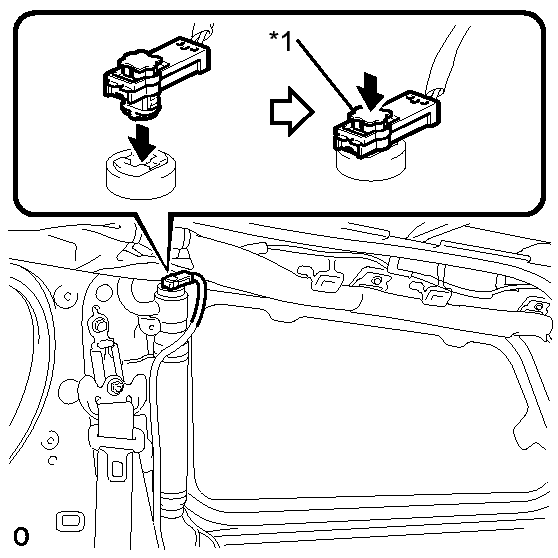

  Fig 1: Connecting Curtain Shield Airbag Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Locking Button

  NOTE:
  Securely lock the locking button.
INSTALL ROOF HEADLINING ASSEMBLY
Refer to INSTALLATION
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
