Parts Location: Illustration

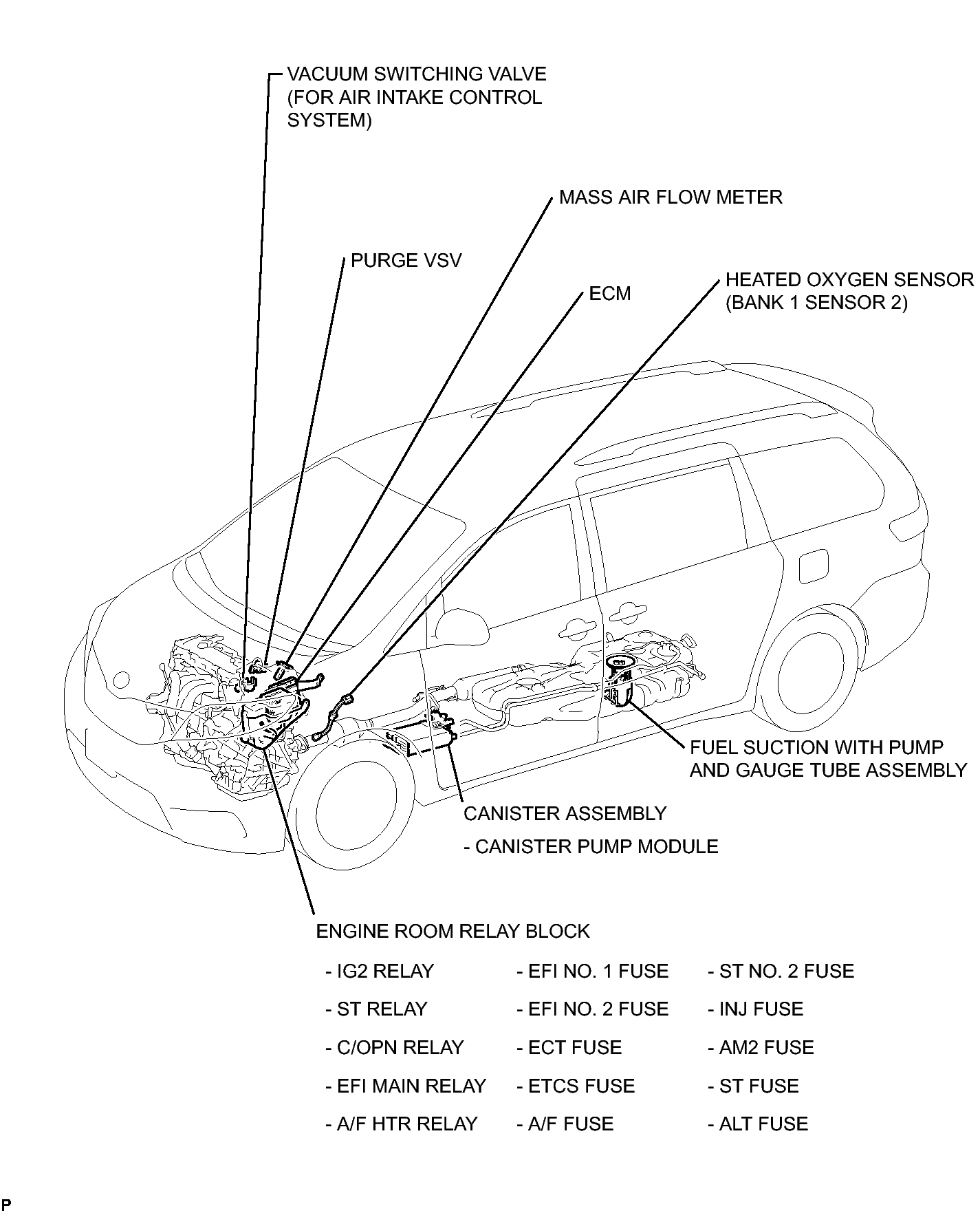

Fig 1: Engine Control System Components Location (1 Of 4)
GTY339543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

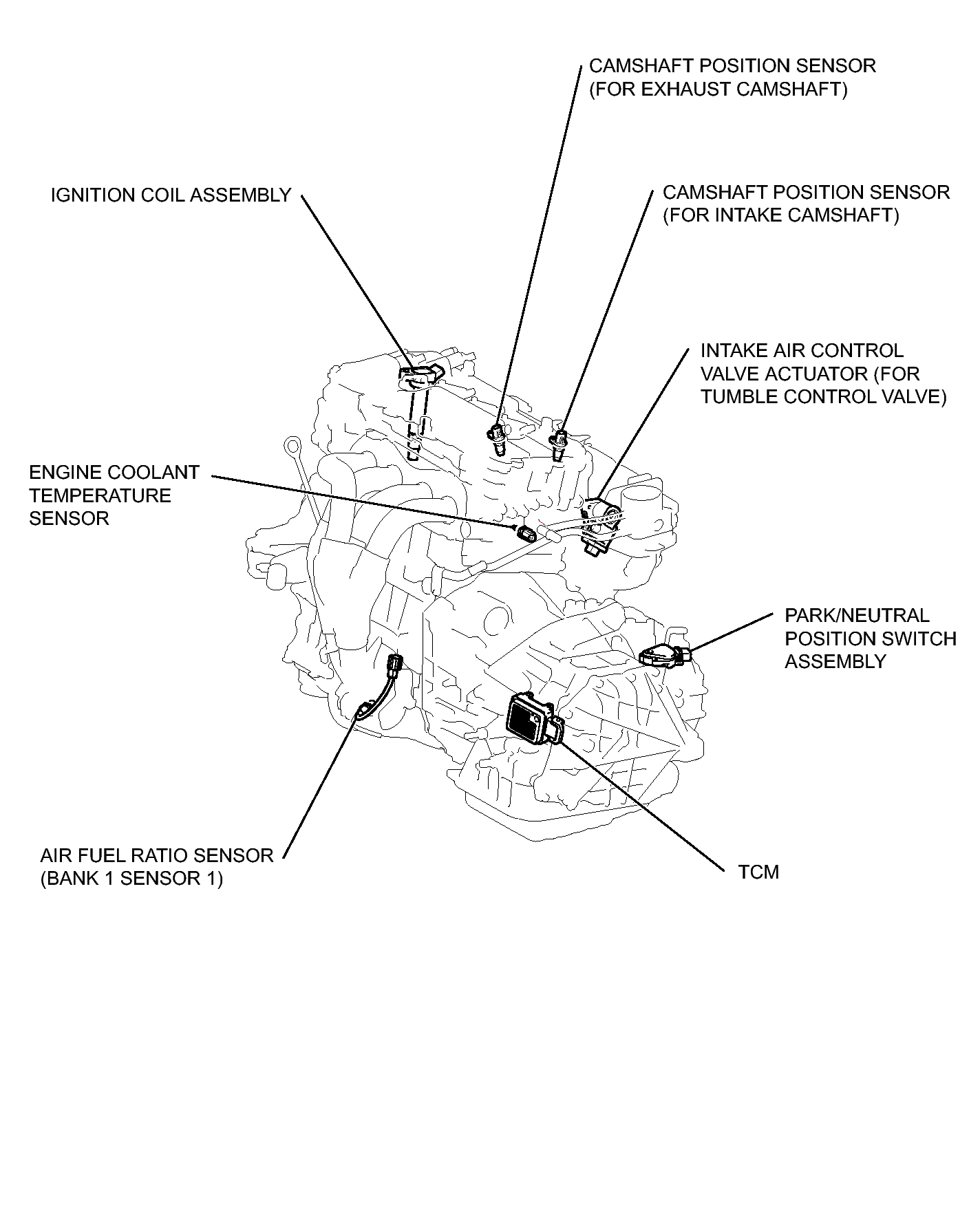

Fig 1: Engine Control System Components Location (2 Of 4)
GTY340032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

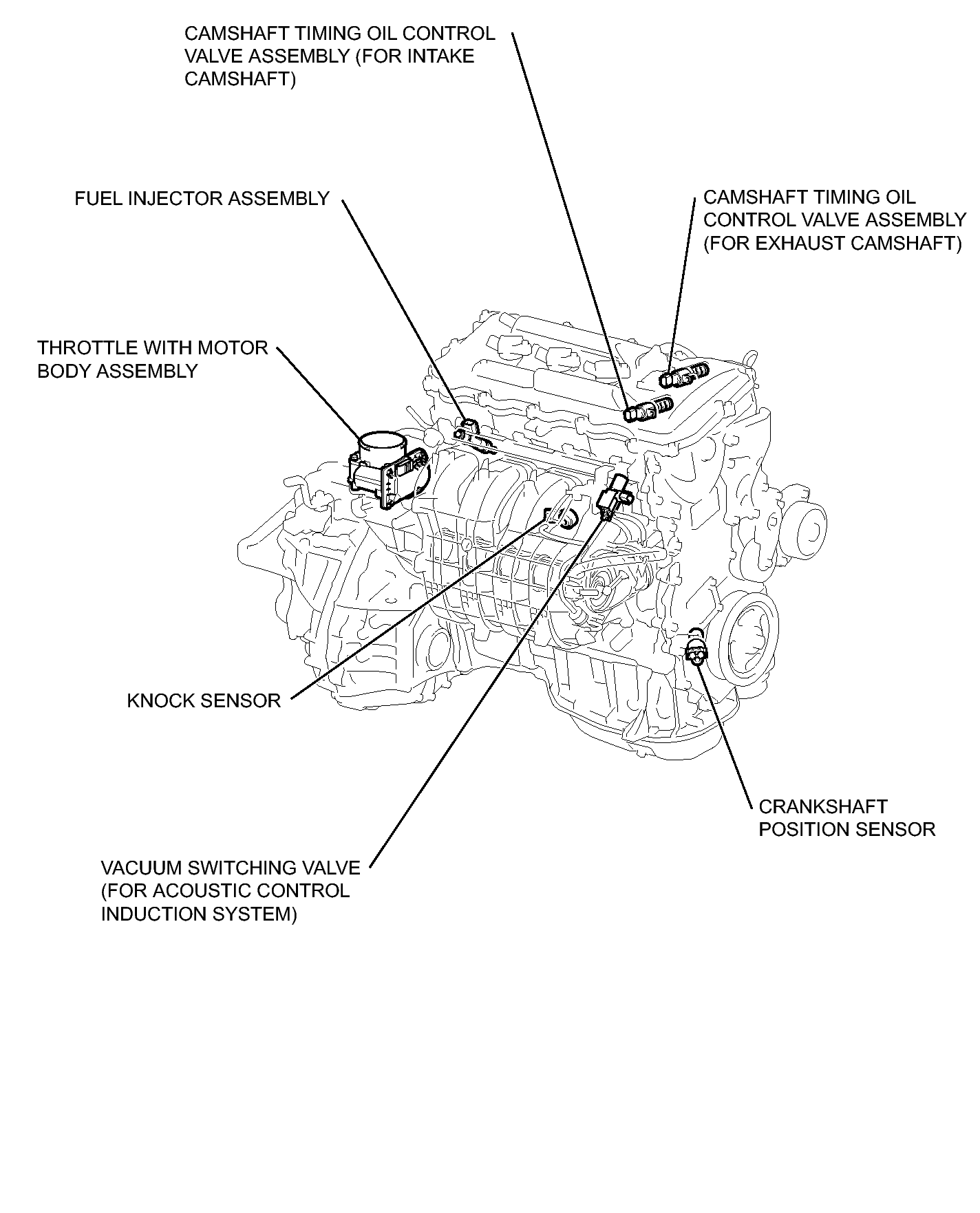

Fig 1: Engine Control System Components Location (3 Of 4)
GTY304890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

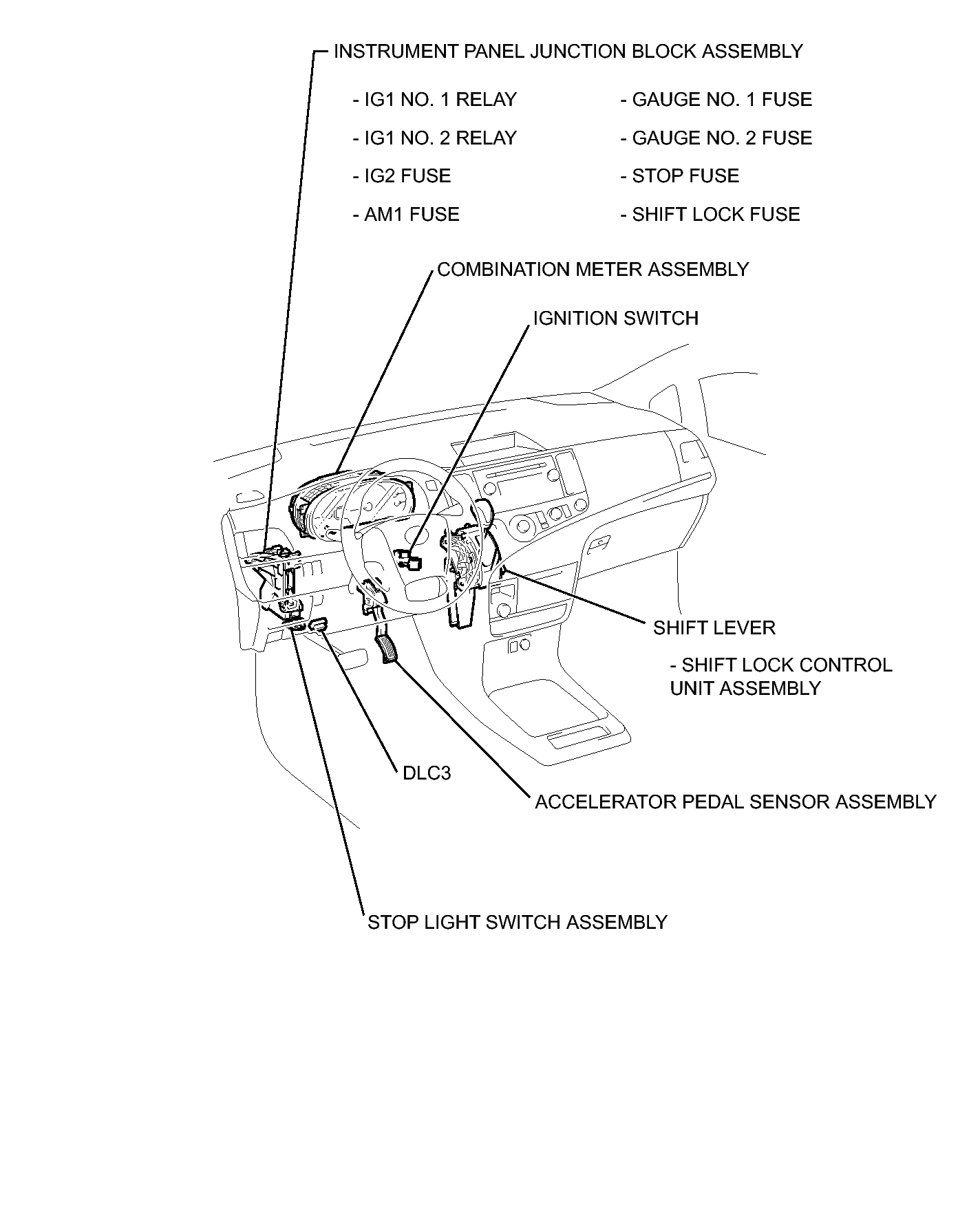

Fig 1: Engine Control System Components Location (4 Of 4)
GTY326917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
