Parts Location: Illustration

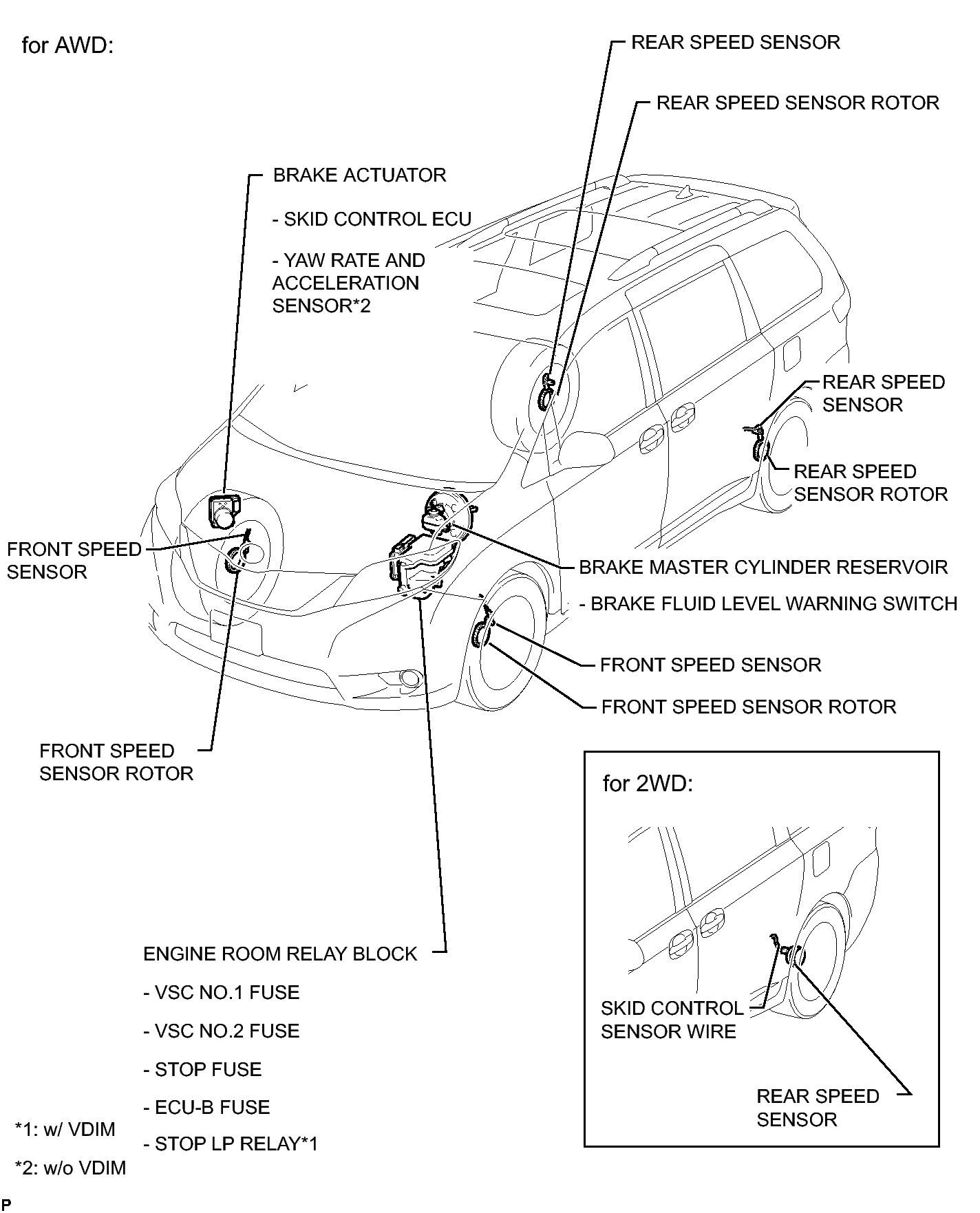

Fig 1: Vehicle Stability Control System Components Location (1 Of 2)
GTY296923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

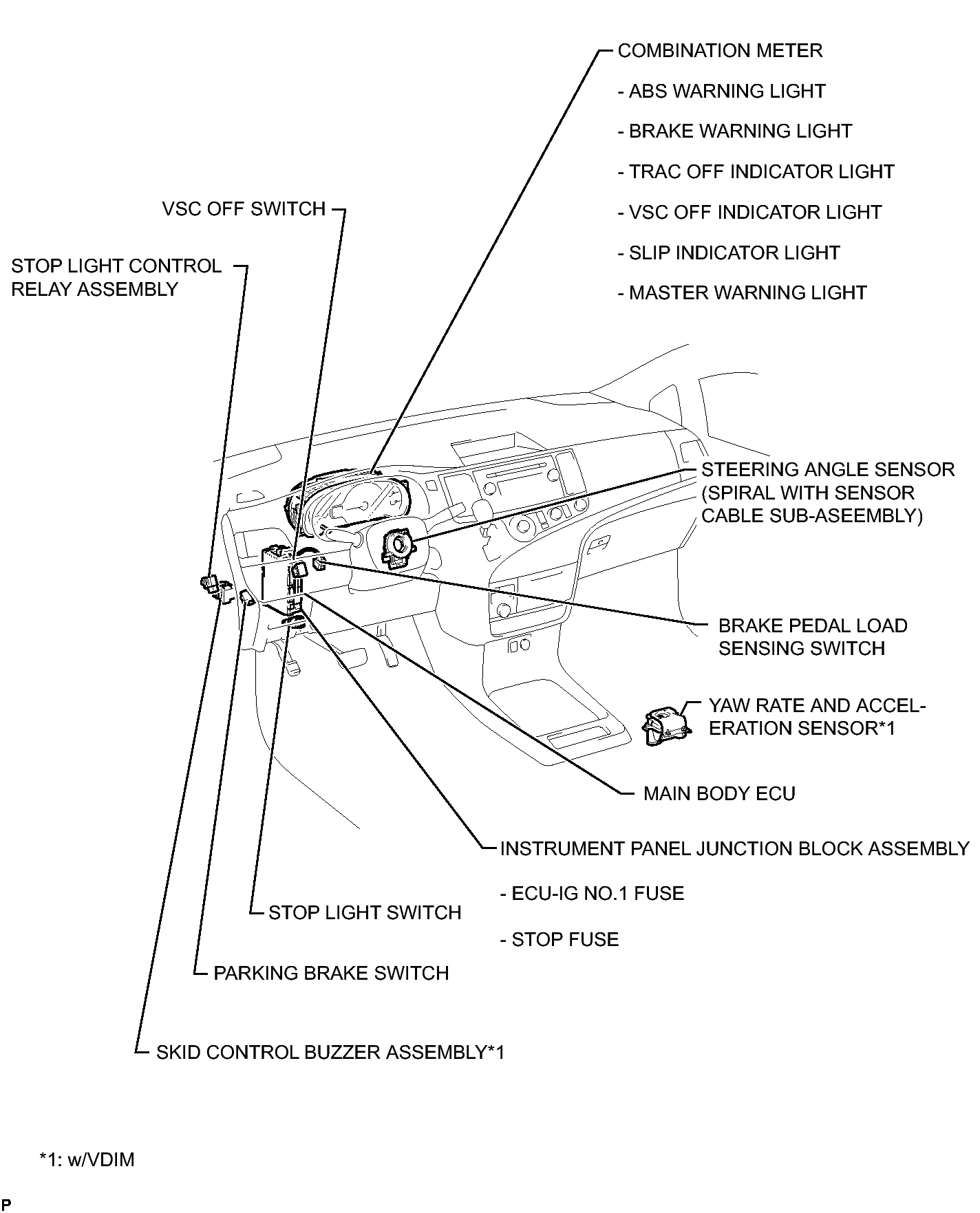

Fig 1: Vehicle Stability Control System Components Location (2 Of 2)
GTY299631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
