Brake Actuator: Components: Illustration

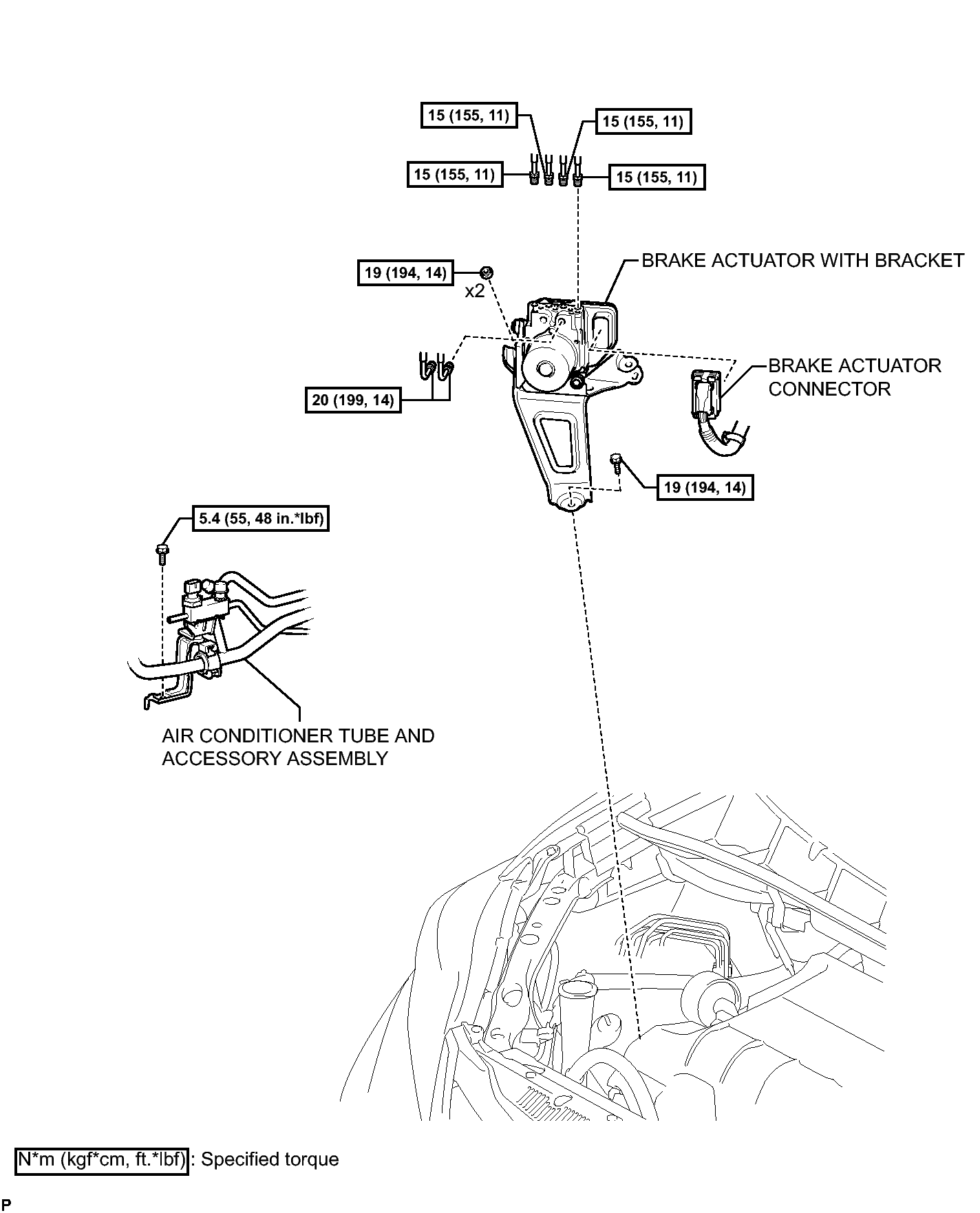

Fig 1: Brake Actuator Replacement Components With Torque Specifications (1 of 2)
GTY300452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

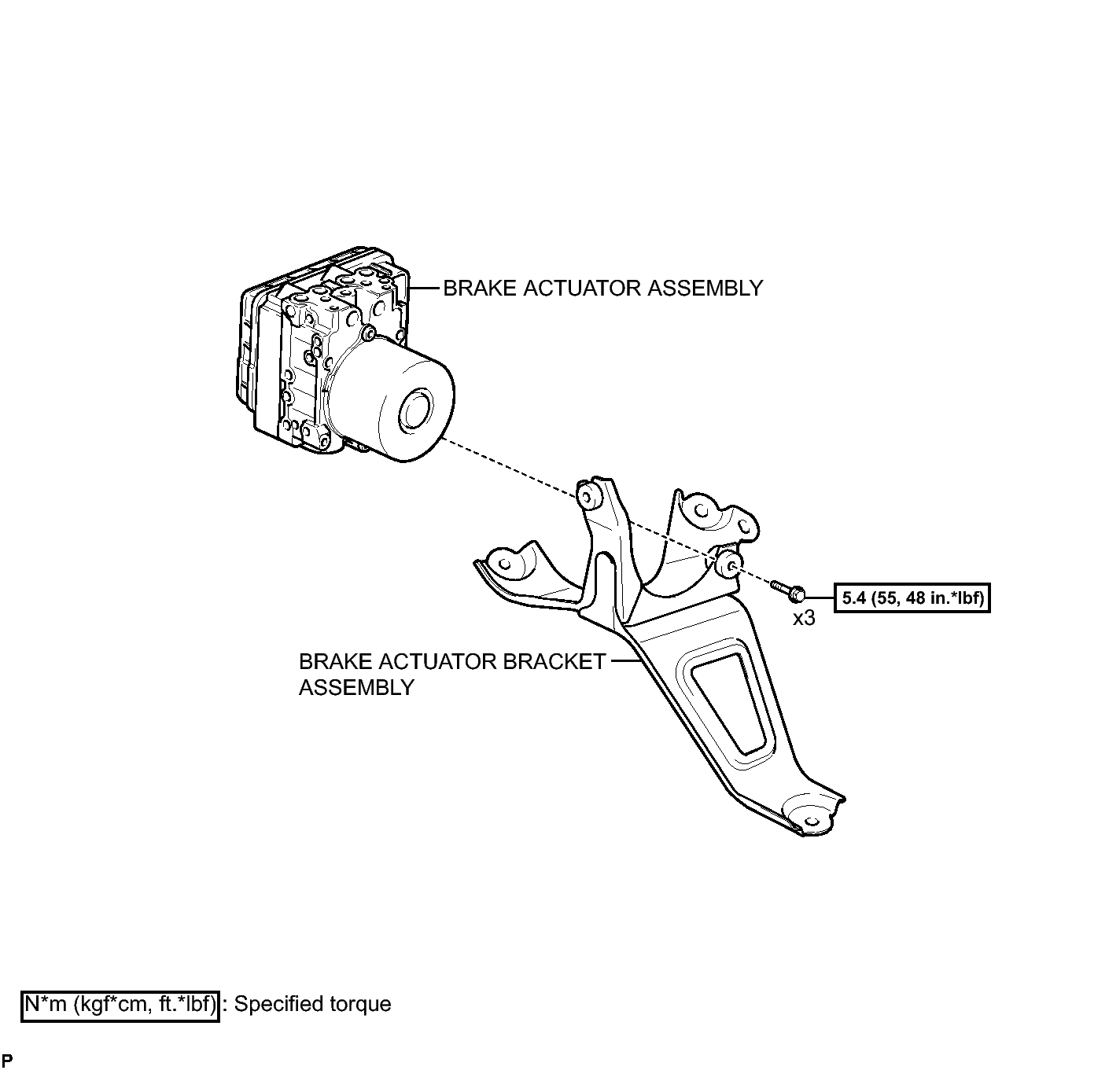

Fig 1: Brake Actuator Replacement Components With Torque Specifications (2 of 2)
GTY298297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
