Parts Location: Illustration

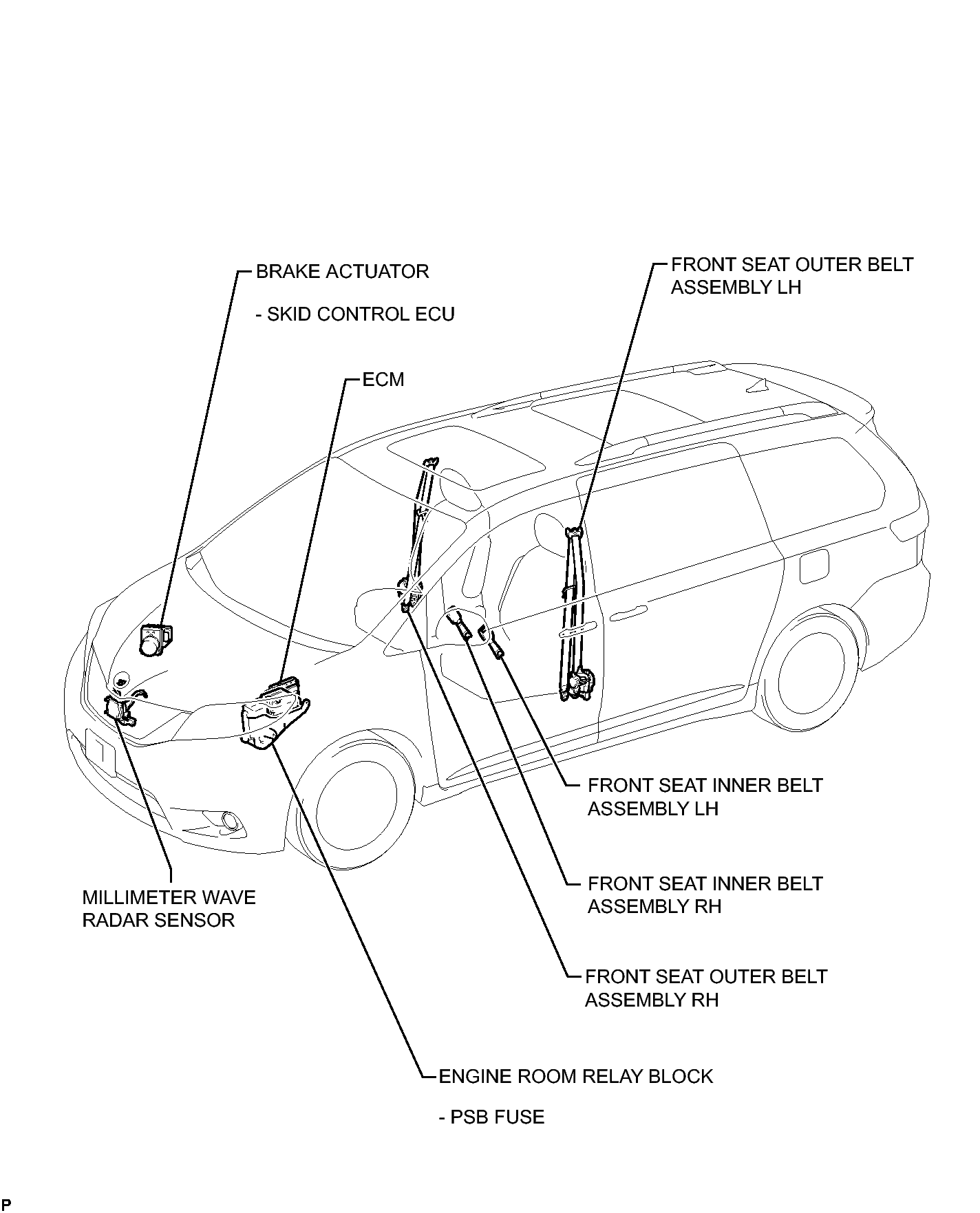

Fig 1: Pre-Collision System Components Location (1 Of 2)
GTY297937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

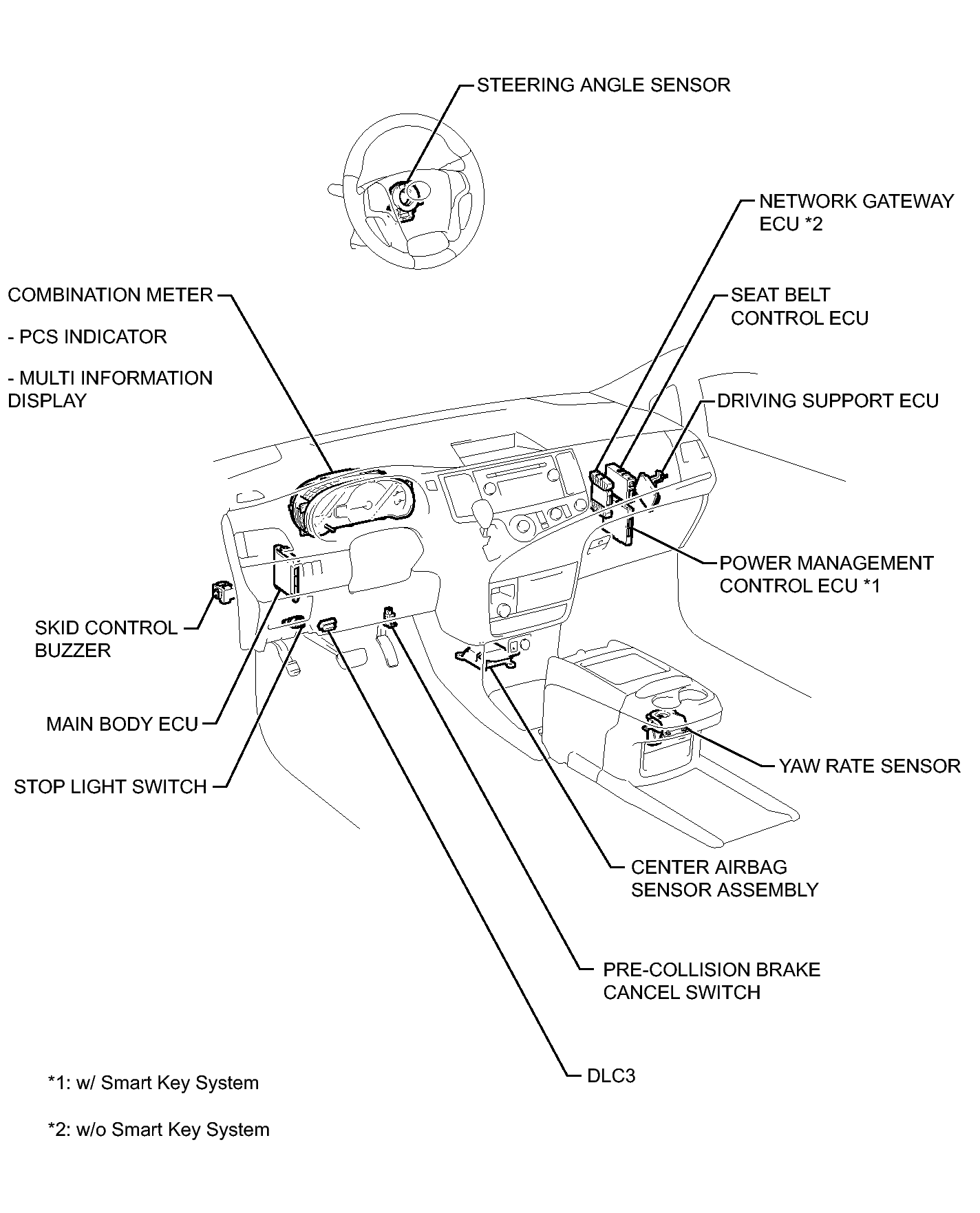

Fig 1: Pre-Collision System Components Location (2 Of 2)
GTY295304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
