Remote Control Mirror (w/o Seat Position Memory): Notes

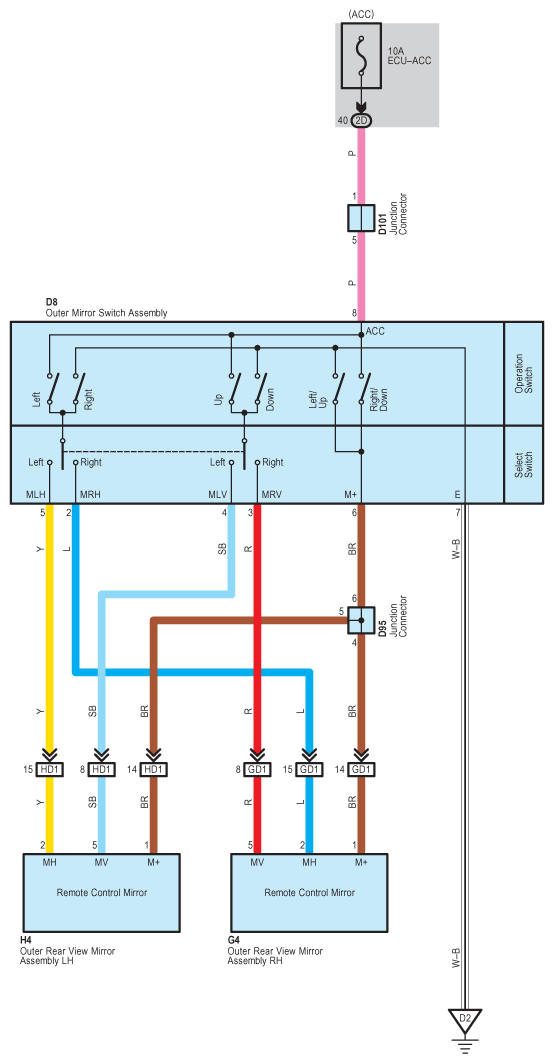

Fig 1: Remote Control Mirror Wiring Diagram (W/O Seat Position Memory)

G08846201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
