Ignition (1AR-FE): Notes

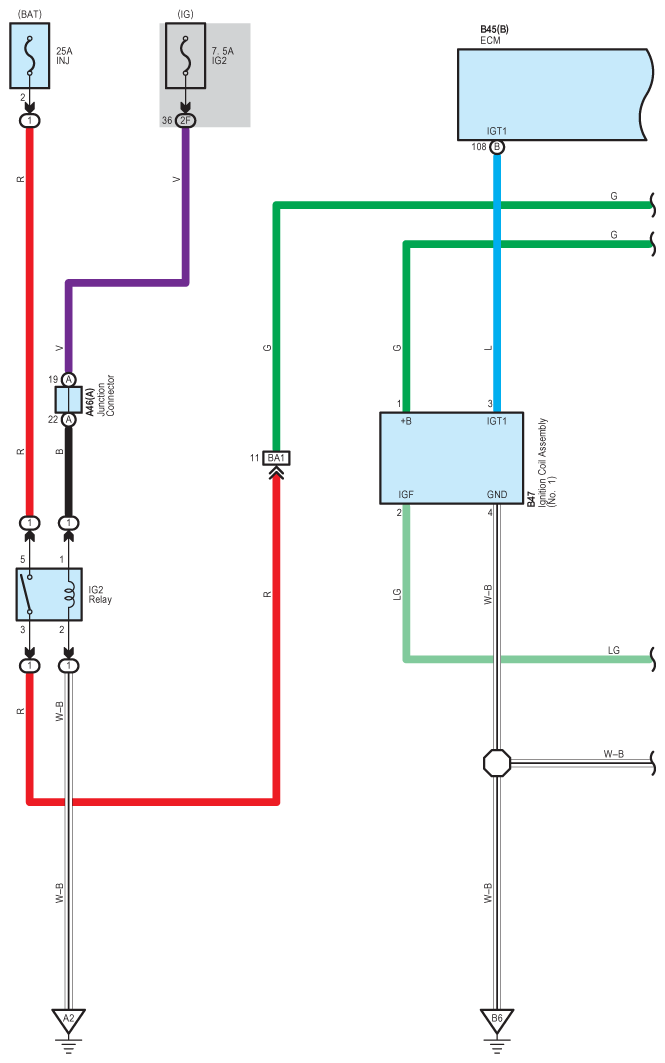

Fig 1: Ignition Wiring Diagram (1AR-FE; 1 Of 2)
G08846068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

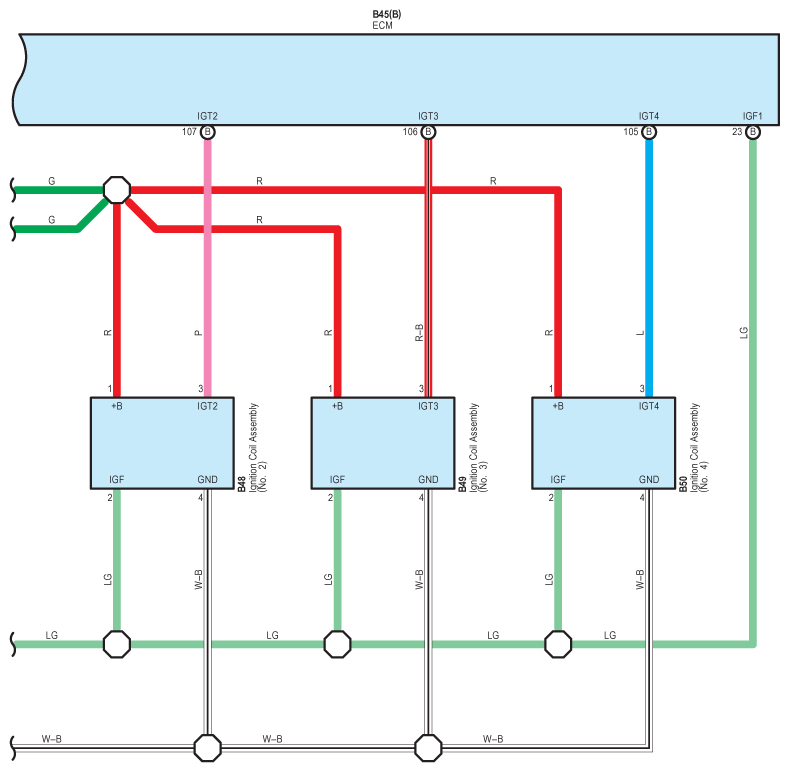

Fig 2: Ignition Wiring Diagram (1AR-FE; 2 Of 2)
G08846069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
