Shift Lock: Notes

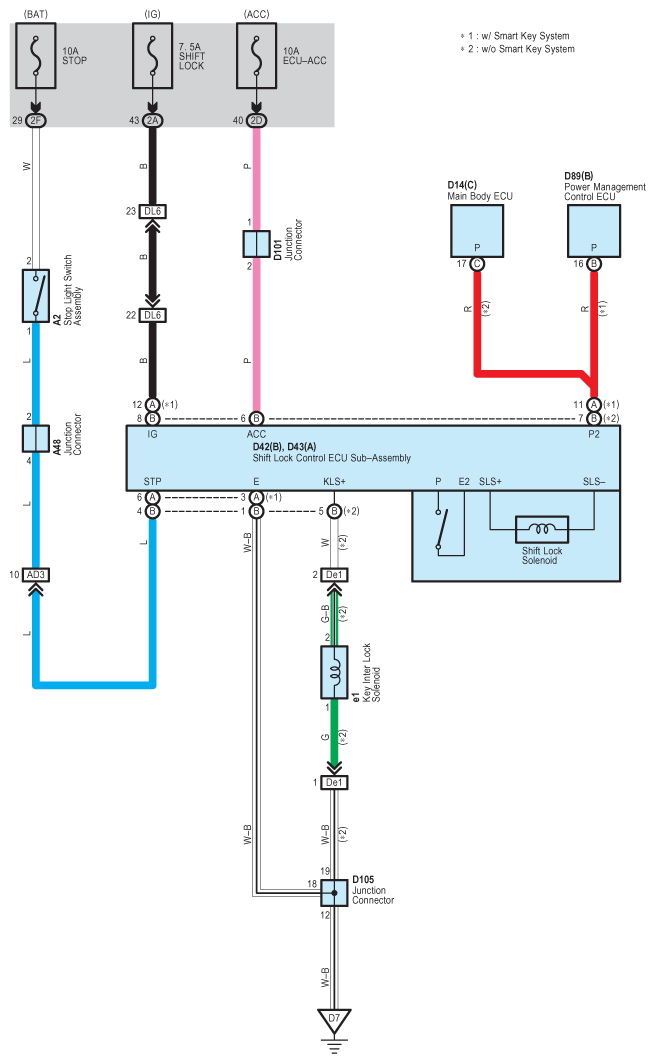

Fig 1: Shift Lock Wiring Diagram
G08846296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
