Key Reminder (w/o Smart Key System): Notes

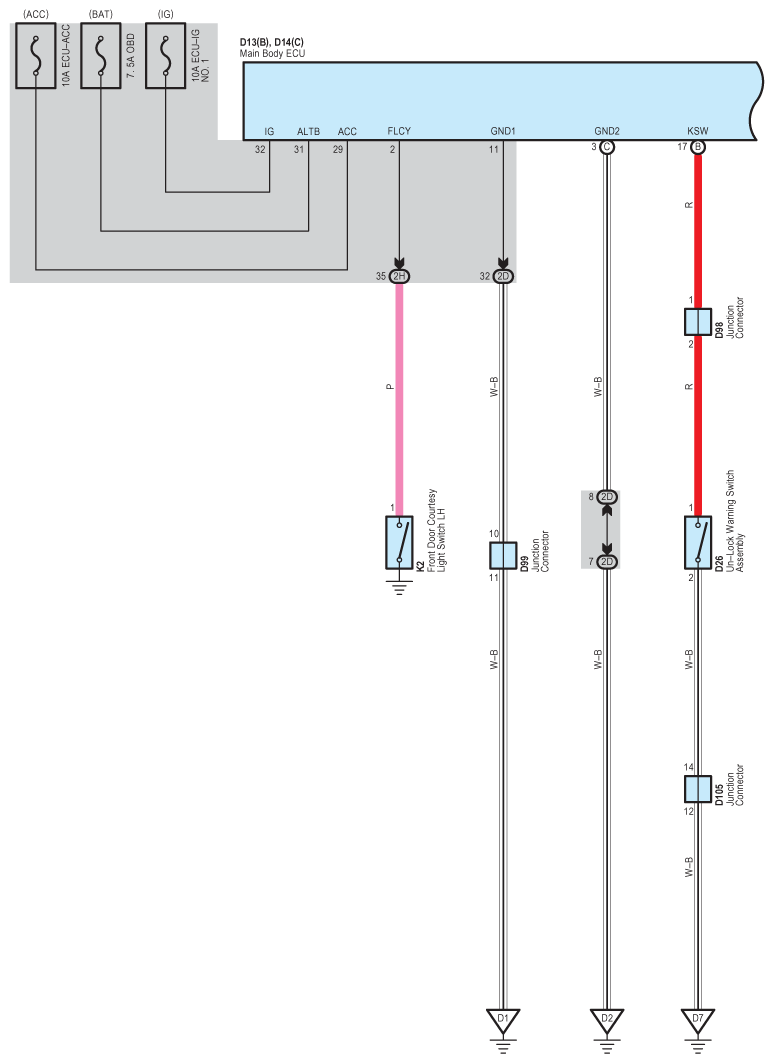

Fig 1: Key Reminder Wiring Diagram (W/O Smart Key System; 1 Of 2)
G08846187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

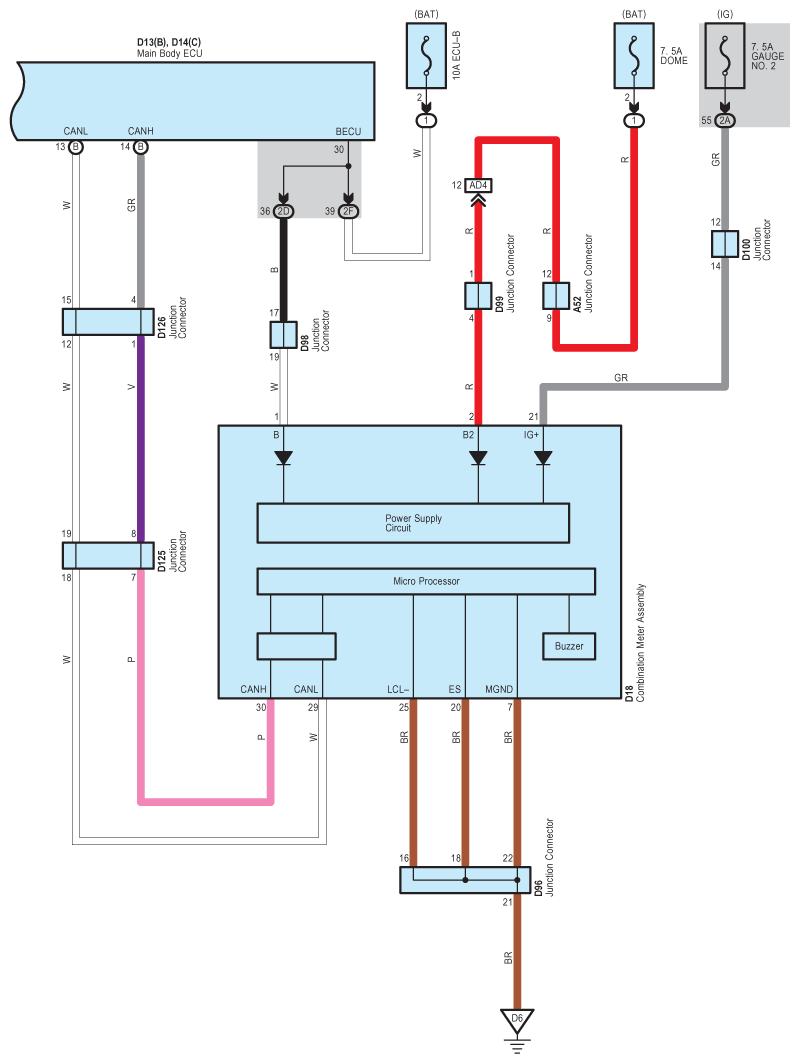

Fig 2: Key Reminder Wiring Diagram (W/O Smart Key System; 2 Of 2)
G08846188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
