Front Seat Side Airbag Assembly: Components: Illustration

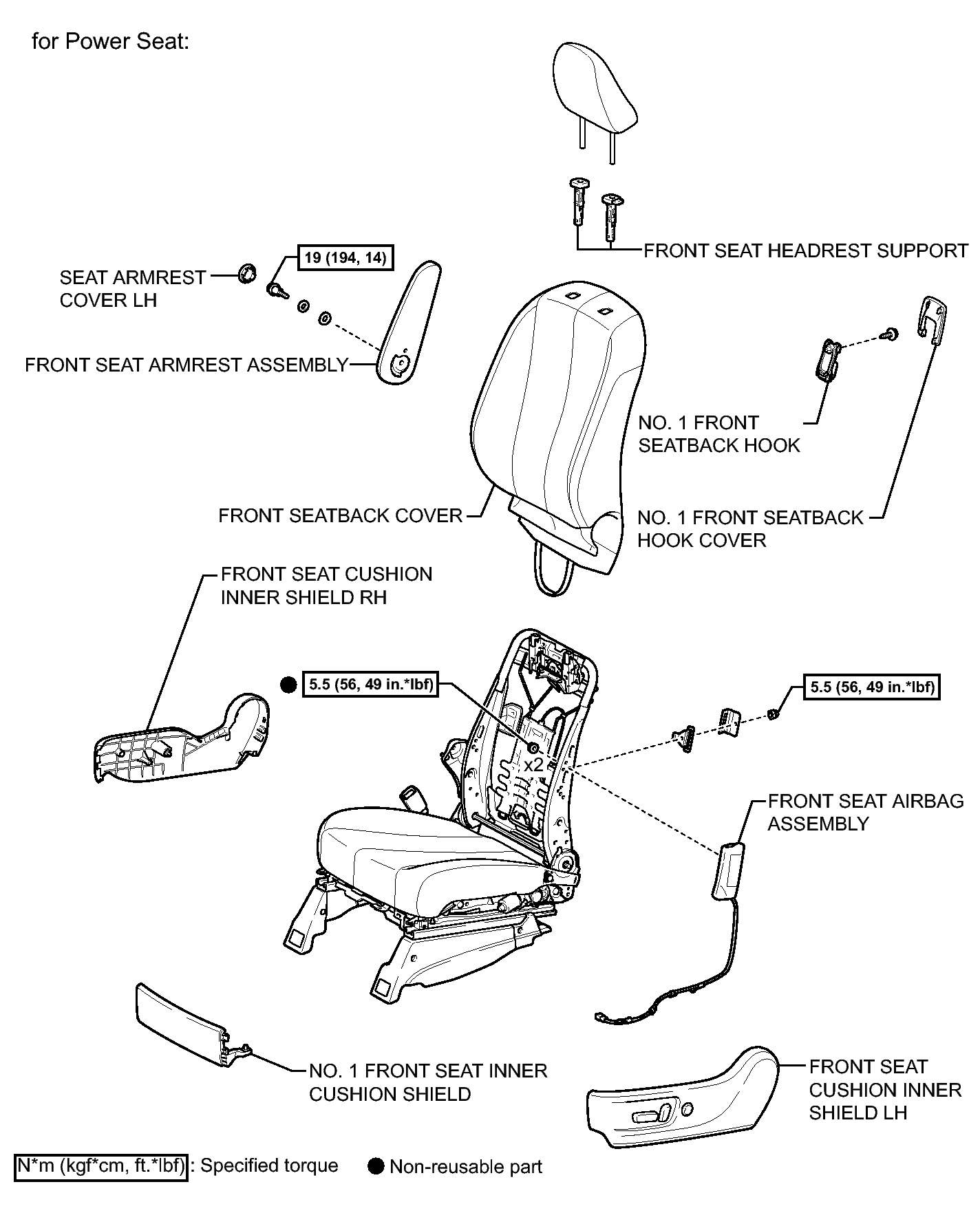

Fig 1: Front Seat Side Airbag Assembly Replacement Components With Torque Specifications (Power Seat) (1 Of 2)
GTY298244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

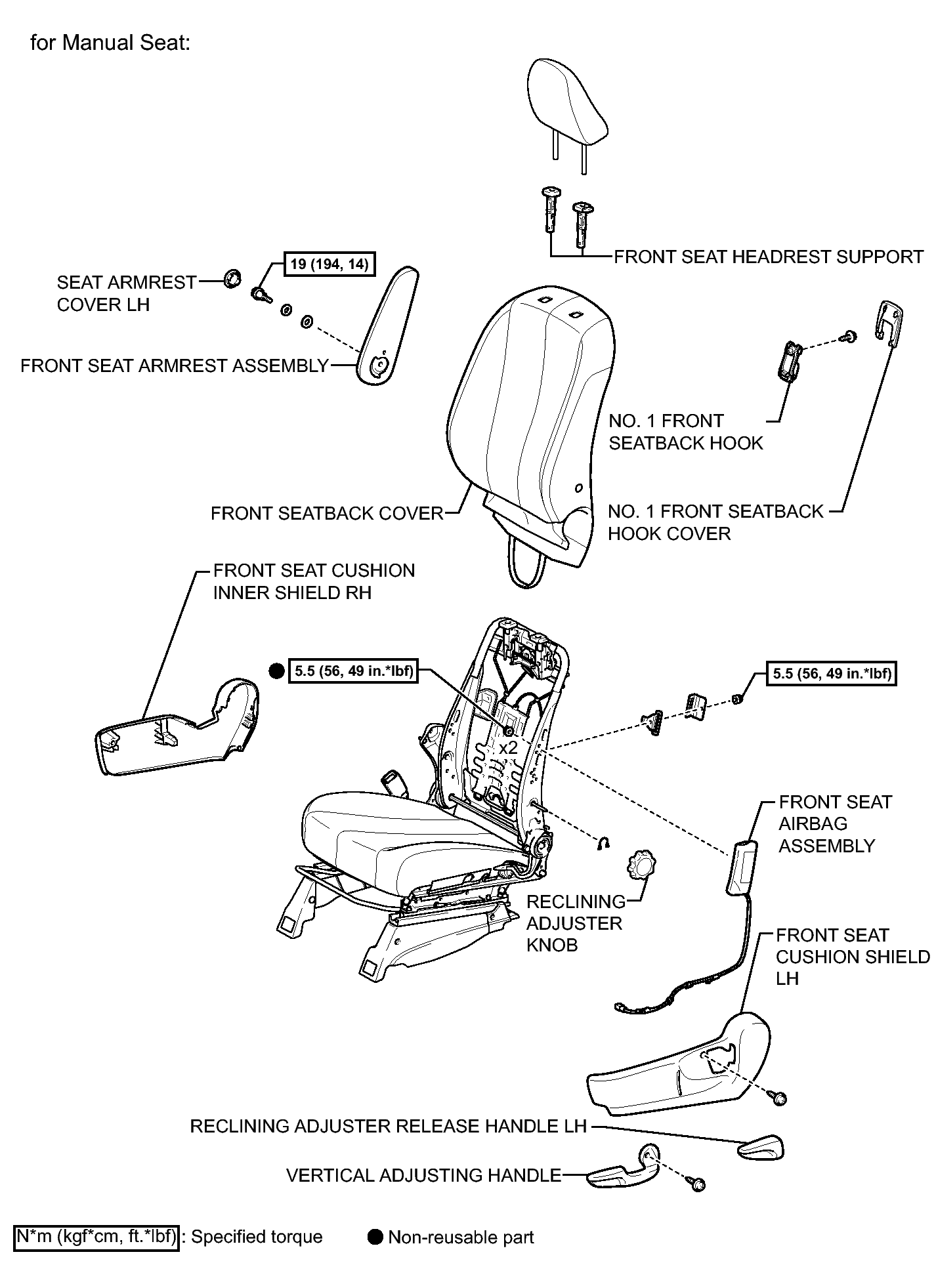

Fig 1: Front Seat Side Airbag Assembly Replacement Components With Torque Specifications (Manual Seat) (2 Of 2)
GTY295162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
