Front Passenger Airbag Assembly: Removal: Removal

WARNING:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing. Refer to PRECAUTION .

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  2. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to REMOVAL

  3. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

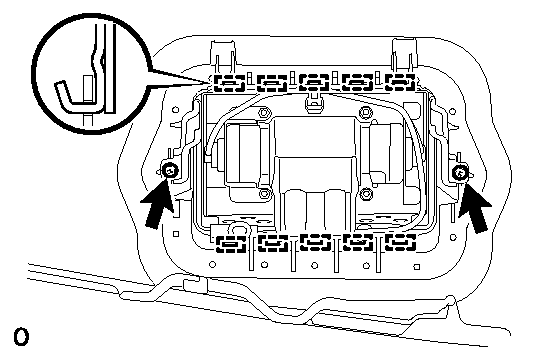

    Fig 1: Identifying Front Passenger Airbag Assembly & Fasteners
    GTY302778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws.
    2. Disengage the 10 hooks and remove the front passenger airbag.
  4. REMOVE NO. 2 INSTRUMENT PANEL WIRE
    1. Disengage the 2 clamps.

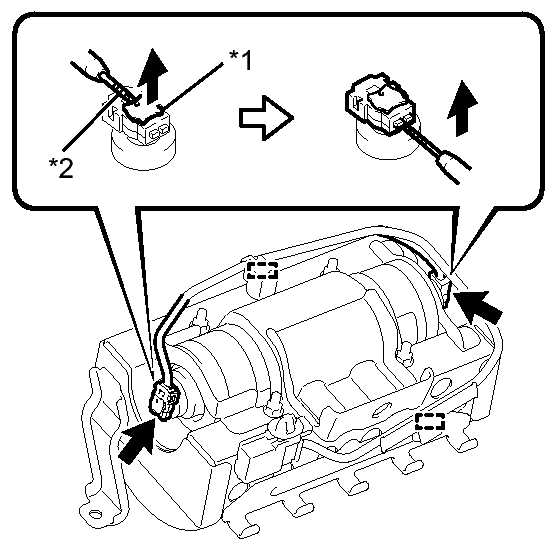

      Fig 2: Removing No. 2 Instrument Panel Wire & Airbag Connectors Using A Screwdriver
      GTY307615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Locking Button
      *2 Protective Tape
    2. Using a thin-bladed screwdriver with its wrapped with protective tape, release the locking button.
    3. Using a thin-bladed screwdriver with its wrapped with protective tape, disconnect the 2 airbag connectors and remove the No. 2 instrument panel wire.
