VACUUM SWITCHING VALVE (for Engine Mounting): Components: Illustration

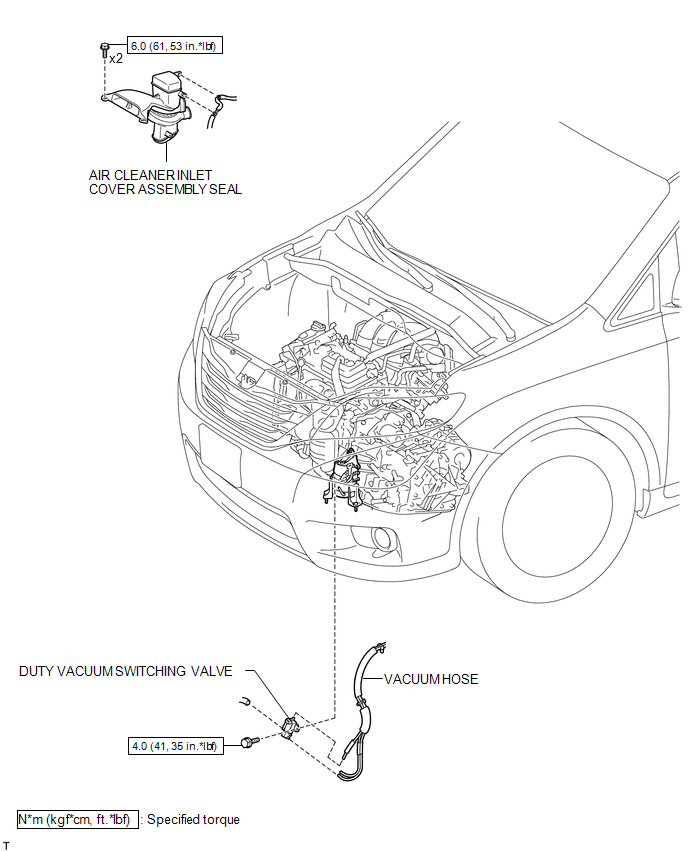

Fig 1: Vacuum Switching Valve Replacement Components With Torque Specifications

GTY303866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
