Throttle Body: Components: Illustration

Fig 1: Throttle Body Replacement Components With Torque Specifications (1 of 2)
GTY302724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

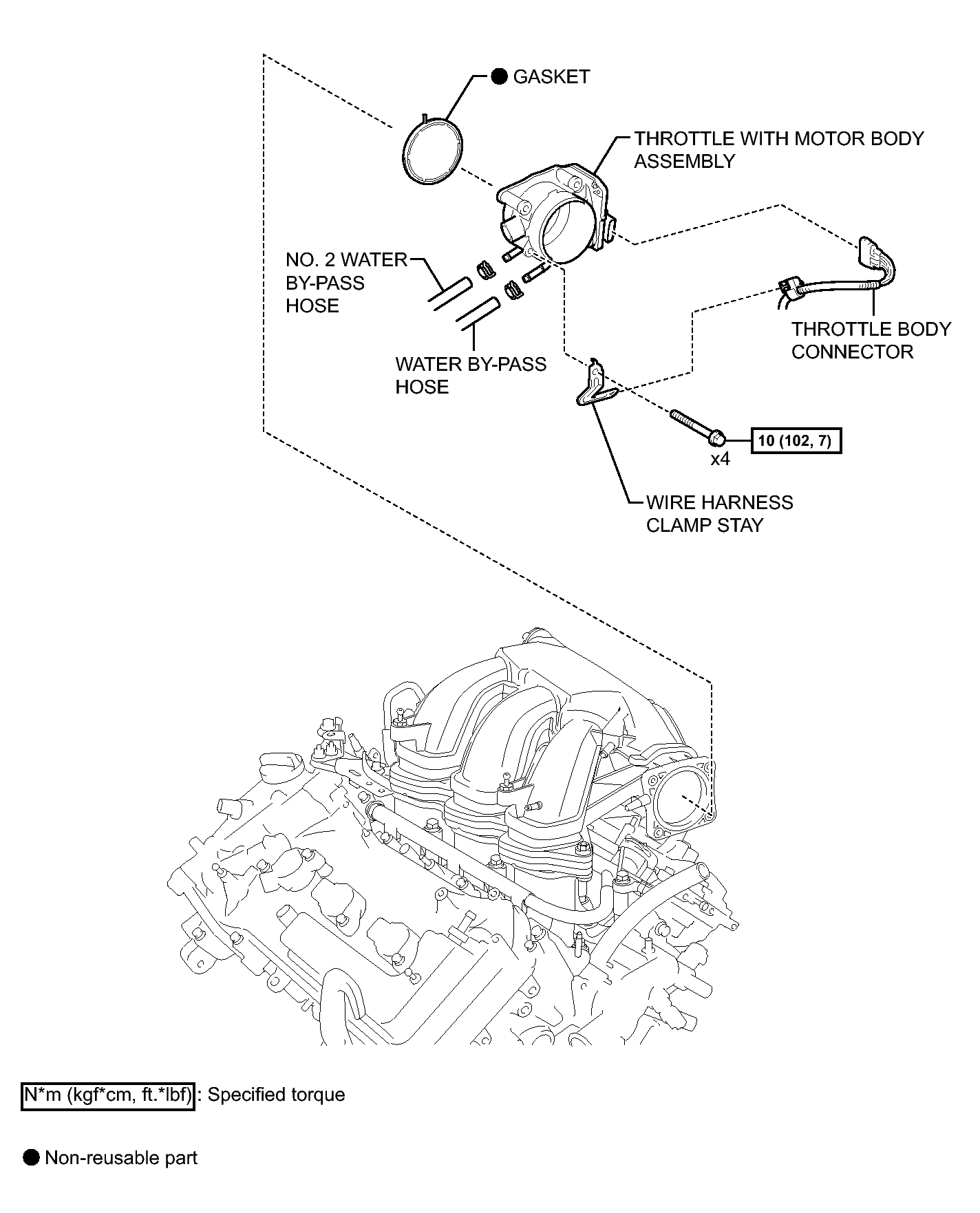

Fig 1: Throttle Body Replacement Components With Torque Specifications (2 of 2)
GTY306320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
