Crankshaft Position Sensor: Components: Illustration

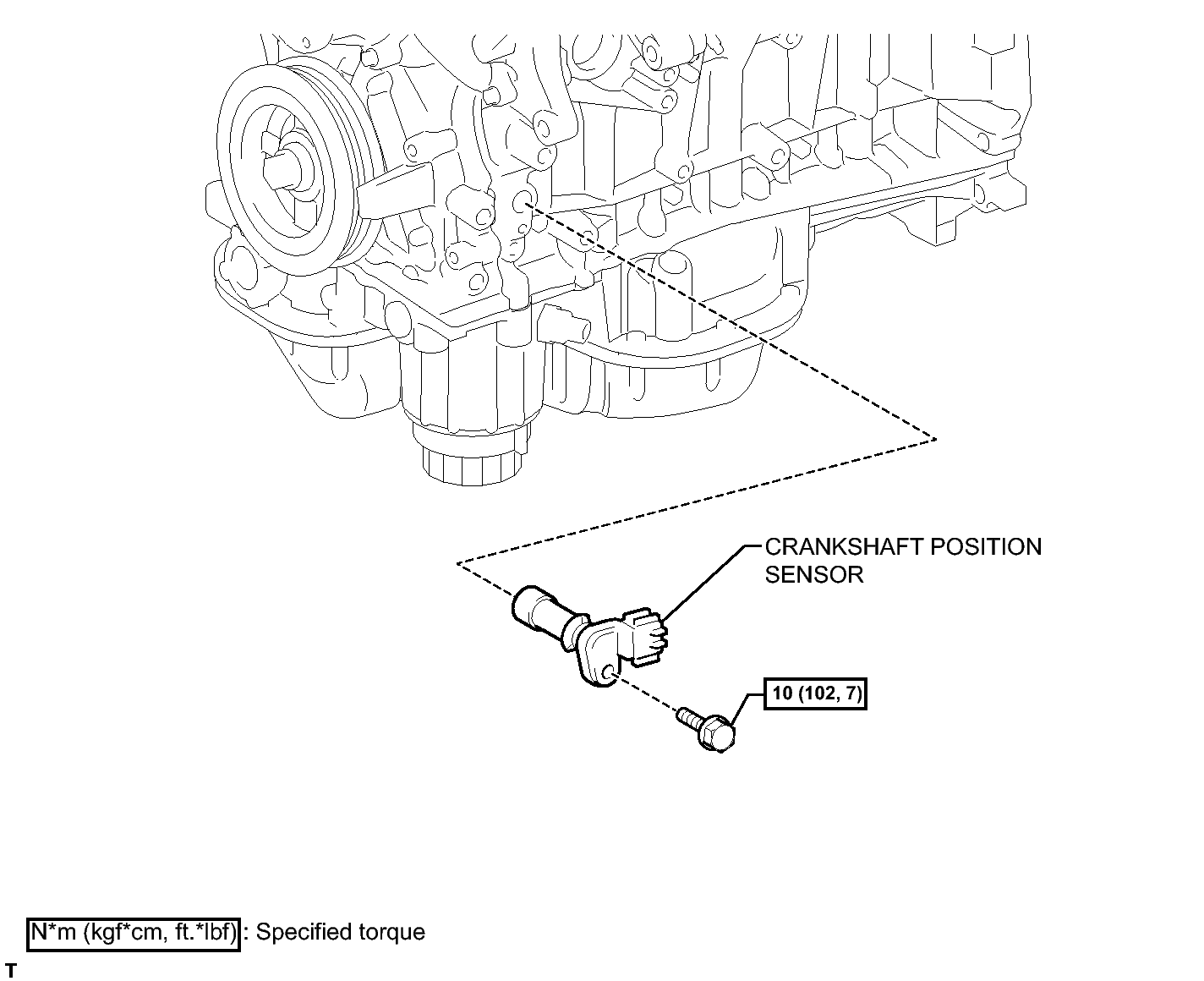

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications

GTY302125

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
