: Ground Points

Code	See	Ground Points Location
A1	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS (2GR-FE)	Front Fender Apron LH
A1	1AR-FE
A2	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS (2GR-FE)
A2	1AR-FE
D1	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Cowl Side Panel LH
D2	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Instrument Panel Rainforcement
D7	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Instrument Panel Brace LH
G1	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Front Door Inner Panel RH
H1	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Front Door Inner Panel LH

Code	See	Ground Points Location
K2	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Quarter Wheel House Panel LH
L2	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Quarter Wheel House Panel RH
L4	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Roof Side Inner Panel RH
W1	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Back Door Panel

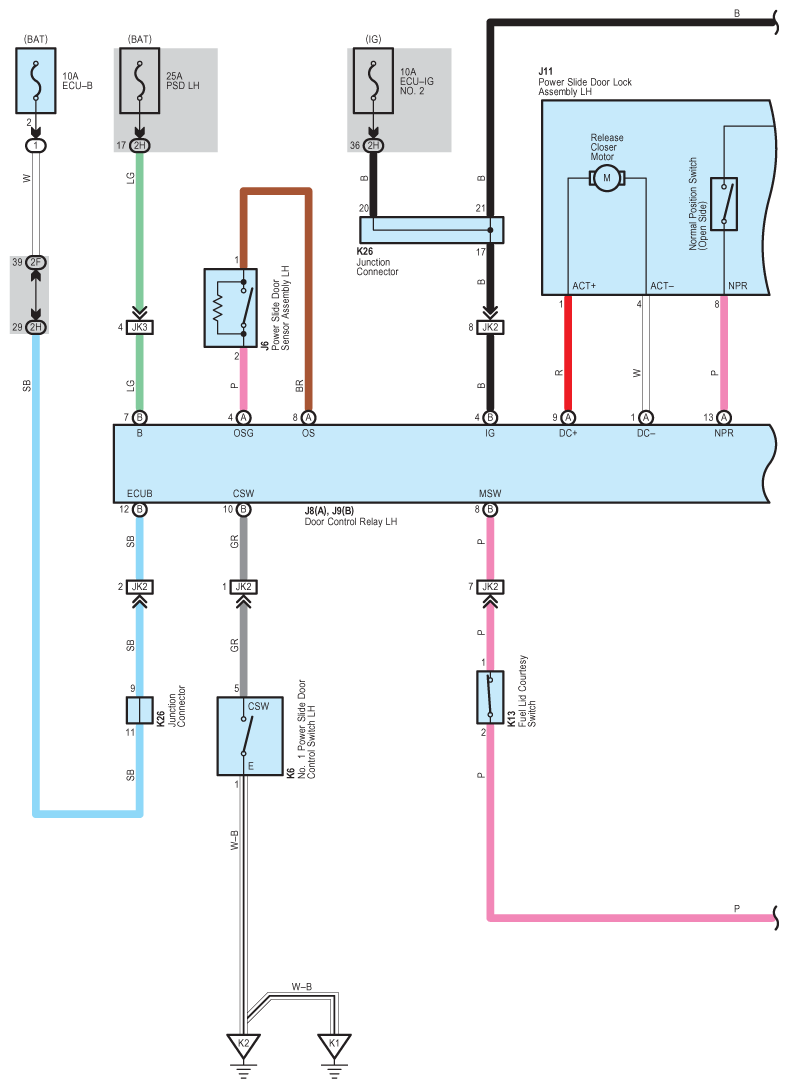

Fig 1: Power Slide Door Wiring Diagram (1 Of 10)

G08846227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

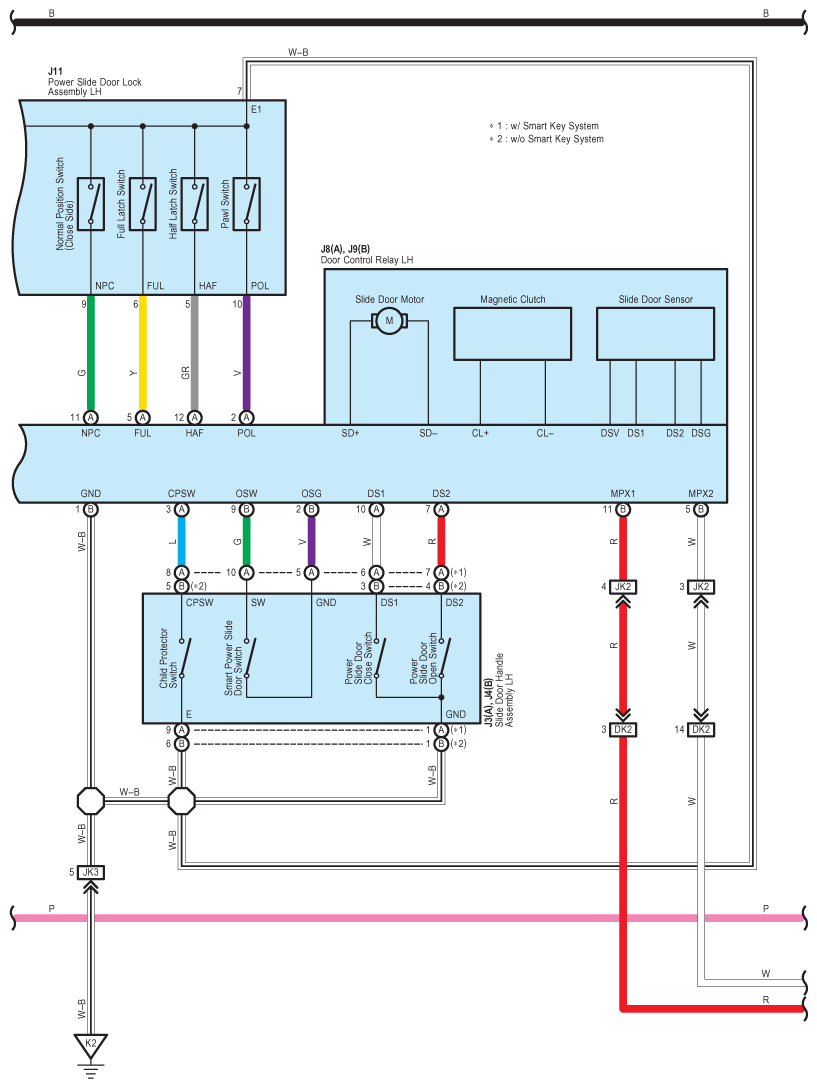

Fig 2: Power Slide Door Wiring Diagram (2 Of 10)

G08846228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

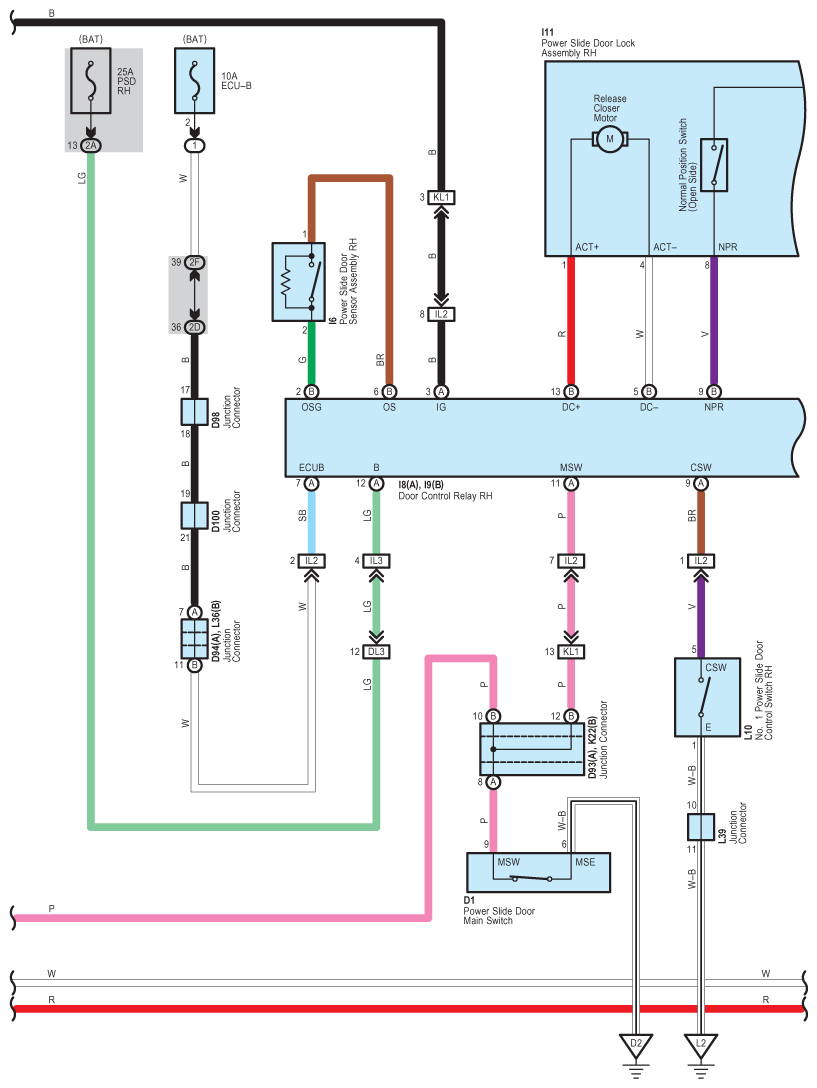

Fig 3: Power Slide Door Wiring Diagram (3 Of 10)

G08846229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

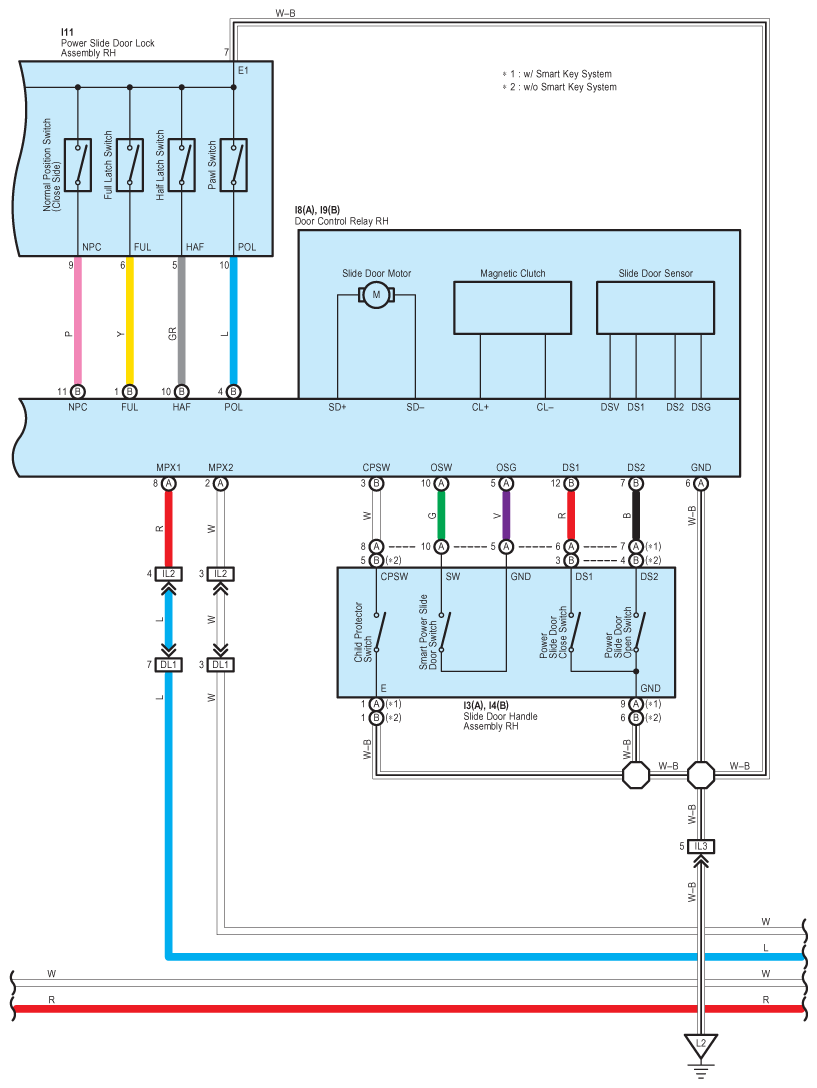

Fig 4: Power Slide Door Wiring Diagram (4 Of 10)

G08846230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

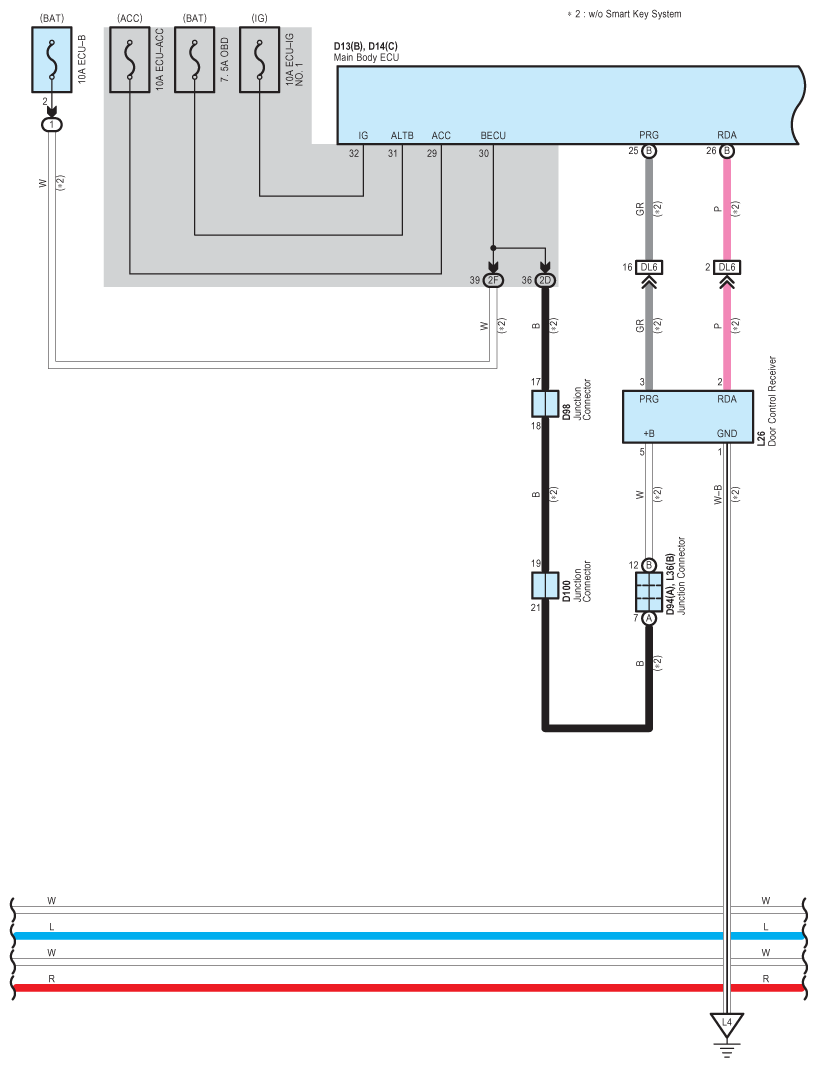

Fig 5: Power Slide Door Wiring Diagram (5 Of 10)

G08846231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

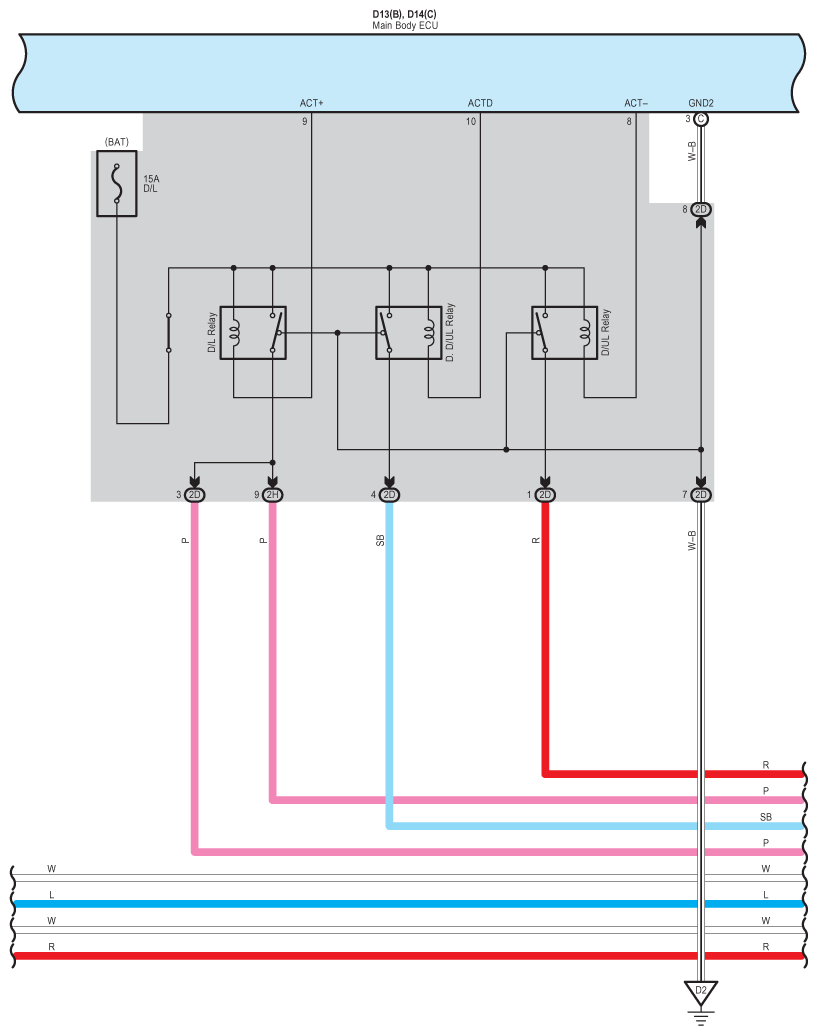

Fig 6: Power Slide Door Wiring Diagram (6 Of 10)

G08846232

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

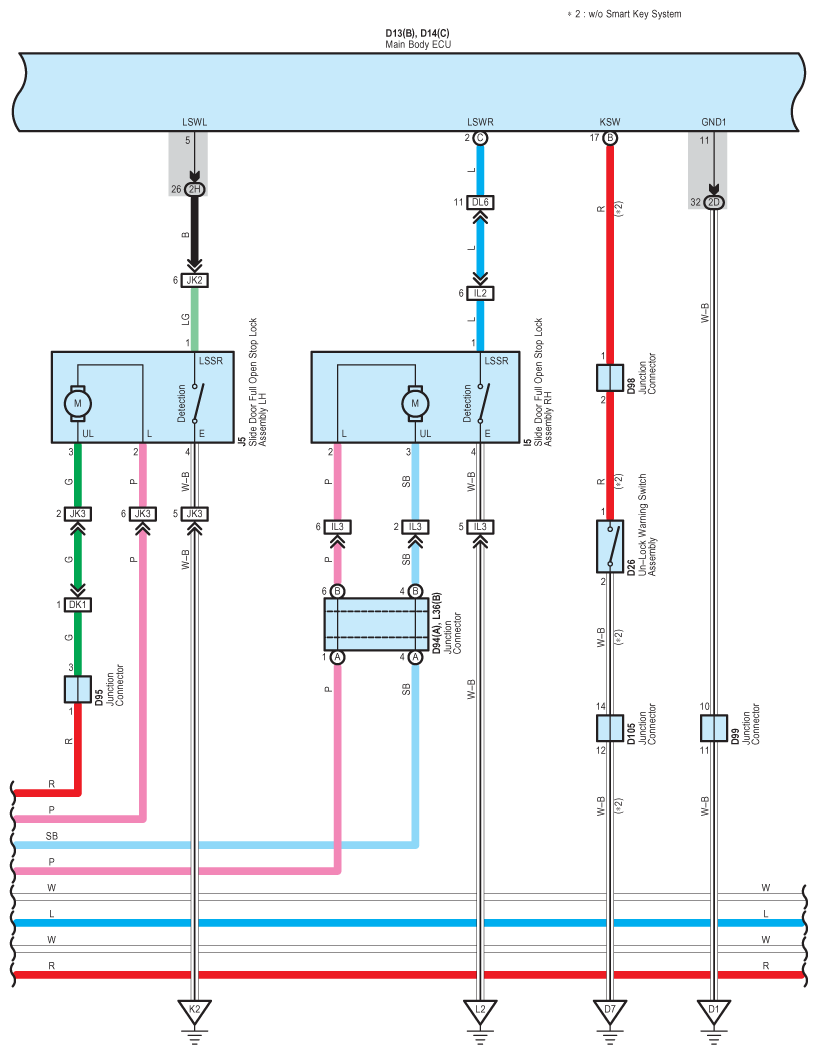

Fig 7: Power Slide Door Wiring Diagram (7 Of 10)

G08846233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

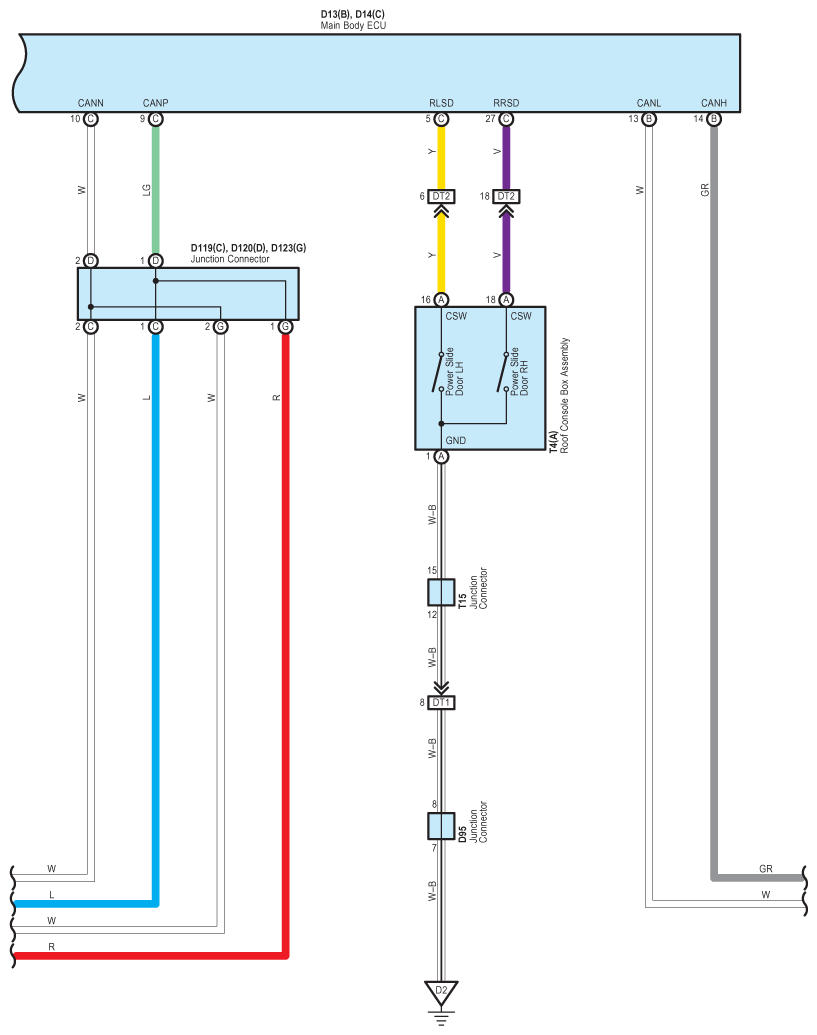

Fig 8: Power Slide Door Wiring Diagram (8 Of 10)

G08846234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

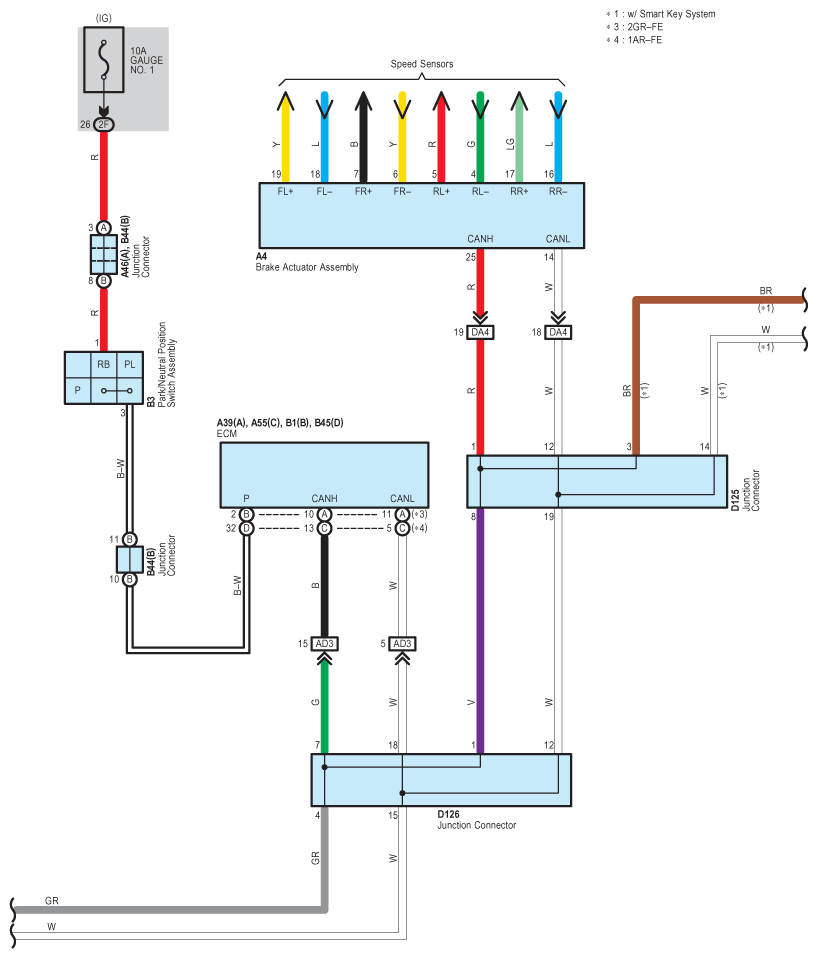

Fig 9: Power Slide Door Wiring Diagram (9 Of 10)

G08846235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

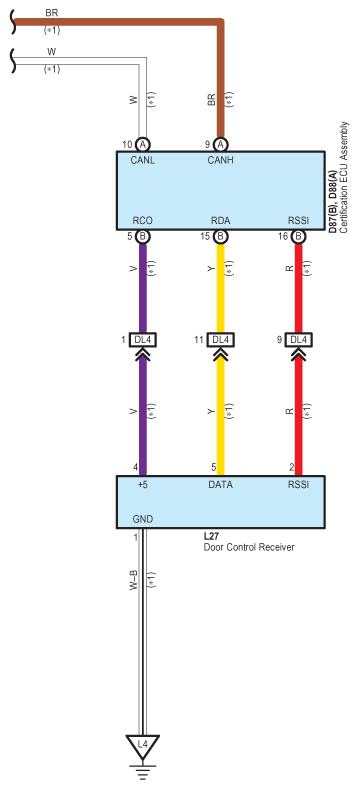

Fig 10: Power Slide Door Wiring Diagram (10 Of 10)

G08846236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Code	See	Ground Points Location
D1	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Cowl Side Panel LH
D2	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Instrument Panel Rainforcement
D7	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Instrument Panel Brace LH
K1	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Under Front Seat LH
K2	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Quarter Wheel House Panel LH
L2	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Quarter Wheel House Panel RH
L4	: LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Roof Side Inner Panel RH
