Power Seat (Driver's Seat w/Seat Position Memory): Notes

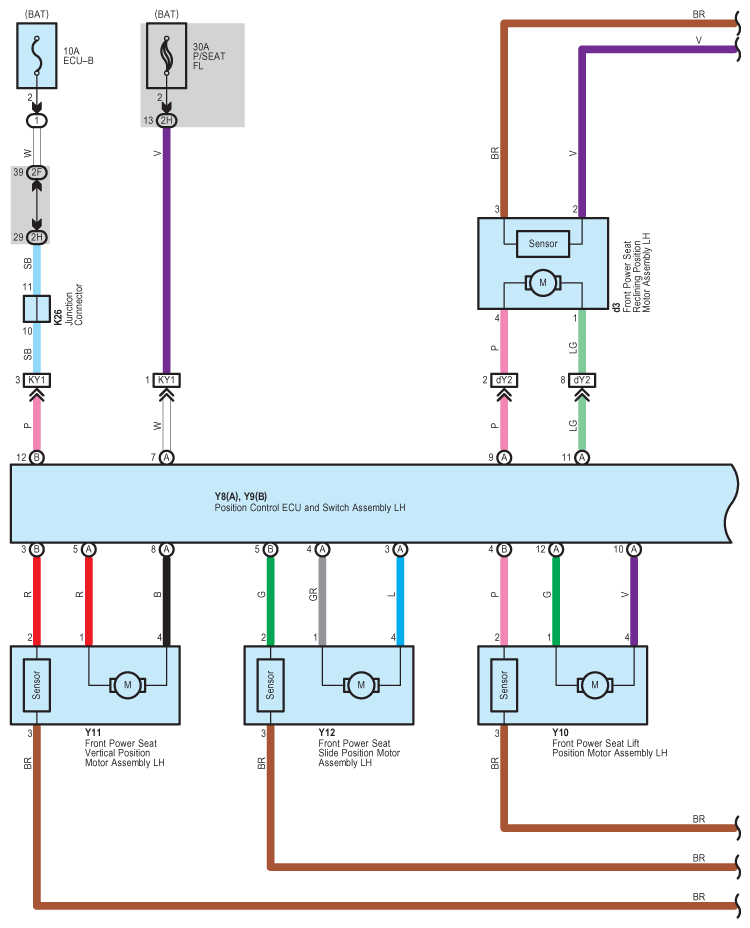

Fig 1: Power Seat Wiring Diagram (Driver's Seat W/ Seat Position Memory; 1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

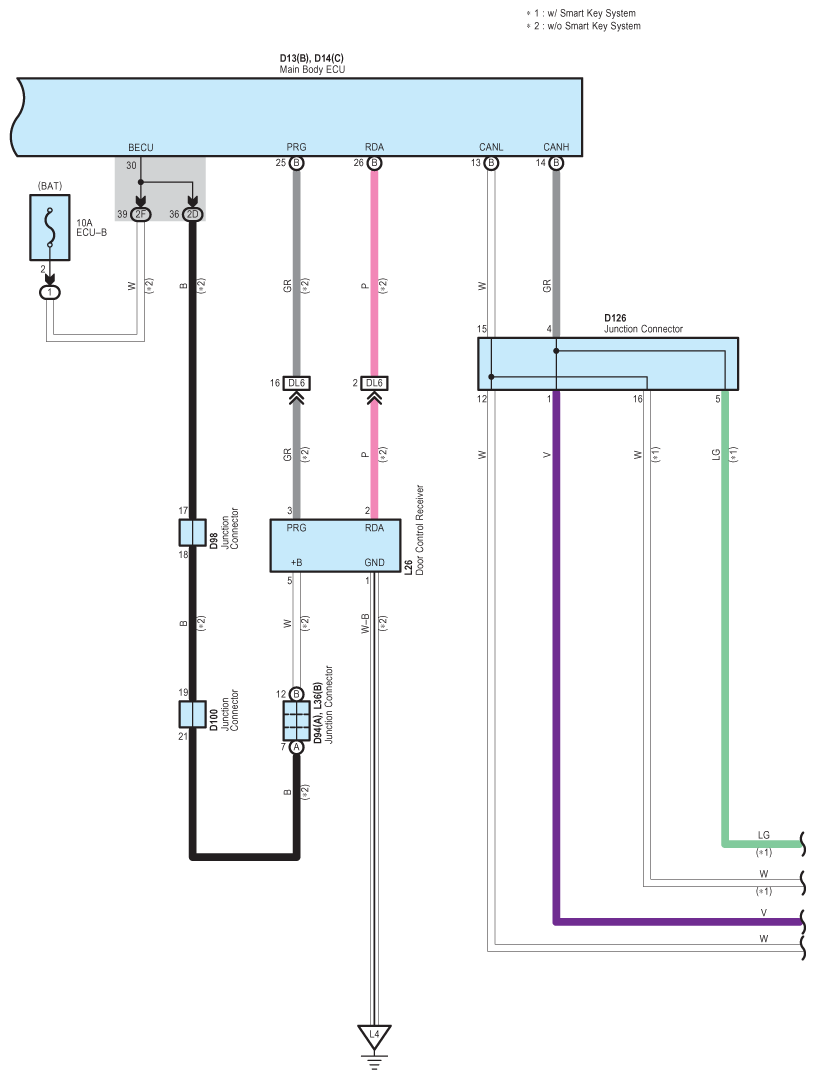

Fig 2: Power Seat Wiring Diagram (Driver's Seat W/ Seat Position Memory; 2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

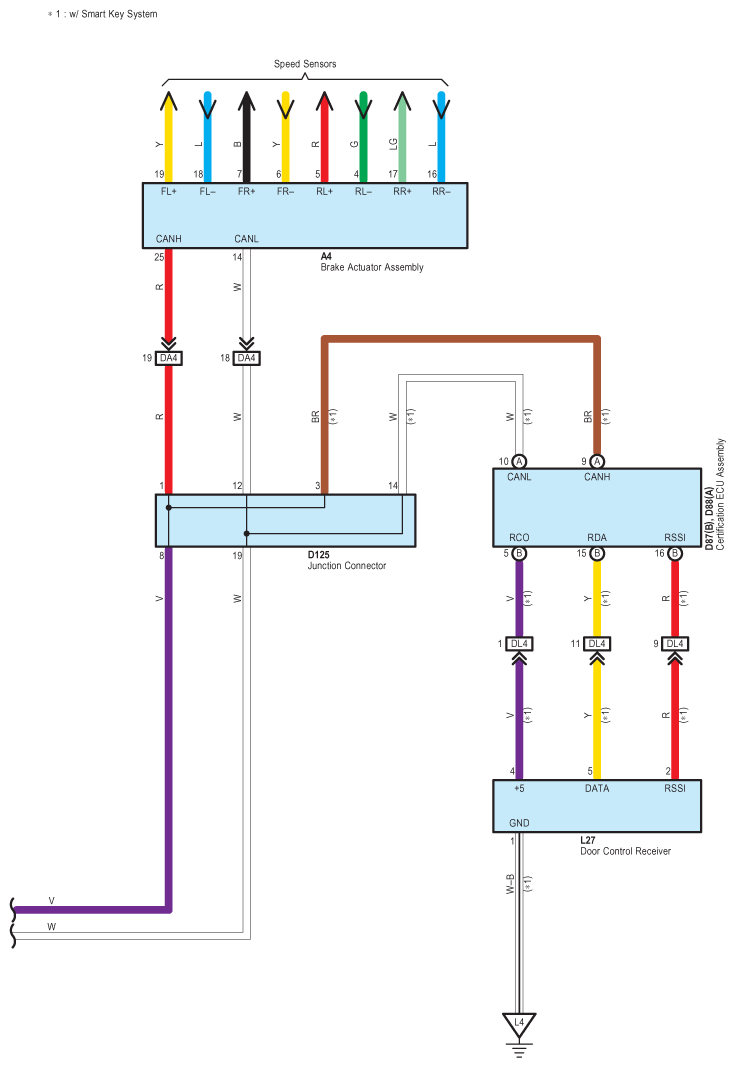

Fig 3: Power Seat Wiring Diagram (Driver's Seat W/ Seat Position Memory; 3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

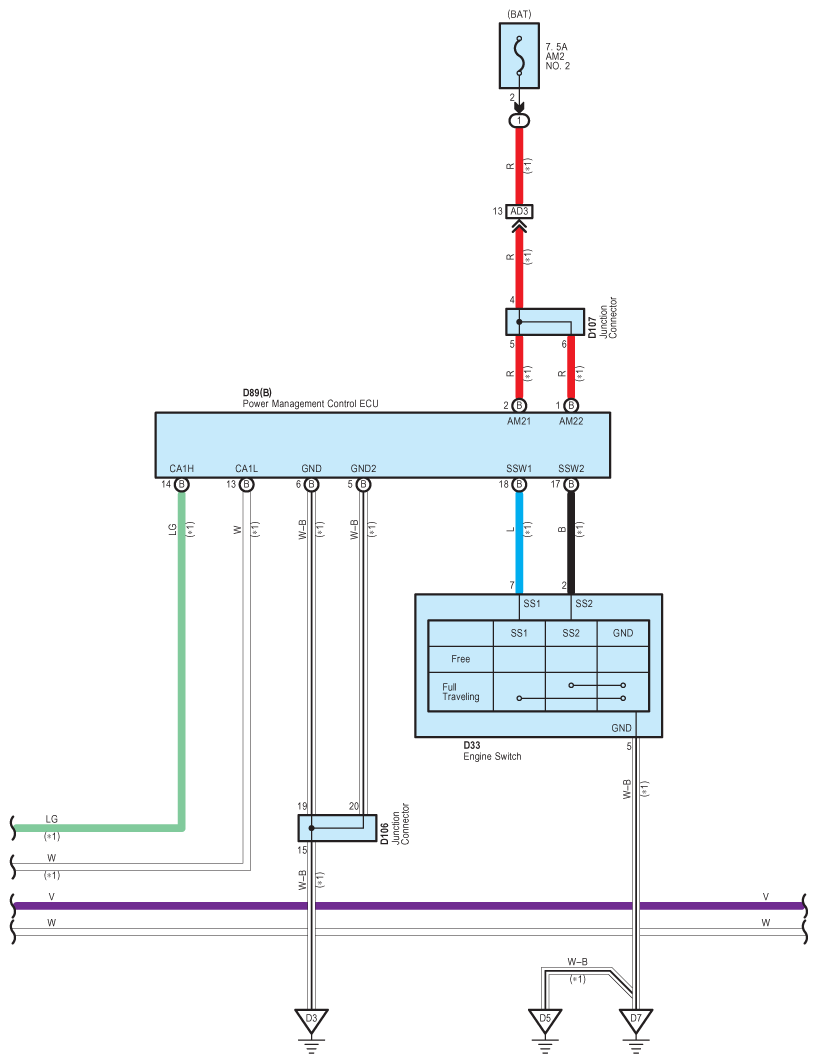

Fig 4: Power Seat Wiring Diagram (Driver's Seat W/ Seat Position Memory; 4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

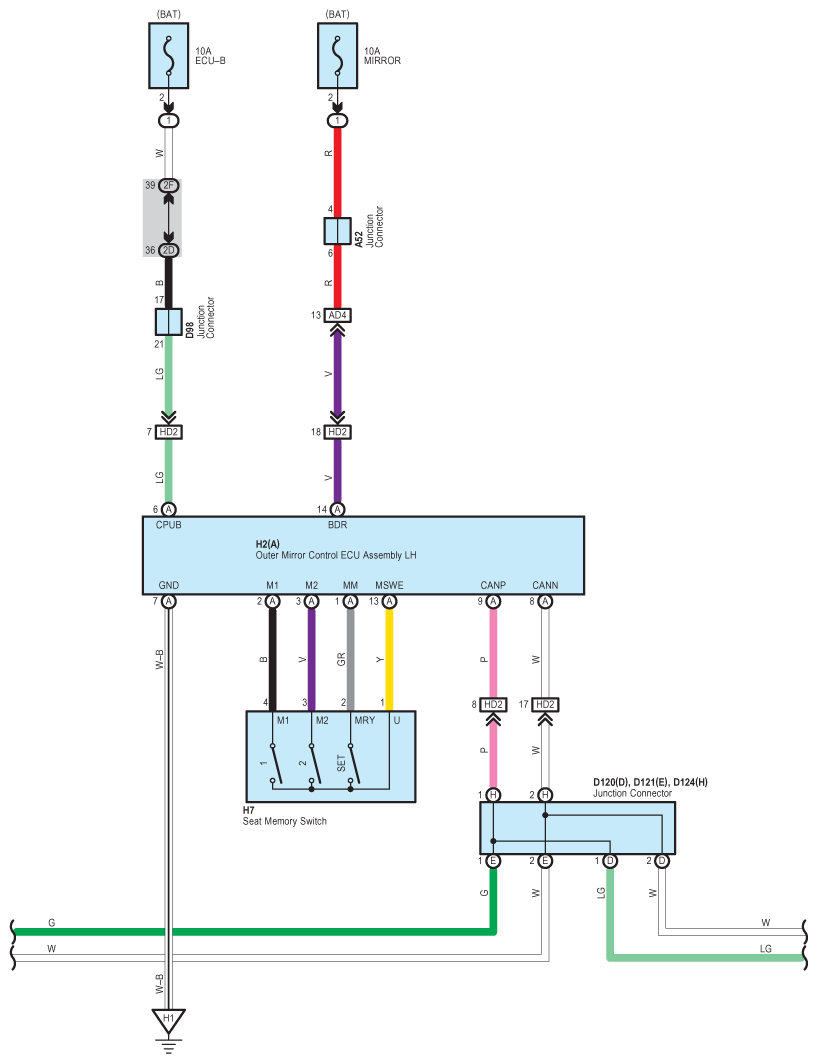

Fig 5: Power Seat Wiring Diagram (Driver's Seat W/ Seat Position Memory; 5 Of 7)

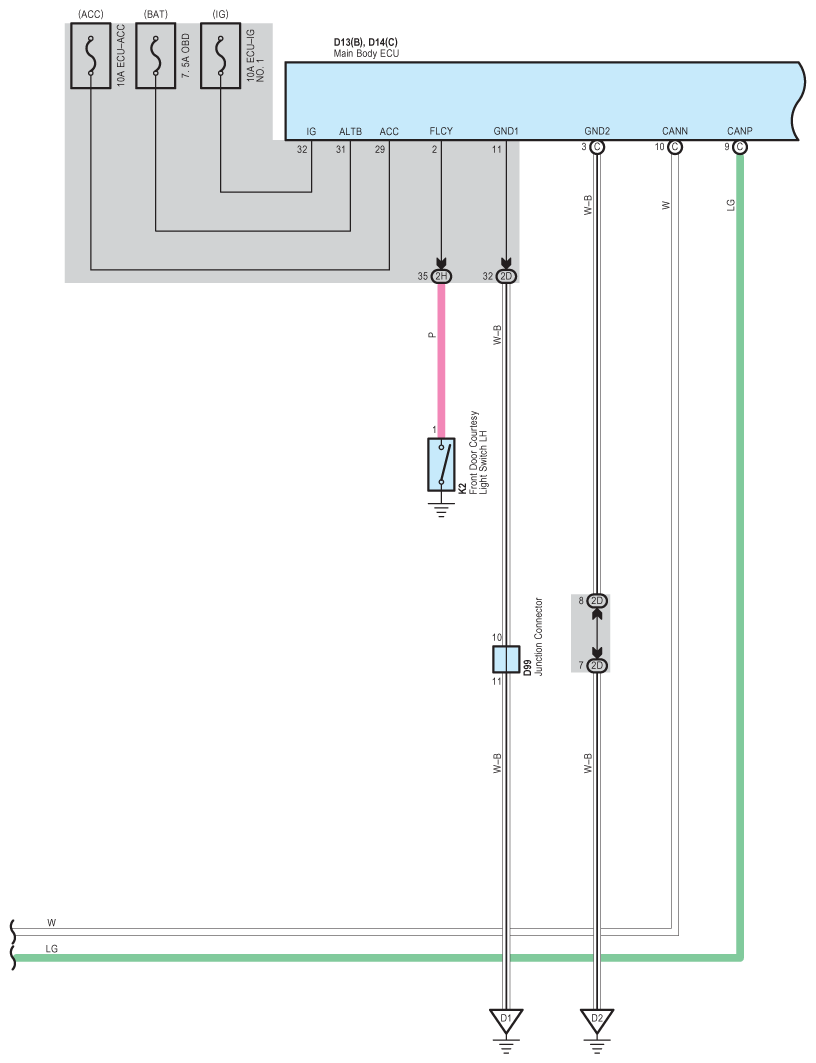

Fig 6: Power Seat Wiring Diagram (Driver's Seat W/ Seat Position Memory; 6 Of 7)

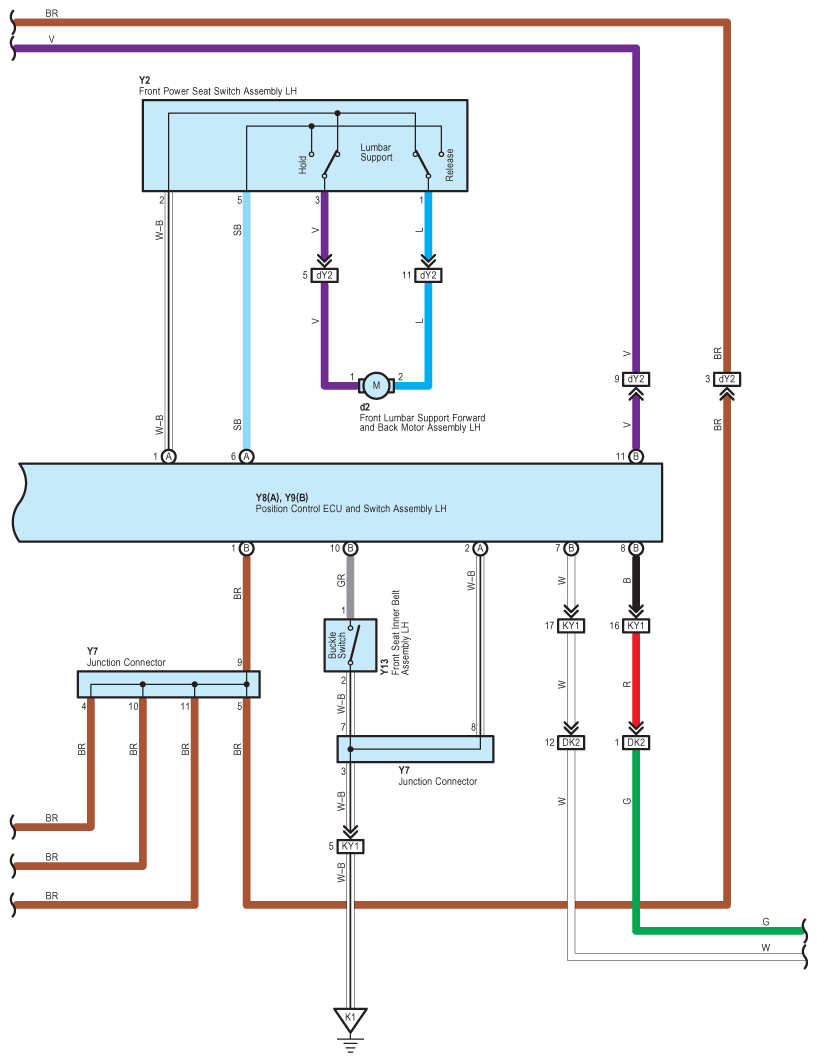

Fig 7: Power Seat Wiring Diagram (Driver's Seat W/ Seat Position Memory; 7 Of 7)
