DTC C1425: Open in Stop Light Switch Circuit: Procedure

1. Check that the stop lights come on when the brake pedal is depressed, and go off when the brake pedal is released.
   OK



   Condition	Illumination Condition
   Brake pedal depressed	ON
   Brake pedal released	OFF

NG → See step   4

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Chassis / ABS/VSC/ TRAC / Data List.
5. Select the Data List on the Techstream. Refer to DATA LIST / ACTIVE TEST .
   ABS/VSC/TRAC



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Stop Light SW	Stop light switch / ON or OFF	ON: Brake pedal depressed OFF: Brake pedal released	-

6. Check that the stop light switch display observed on the Techstream changes according to brake pedal operation.

   OK

   The Techstream displays ON or OFF according to brake pedal operation.

NG → See step   8

OK: Go to next step

1. Turn the ignition switch off.
2. Clear the DTCs. Refer to DTC CHECK / CLEAR .
3. Start the engine.
4. Depress the brake pedal several times to test the stop light circuit.
5. Check if the same DTC is recorded. Refer to DTC CHECK / CLEAR .
   RESULT



   Result	Proceed to
   DTC (C1425) is not output	A
   DTC (C1425) is output	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

B → See step   9

A → See step   10

1. Make sure that there is no looseness at the locking part and the connecting part of the connectors.
2. Disconnect the stop light switch connector.
3. Measure the voltage according to the value(s) in the table below.

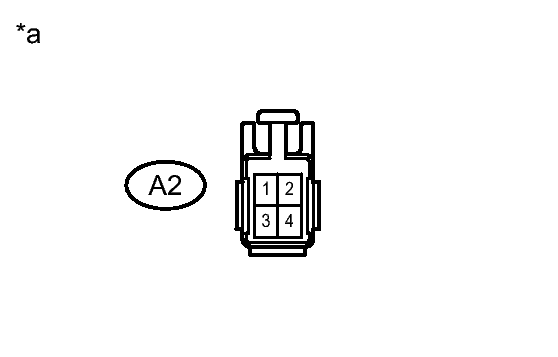

   Fig 1: Measuring Voltage Of Stop Light Switch (Power Source Terminal)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A2-2 - Body ground	Always	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Stop Light Switch)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

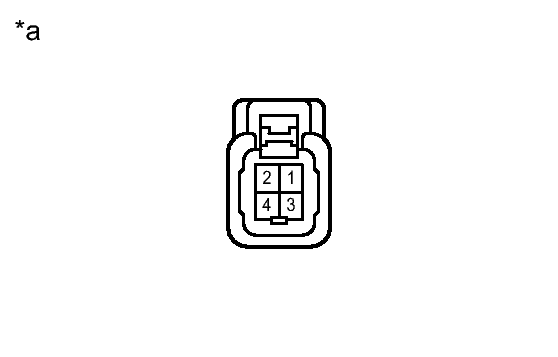

   Fig 2: Stop Light Switch Connector End View

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   1 - 2	Switch pin free	Below 1 Ω
   1 - 2	Switch pin pushed in	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Stop Light Switch)

NG → See step   11

OK: Go to next step

1. Make sure that there is no looseness at the locking part and the connecting part of the connector.
2. Disconnect the skid control ECU connector and the stop light switch connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A2-1 - A4-2 (STP1)	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the skid control ECU connector and the stop light switch connector.
2. Clear the DTCs. Refer to DTC CHECK / CLEAR .
3. Start the engine.
4. Depress the brake pedal several times to test the stop light circuit.
5. Check if the same DTC is recorded. Refer to DTC CHECK / CLEAR .
   RESULT



   Result	Proceed to
   DTC (C1425) is not output	A
   DTC (C1425) is output	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

B → See step   9

A → See step   12

1. Turn the ignition switch off.
2. Make sure that there is no looseness at the locking part and the connecting part of the connectors.
3. Disconnect the skid control ECU connector and the stop light switch connector.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A4-2 (STP1) - A2-1	Always	Below 1 Ω

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   9
