Steering Column Assembly: Components: Illustration

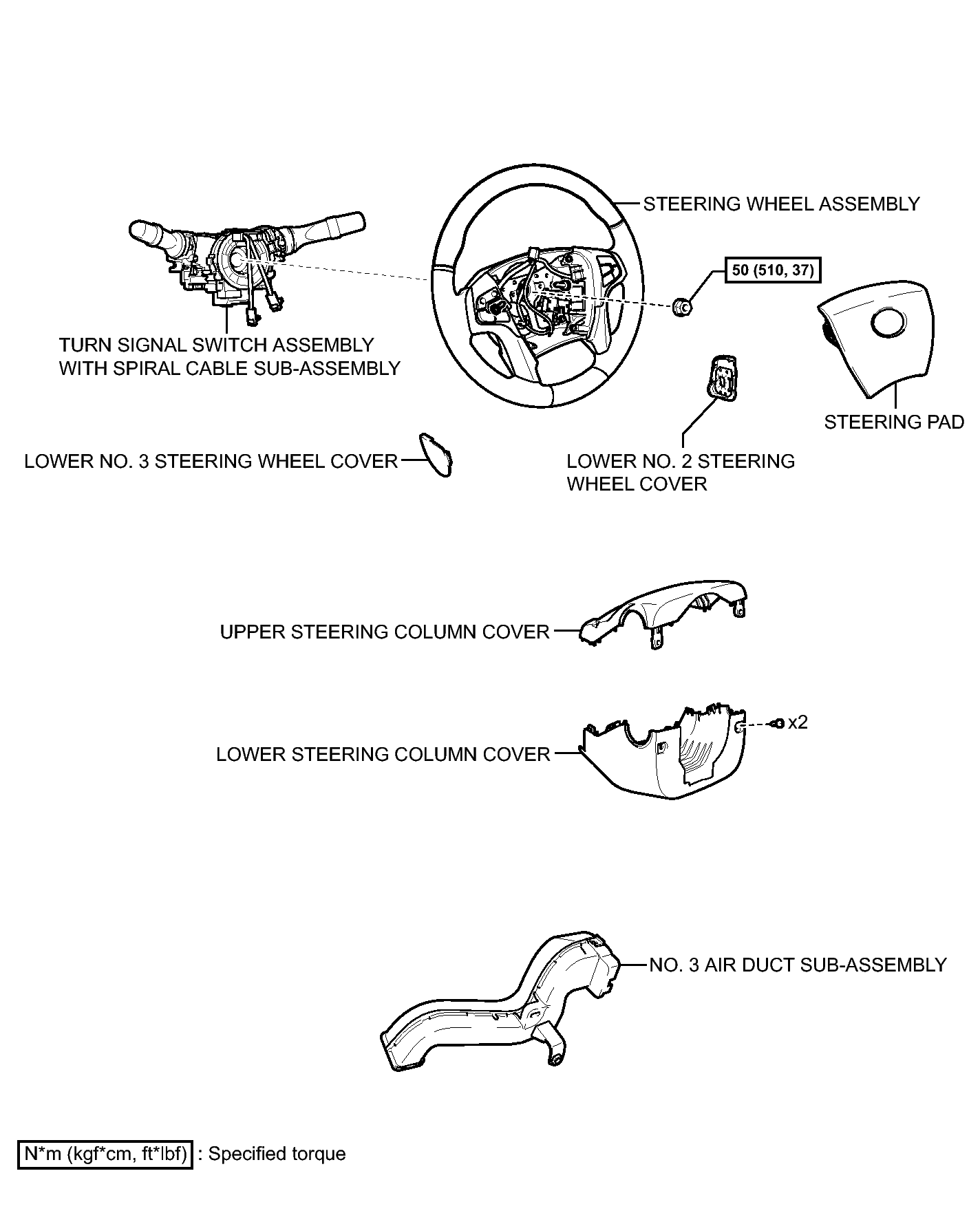

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 of 3)
GTY303970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

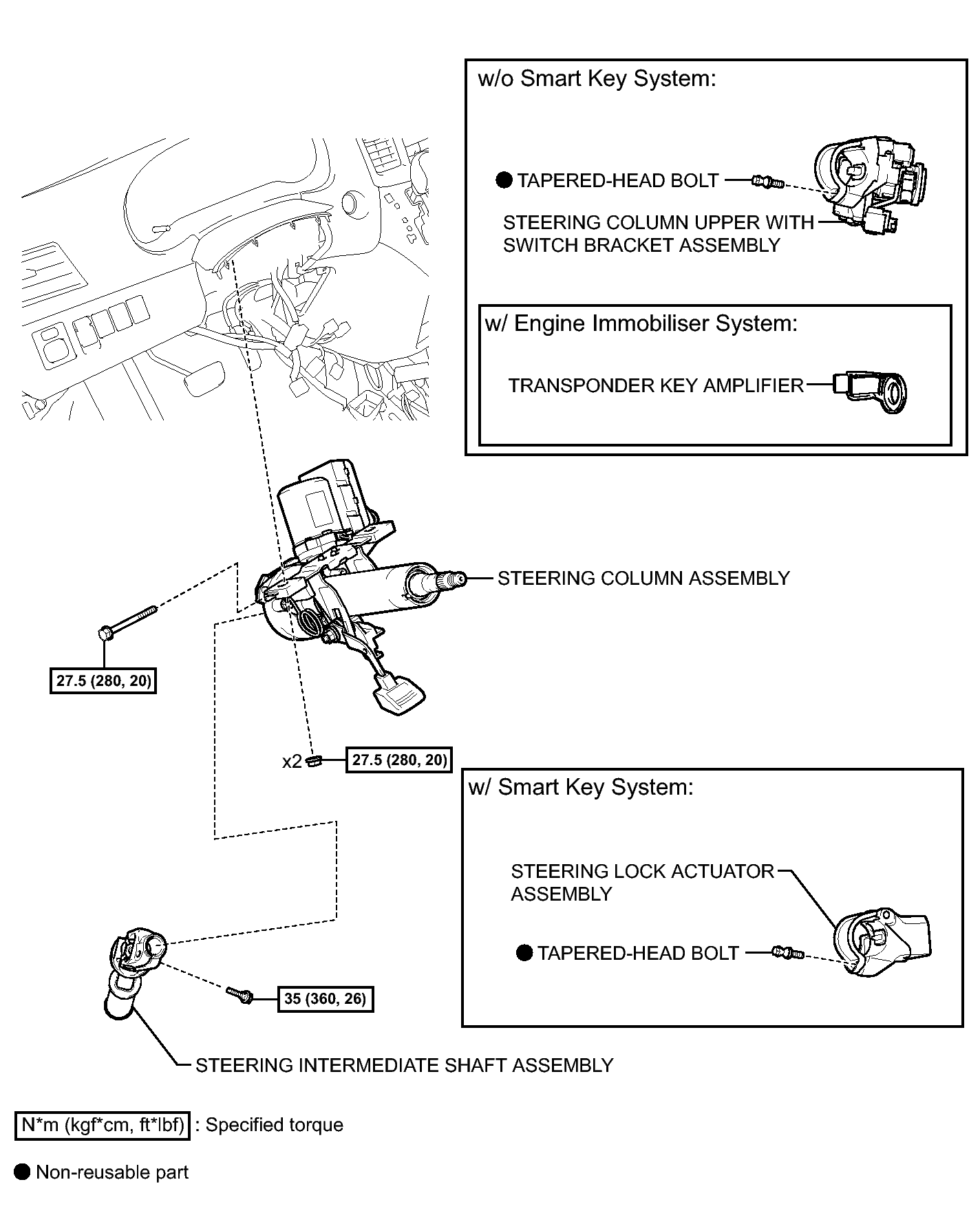

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (2 of 3)
GTY341480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

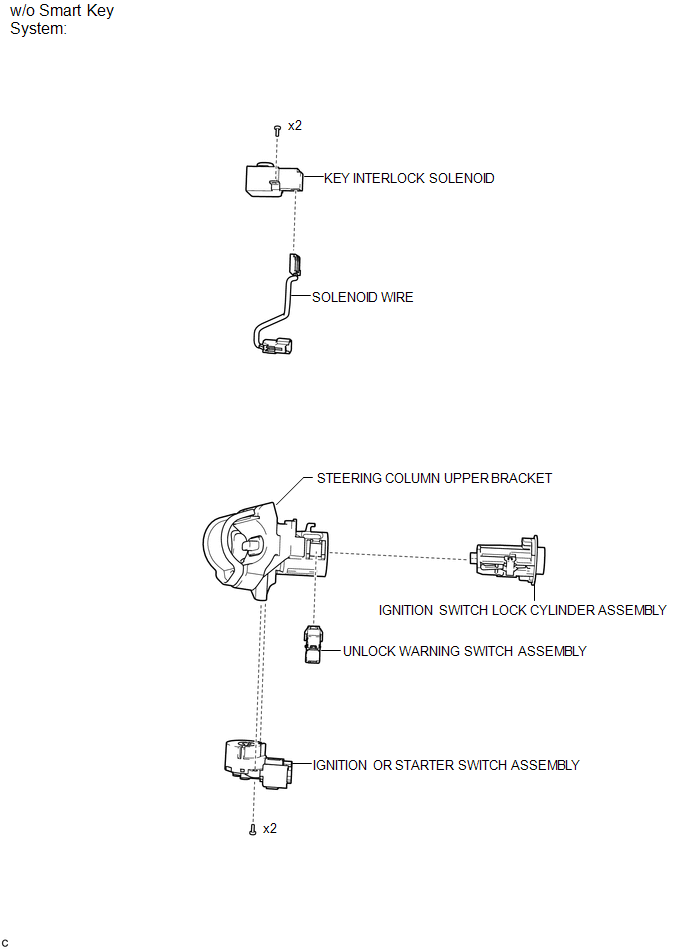

Fig 1: Steering Column Assembly Replacement Components (w/o Smart Key System) (3 Of 3)
GTY304212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
