Seat Position Sensor: Components: Illustration

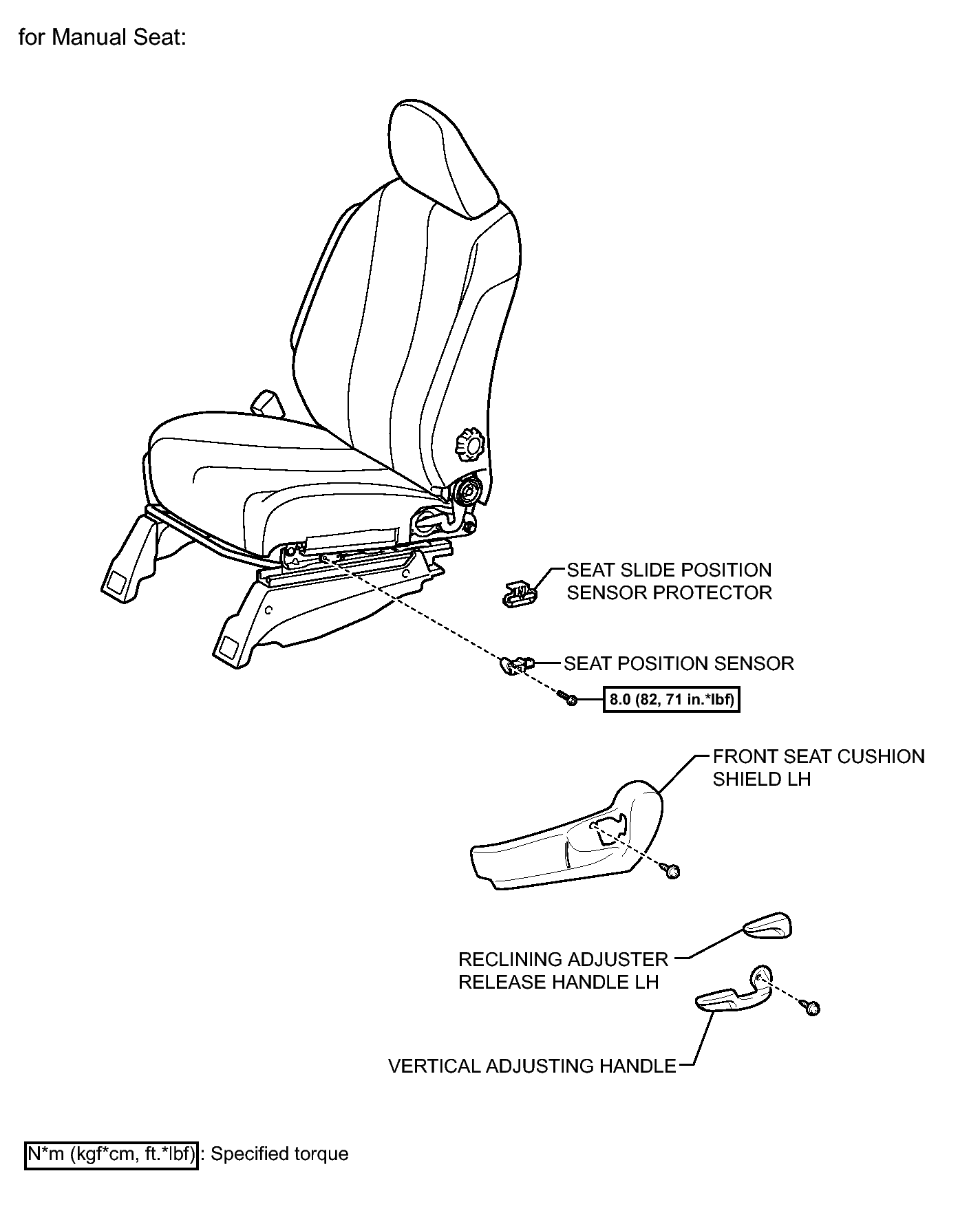

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications (Manual Seat) (1 Of 2)
GTY299445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

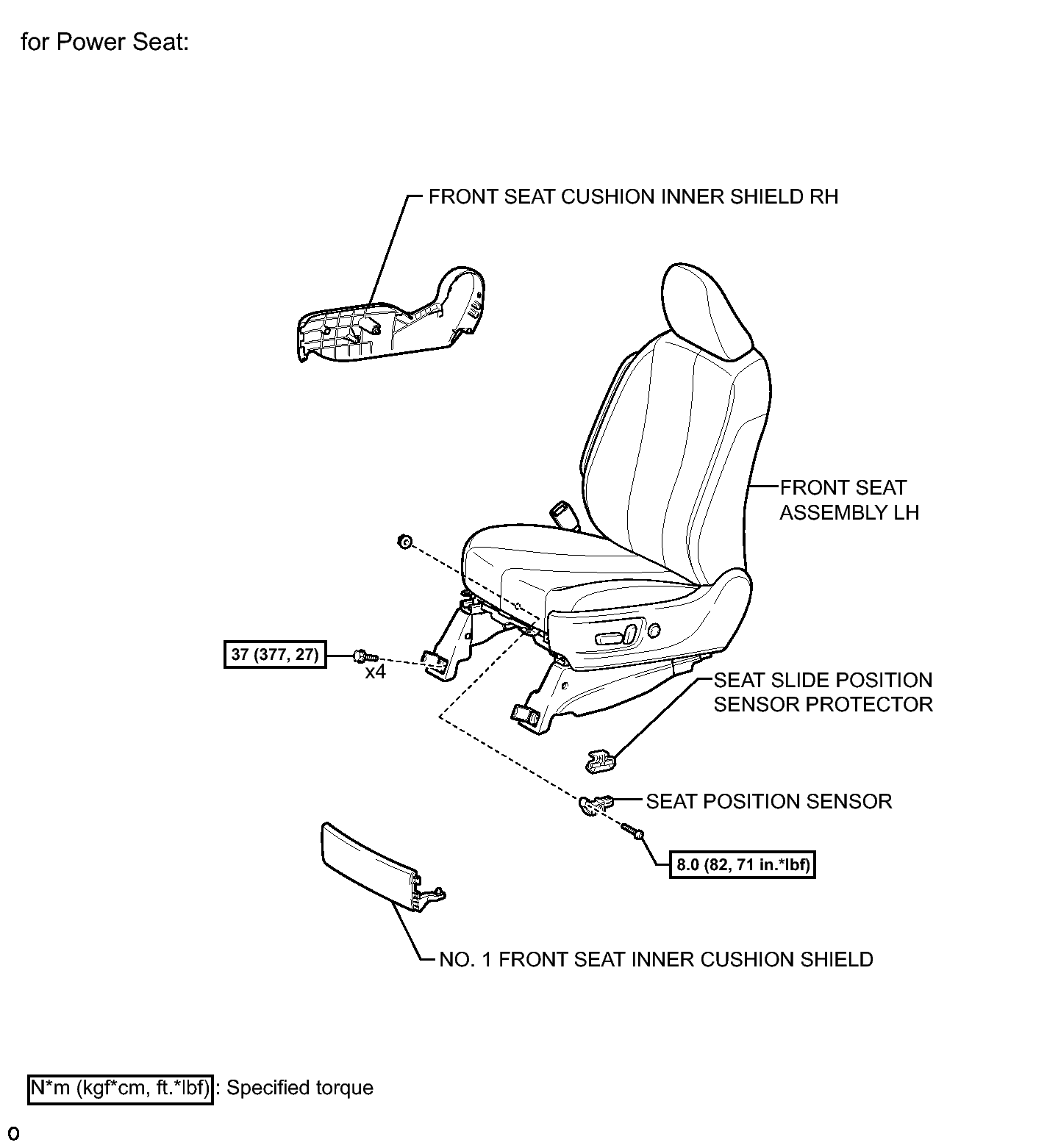

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications (Power Seat) (2 Of 2)
GTY296645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
