Throttle Body: Inspection: Inspection
WARNING: This page is about a different variant/trim than selected.
- INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

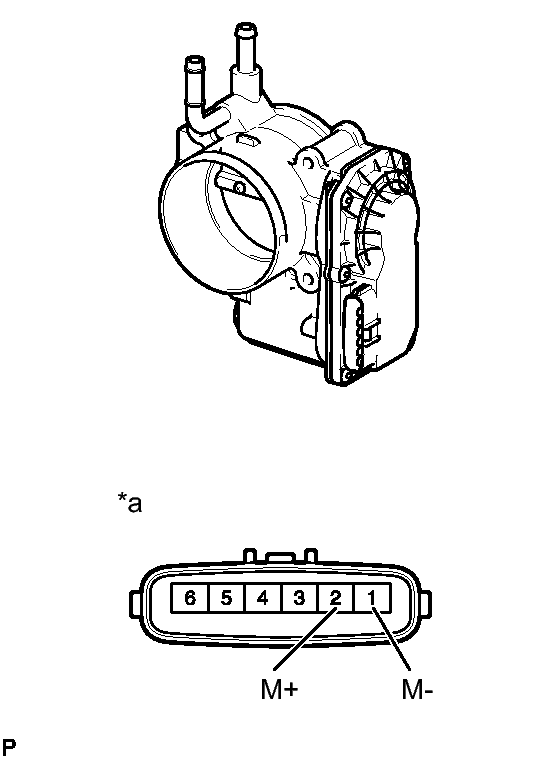

TEXT IN ILLUSTRATION*a Component without harness connected
(Throttle with Motor Body Assembly)- Check that the throttle valve opens and closes smoothly.
- Check that there is no sludge accumulating around the throttle body.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 (M-) - 2 (M+) 20°C (68°F) 0.3 to 100 Ω If the result is not as specified, replace the throttle with motor body assembly.
