DTC B2285: Steering Lock Position Signal Circuit Malfunction: Wiring Diagram

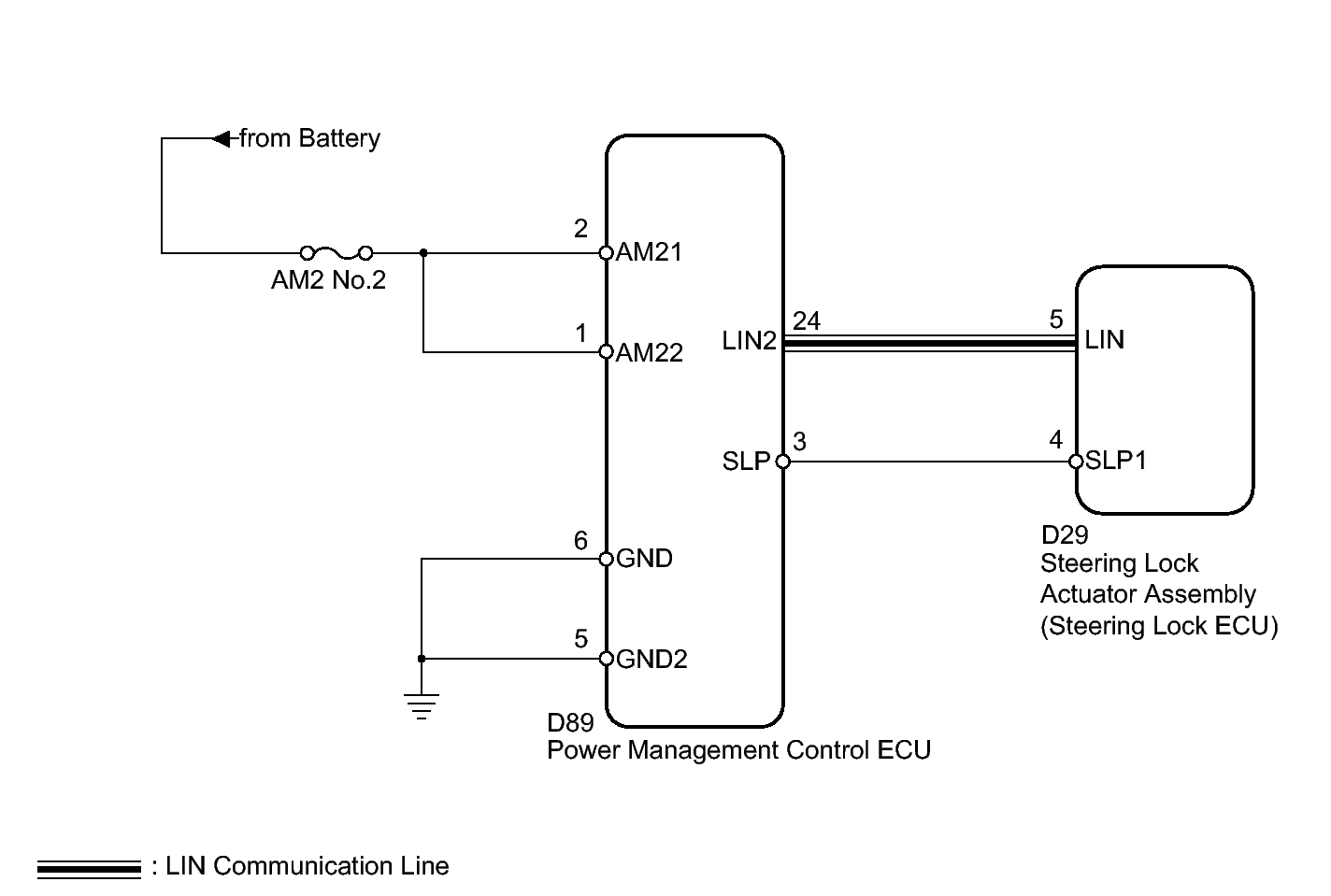

Fig 1: Steering Lock Position Signal Circuit - Wiring Diagram

GTY298893

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
