Power Seat (Front Passenger's Seat): Notes

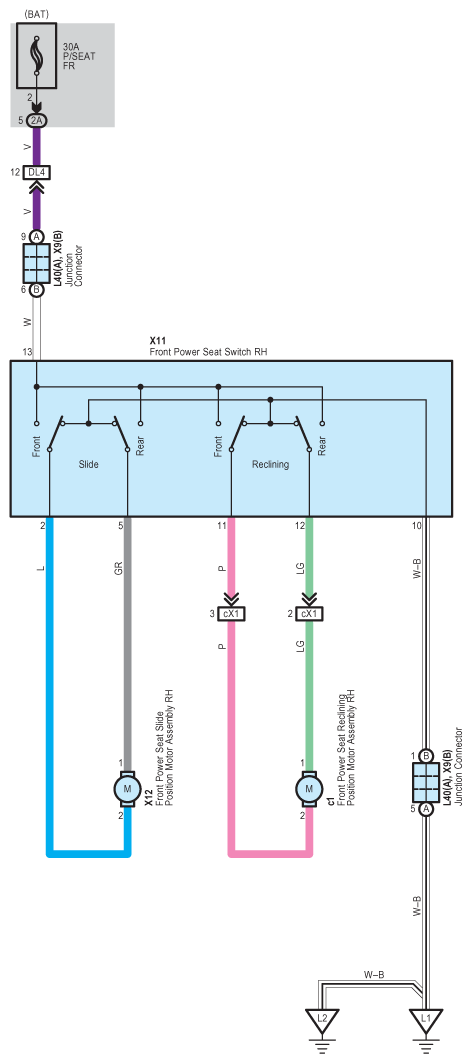

Fig 1: Power Seat Wiring Diagram (Front Passenger's Seat)

G08846306

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
