Parking Assist (Intuitive Parking Assist): Notes

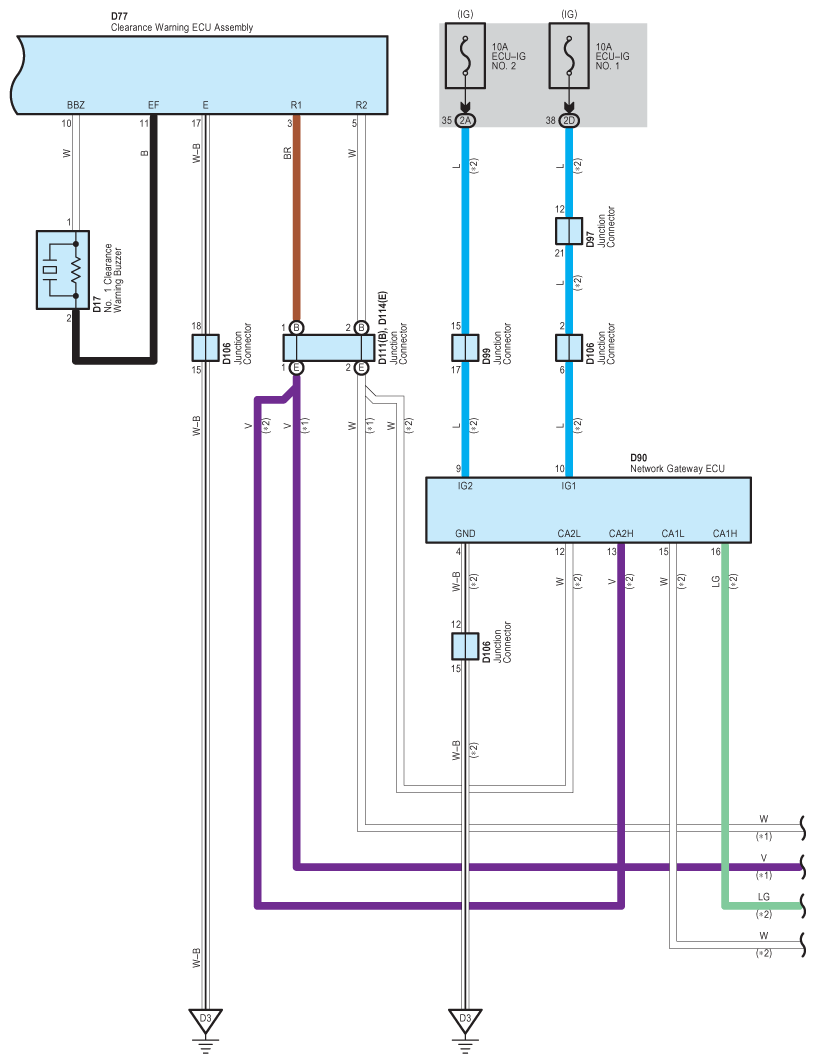

Fig 1: Parking Assist Wiring Diagram (Intuitive Parking Assist; 1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

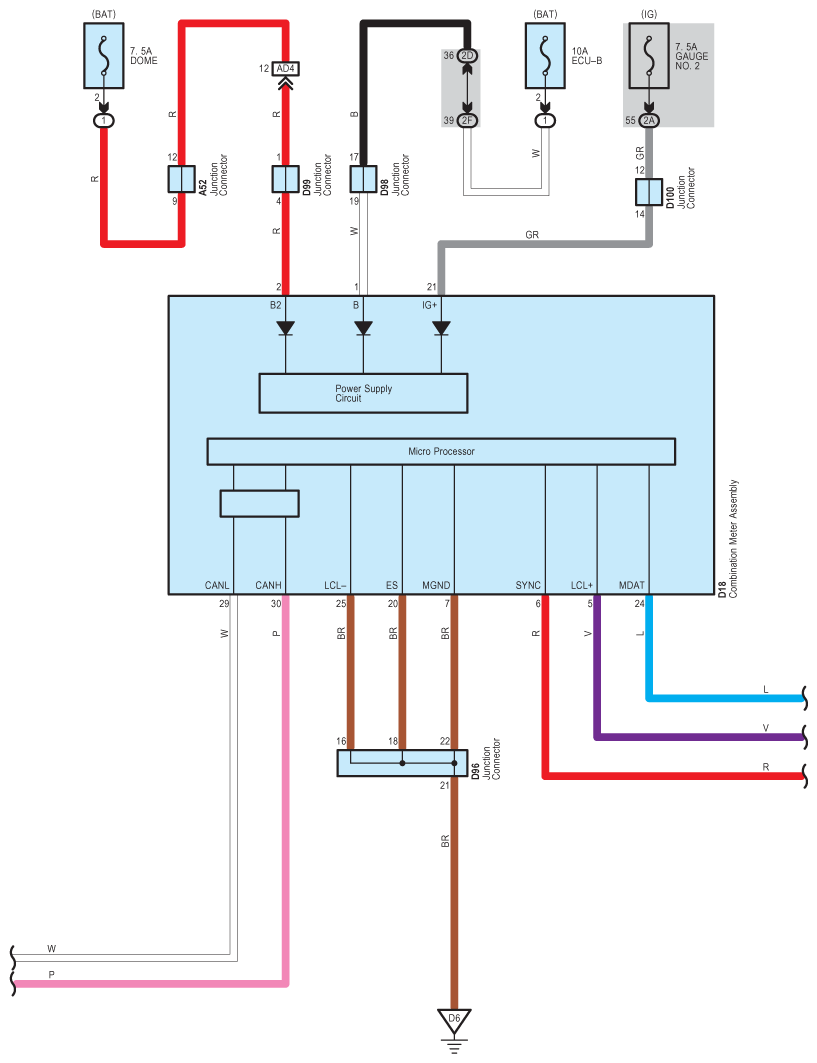

Fig 2: Parking Assist Wiring Diagram (Intuitive Parking Assist; 2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

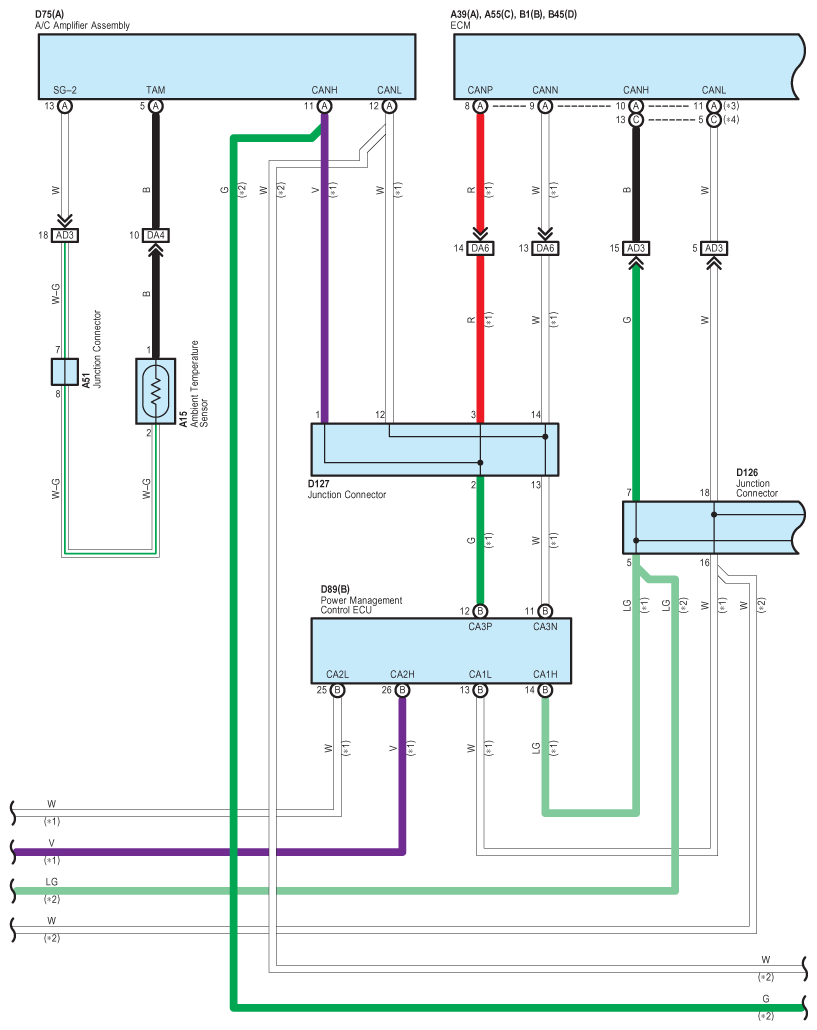

Fig 3: Parking Assist Wiring Diagram (Intuitive Parking Assist; 3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

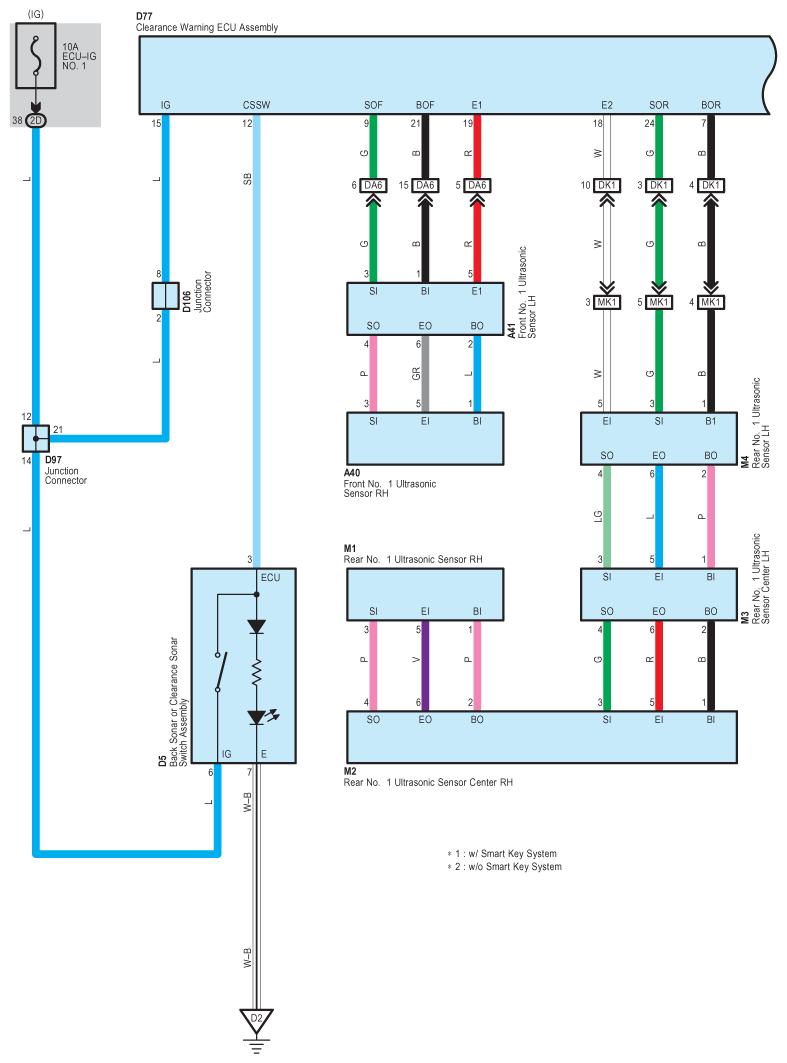

Fig 4: Parking Assist Wiring Diagram (Intuitive Parking Assist; 4 Of 6)

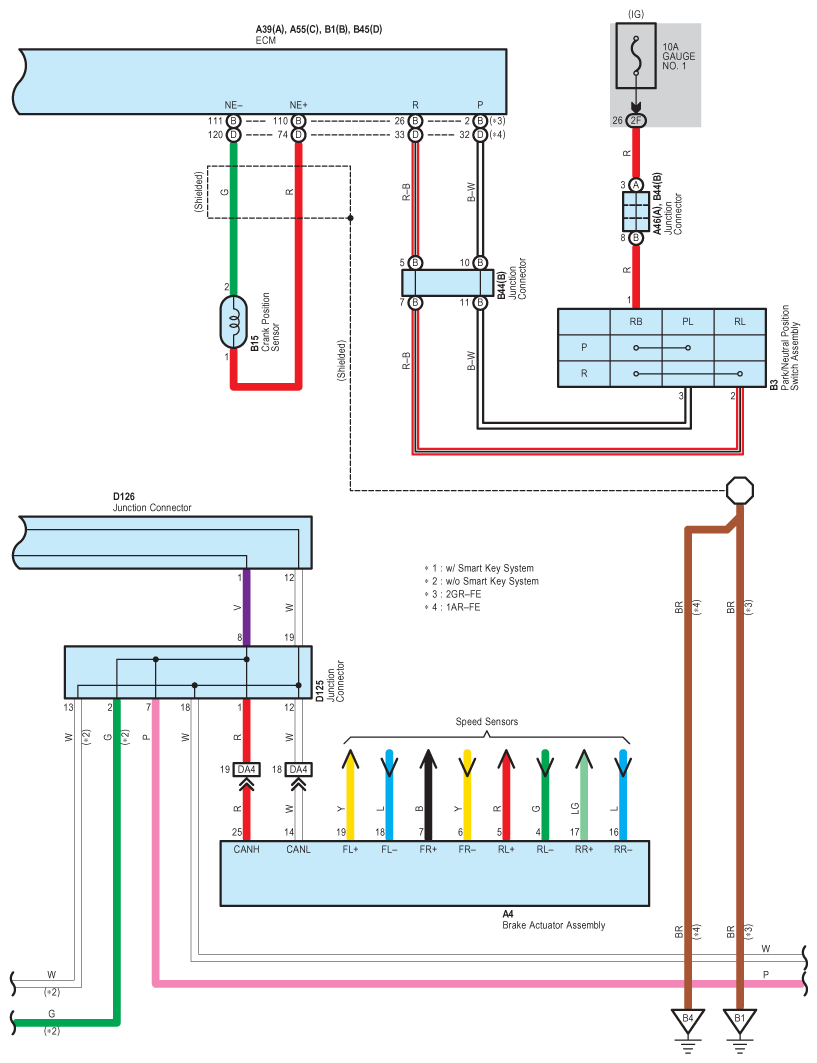

Fig 5: Parking Assist Wiring Diagram (Intuitive Parking Assist; 5 Of 6)

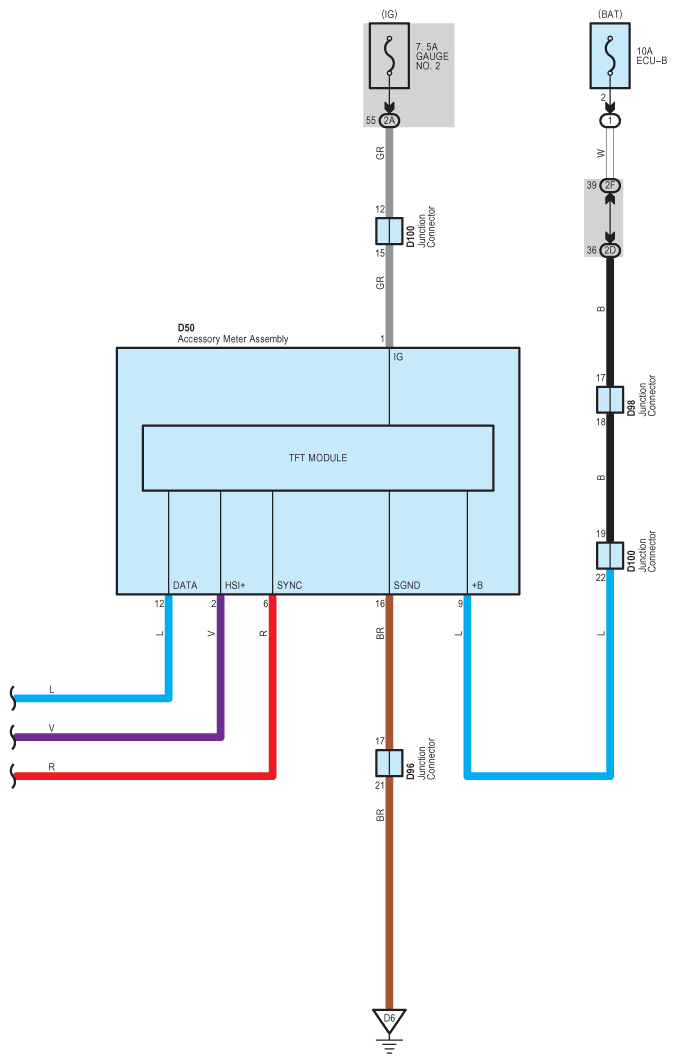

Fig 6: Parking Assist Wiring Diagram (Intuitive Parking Assist; 6 Of 6)
