Hill-Start Assist Control, Vehicle Dynamics Integrated Management or ABS, TRAC and VSC: Notes

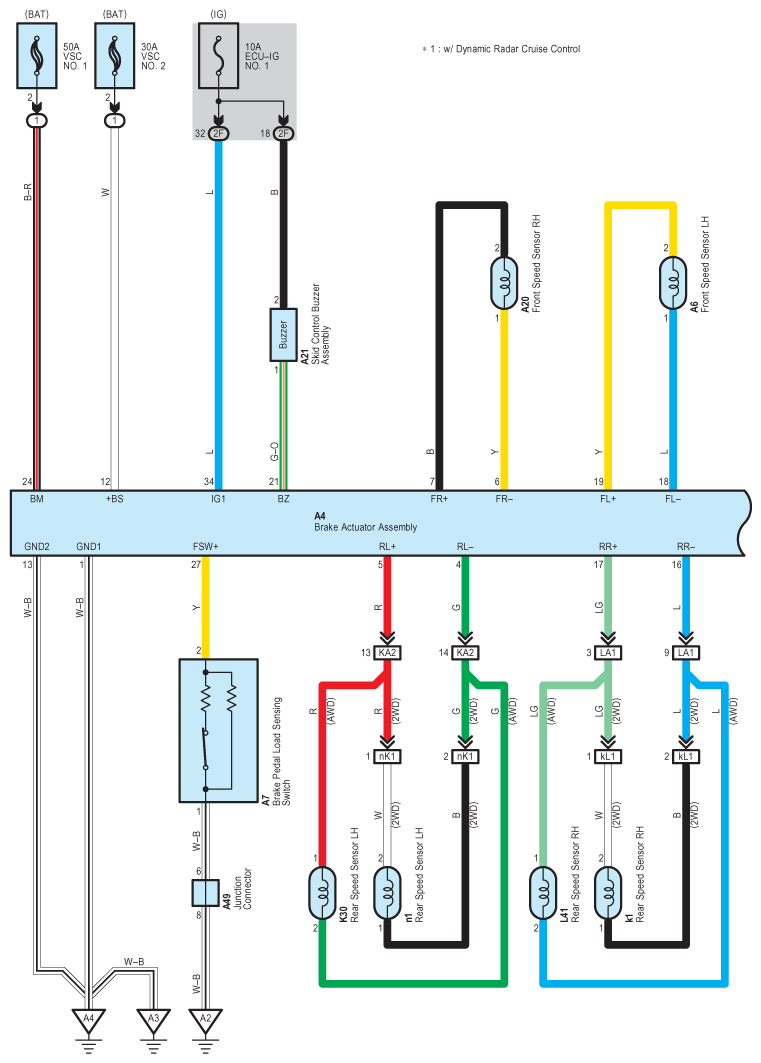

Fig 1: Hill-Start Assist Control, Vehicle Dynamics Integrated Management Or ABS, TRAC And VSC Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

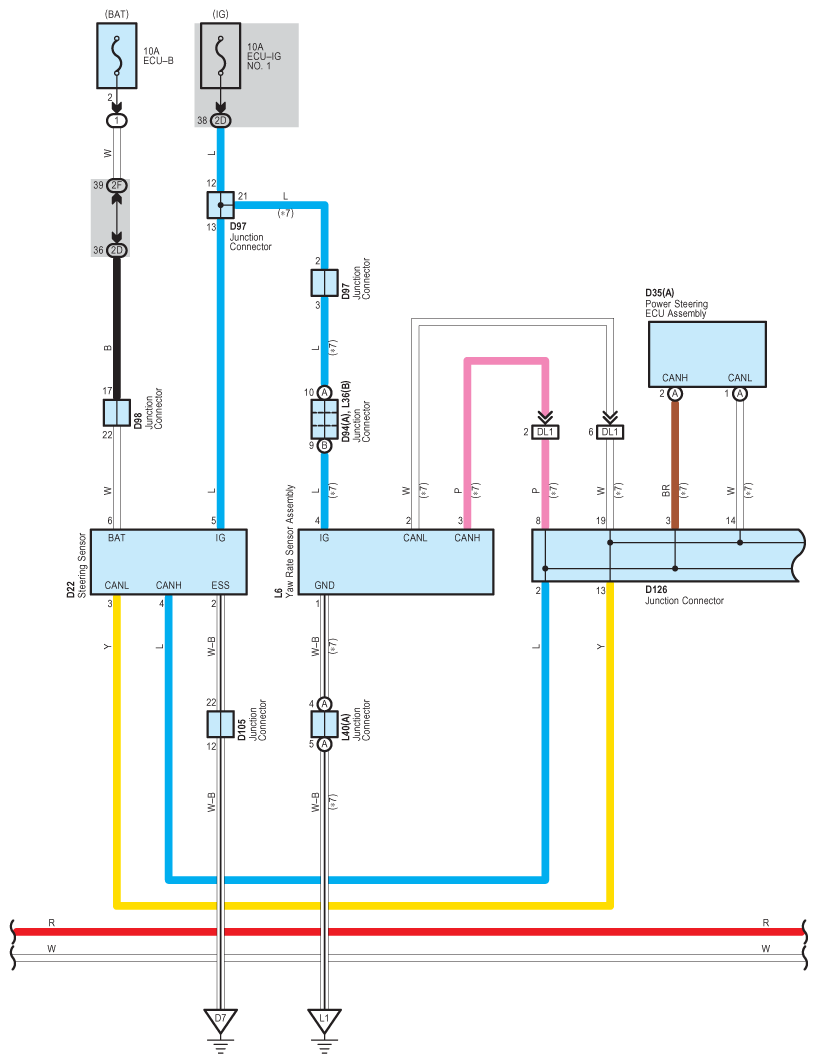

Fig 2: Hill-Start Assist Control, Vehicle Dynamics Integrated Management Or ABS, TRAC And VSC Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

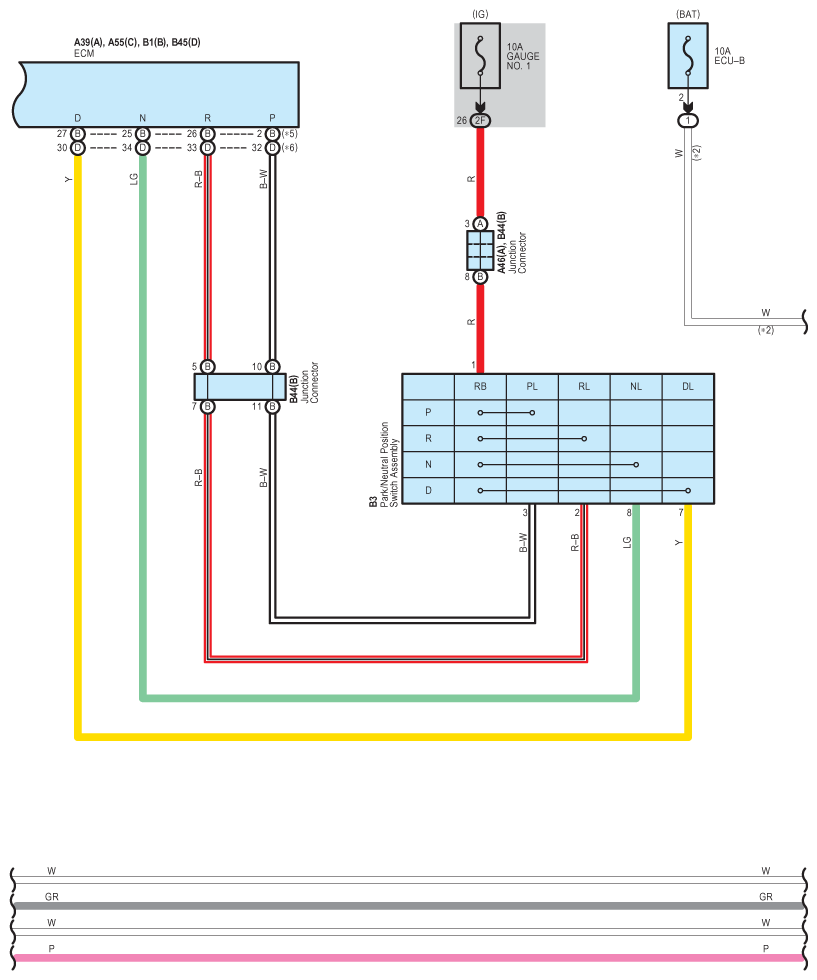

Fig 3: Hill-Start Assist Control, Vehicle Dynamics Integrated Management Or ABS, TRAC And VSC Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

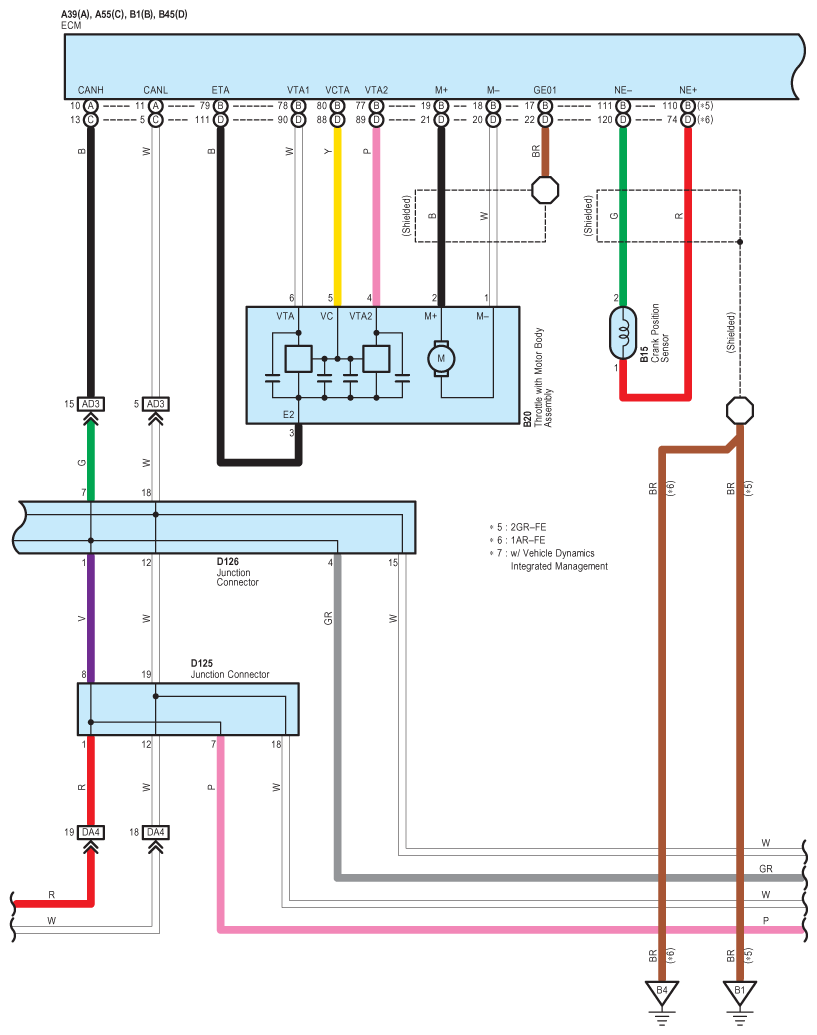

Fig 4: Hill-Start Assist Control, Vehicle Dynamics Integrated Management Or ABS, TRAC And VSC Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

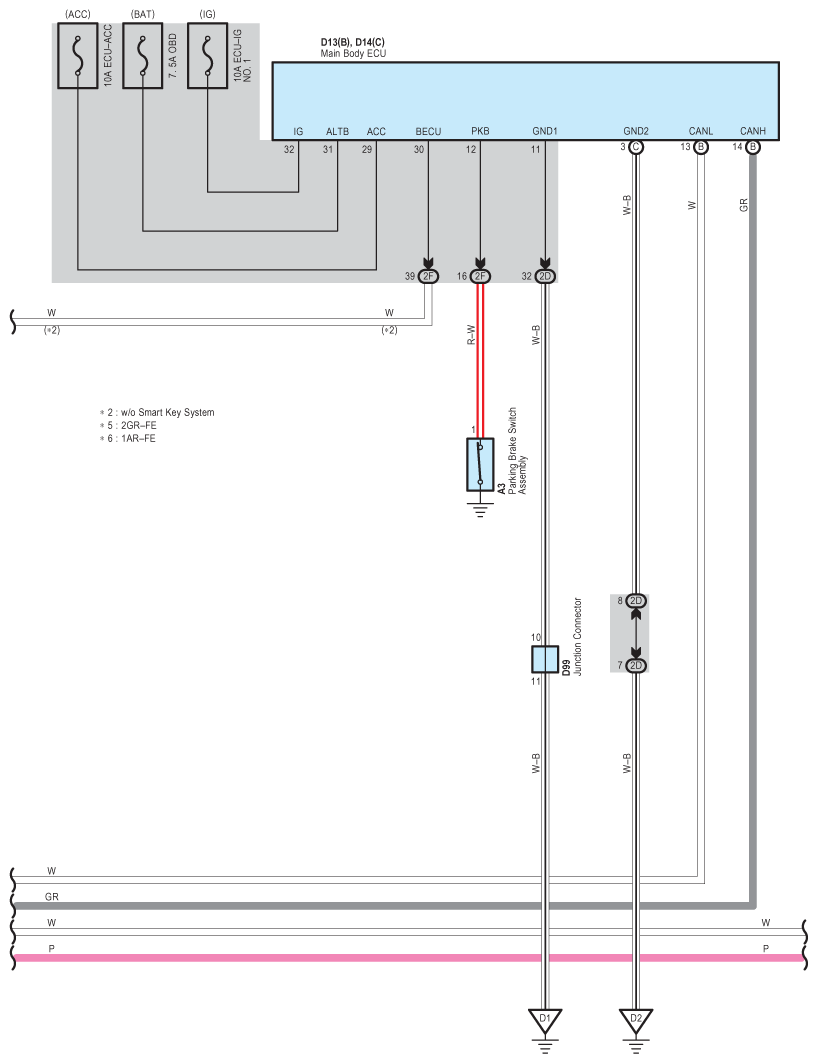

Fig 5: Hill-Start Assist Control, Vehicle Dynamics Integrated Management Or ABS, TRAC And VSC Wiring Diagram (5 Of 7)

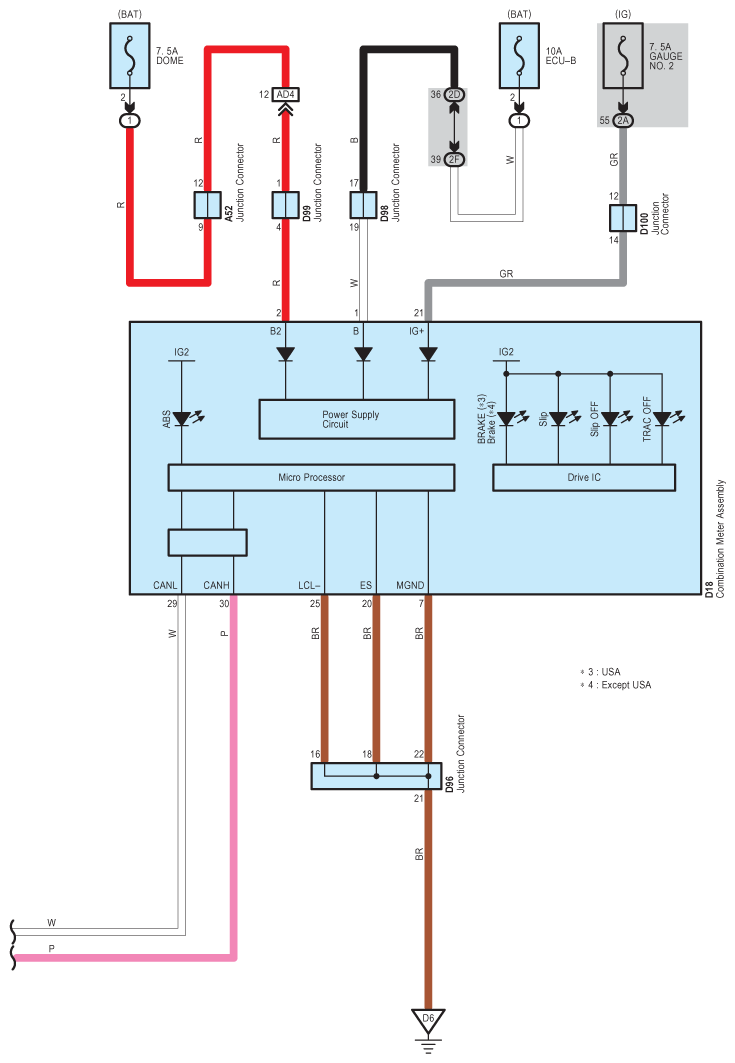

Fig 6: Hill-Start Assist Control, Vehicle Dynamics Integrated Management Or ABS, TRAC And VSC Wiring Diagram (6 Of 7)

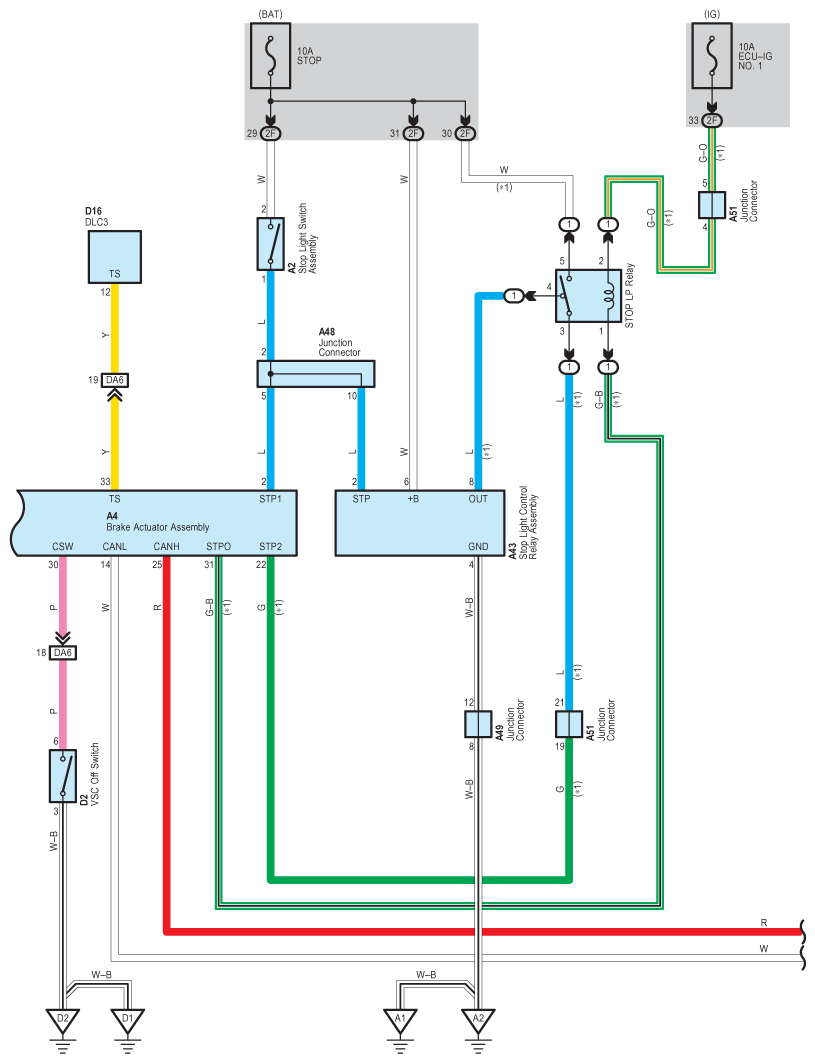

Fig 7: Hill-Start Assist Control, Vehicle Dynamics Integrated Management Or ABS, TRAC And VSC Wiring Diagram (7 Of 7)
