Front Wiper and Washer (w/o Auto Wiper System): Notes

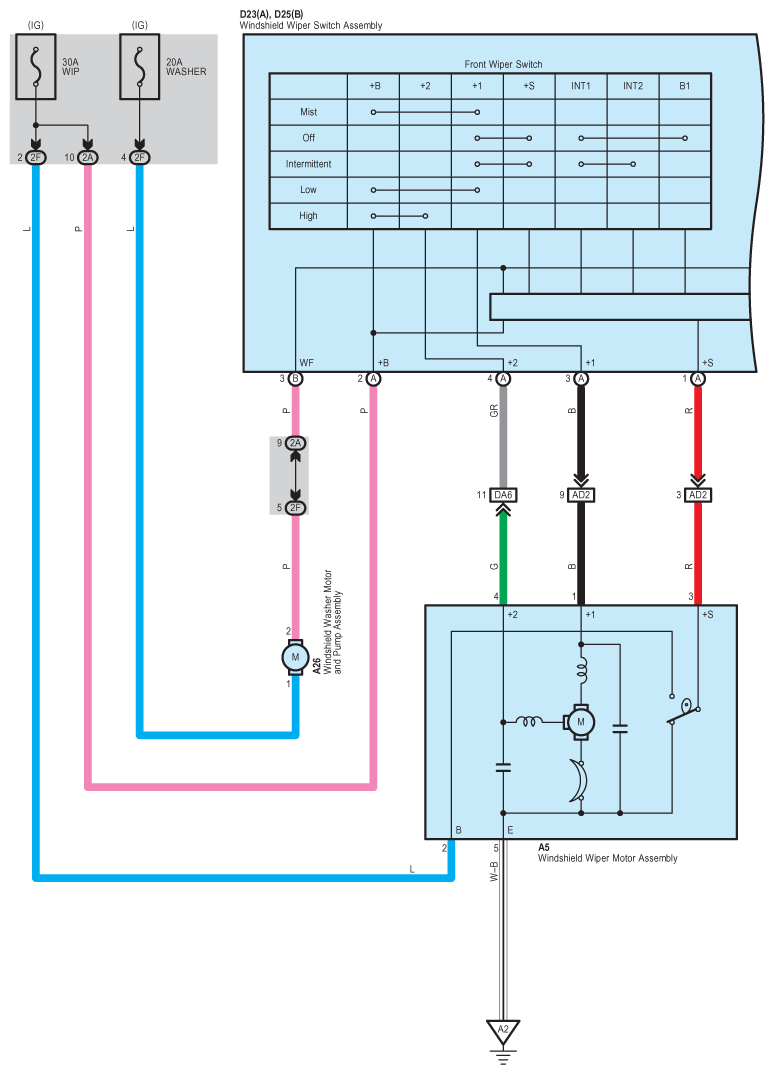

Fig 1: Front Wiper And Washer System Wiring Diagram (W/O Auto Wiper; 1 Of 2)
G08846192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

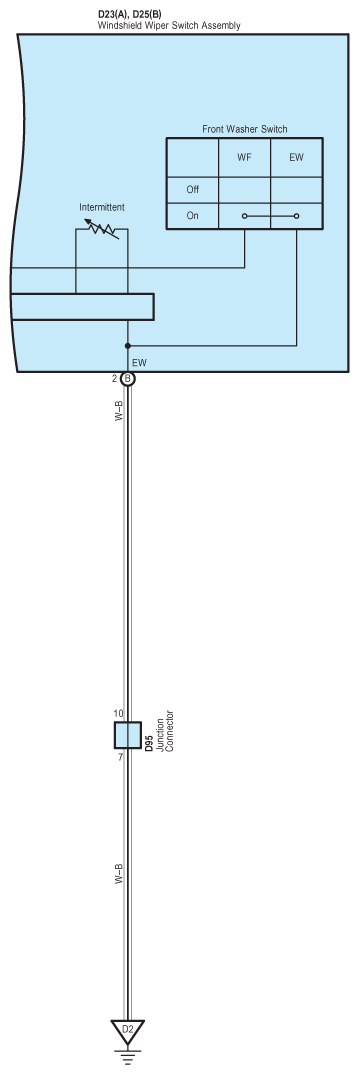

Fig 2: Front Wiper And Washer System Wiring Diagram (W/O Auto Wiper; 2 Of 2)
G08846193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
