Ground Point: Notes

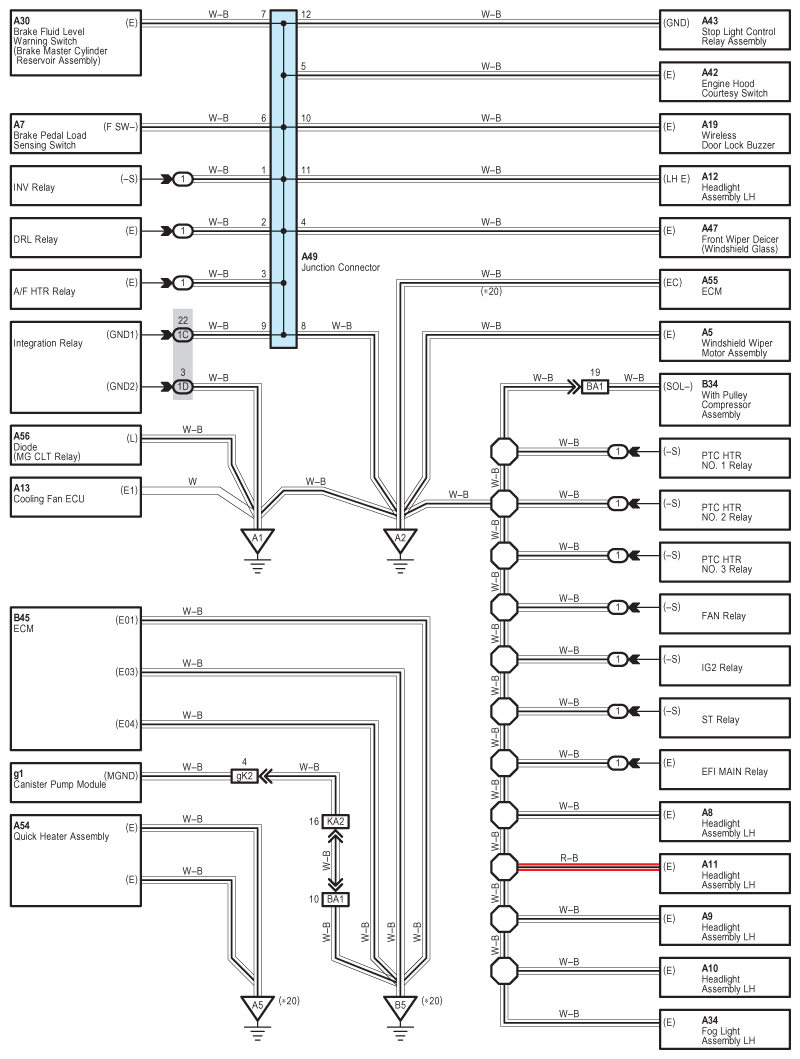

Fig 1: Ground Point Wiring Diagram (1 Of 12)

G08846399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

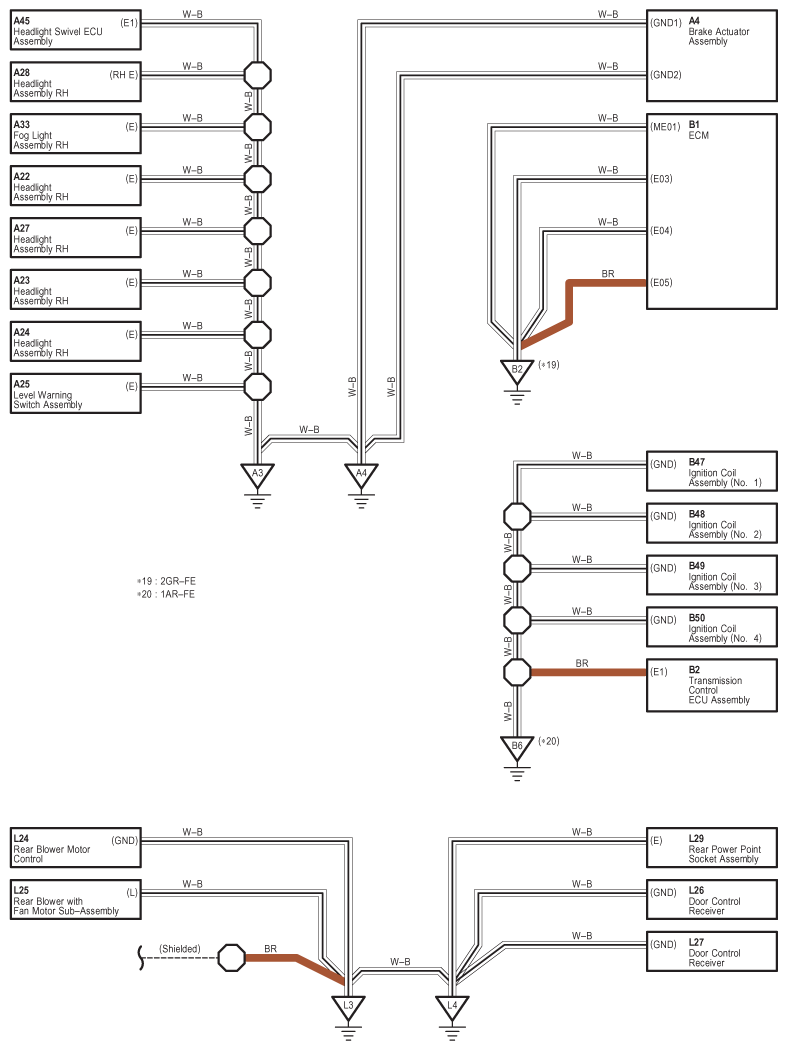

Fig 2: Ground Point Wiring Diagram (2 Of 12)

G08846400

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

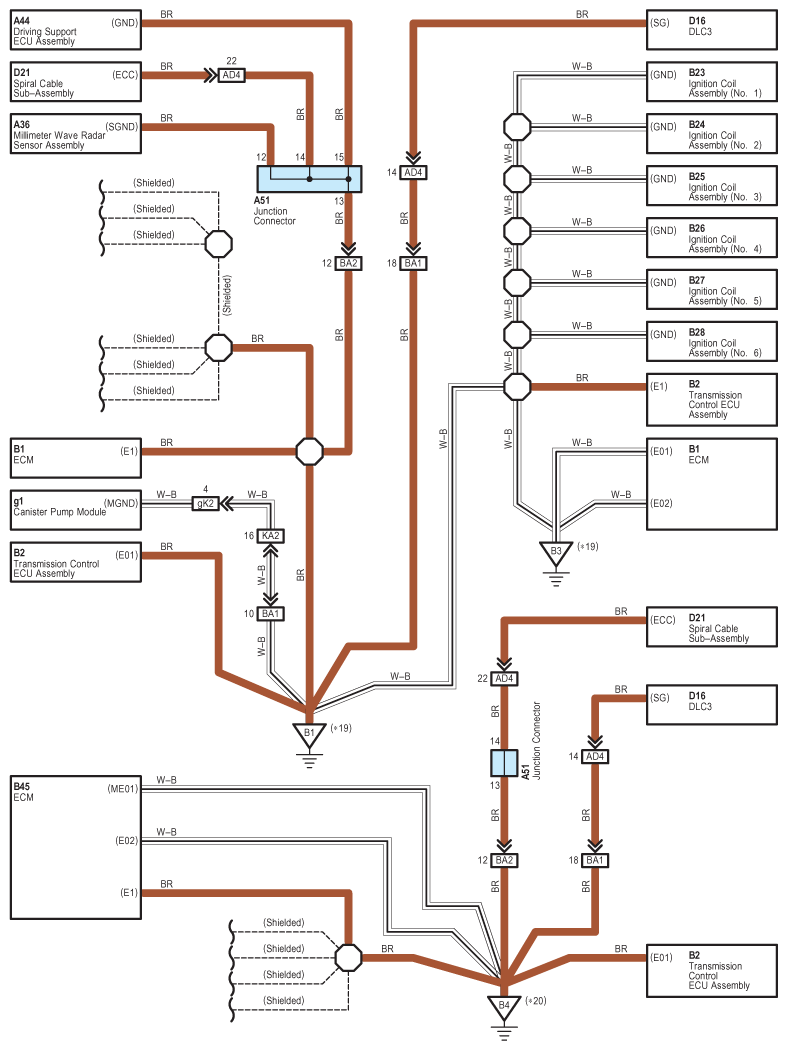

Fig 3: Ground Point Wiring Diagram (3 Of 12)

G08846401

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

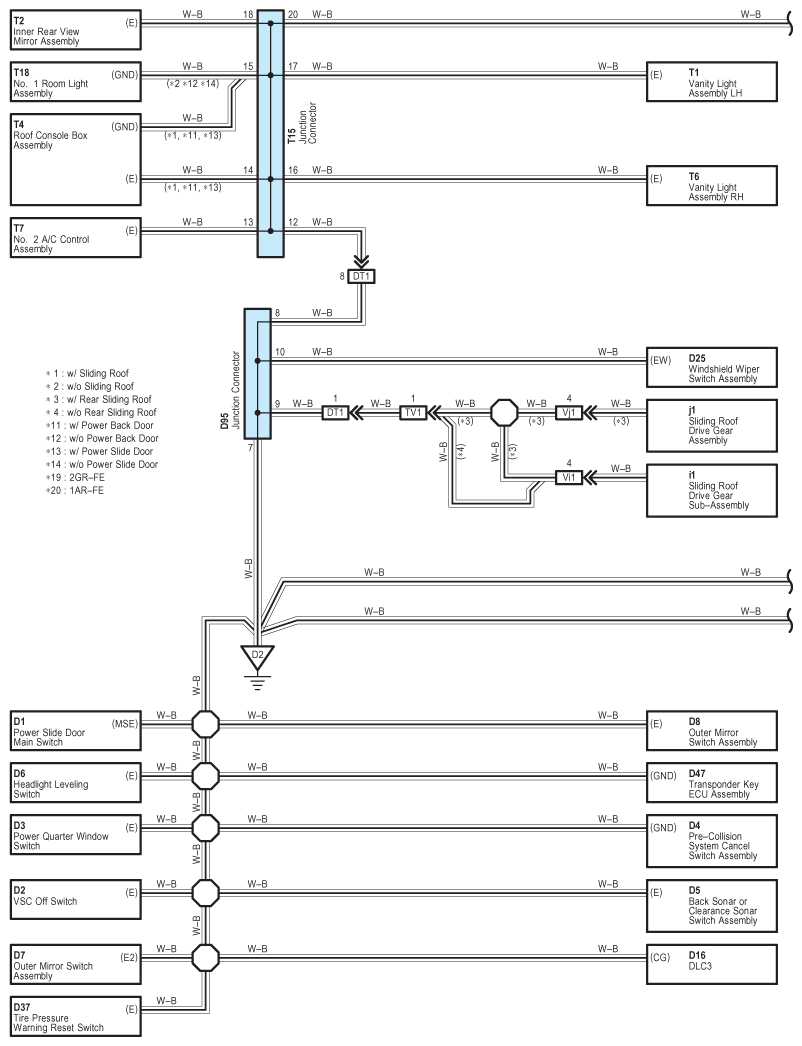

Fig 4: Ground Point Wiring Diagram (4 Of 12)

G08846402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

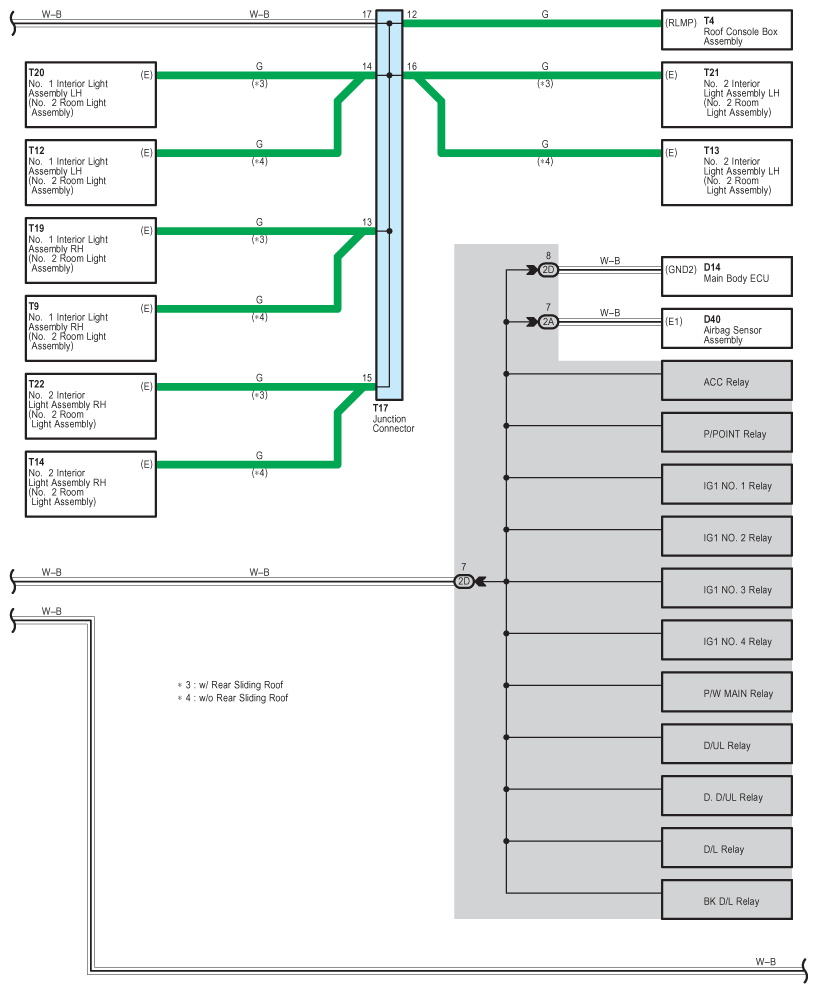

Fig 5: Ground Point Wiring Diagram (5 Of 12)

G08846403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

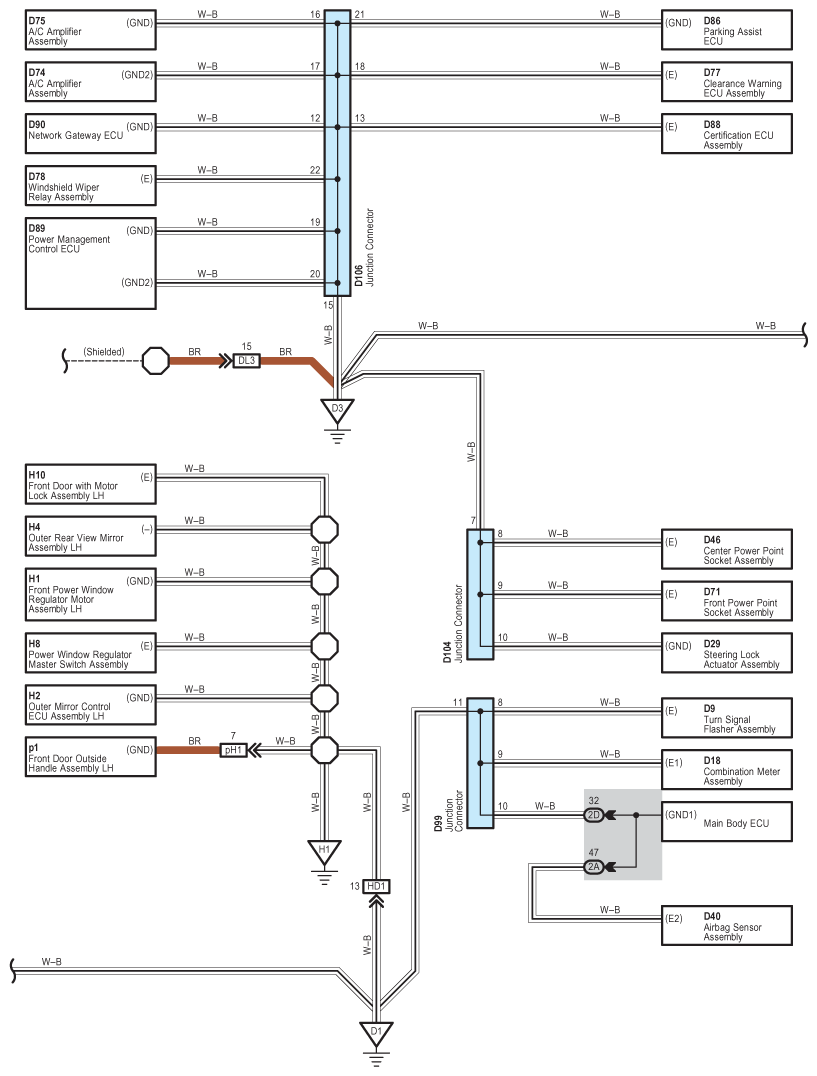

Fig 6: Ground Point Wiring Diagram (6 Of 12)

G08846404

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

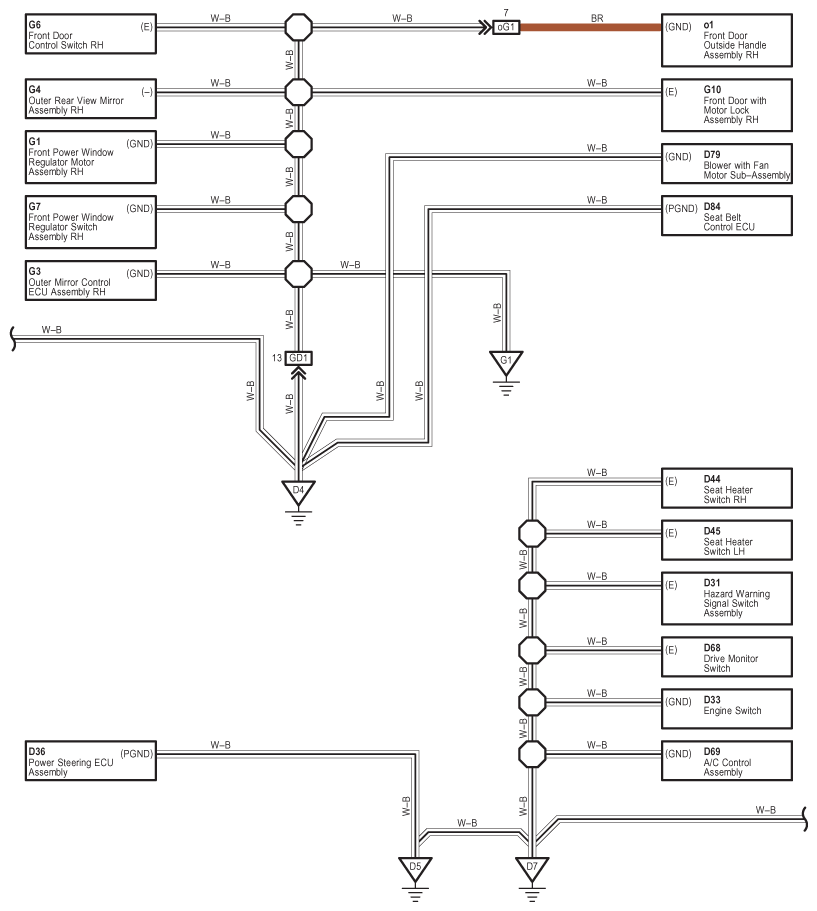

Fig 7: Ground Point Wiring Diagram (7 Of 12)

G08846405

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

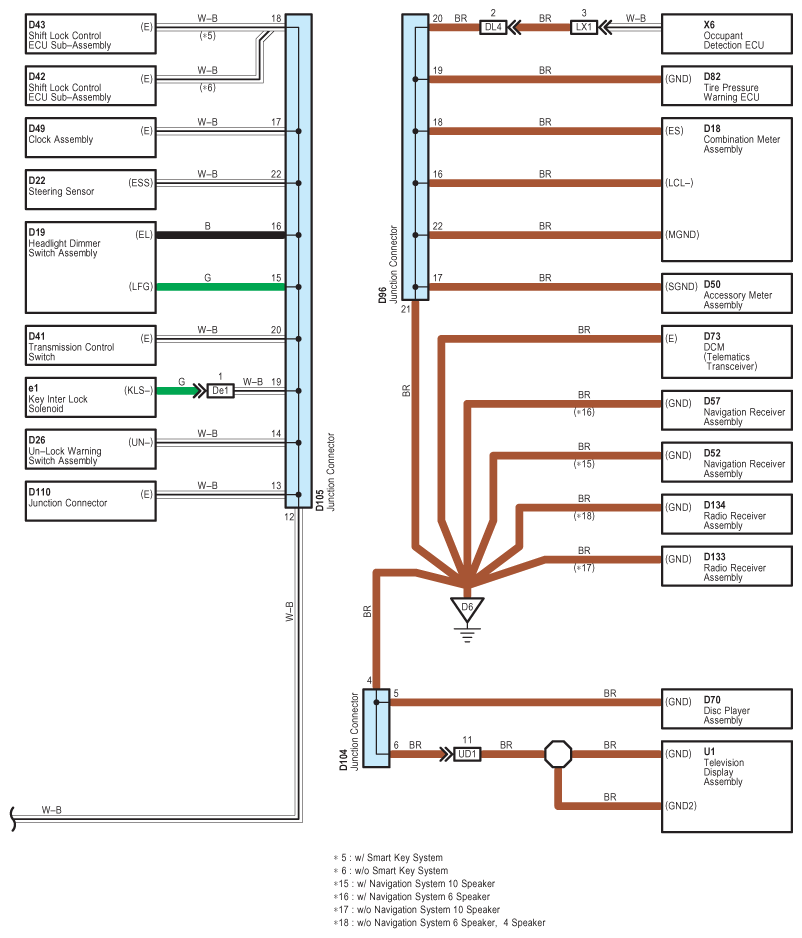

Fig 8: Ground Point Wiring Diagram (8 Of 12)

G08846406

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

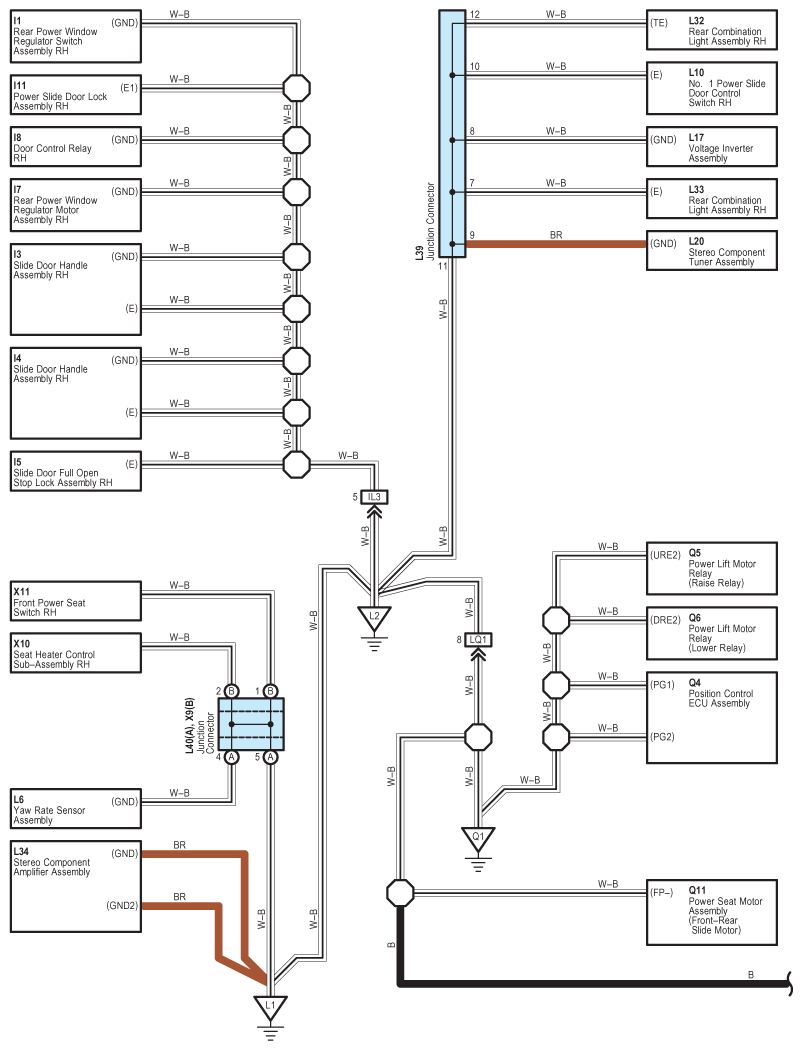

Fig 9: Ground Point Wiring Diagram (9 Of 12)

G08846407

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

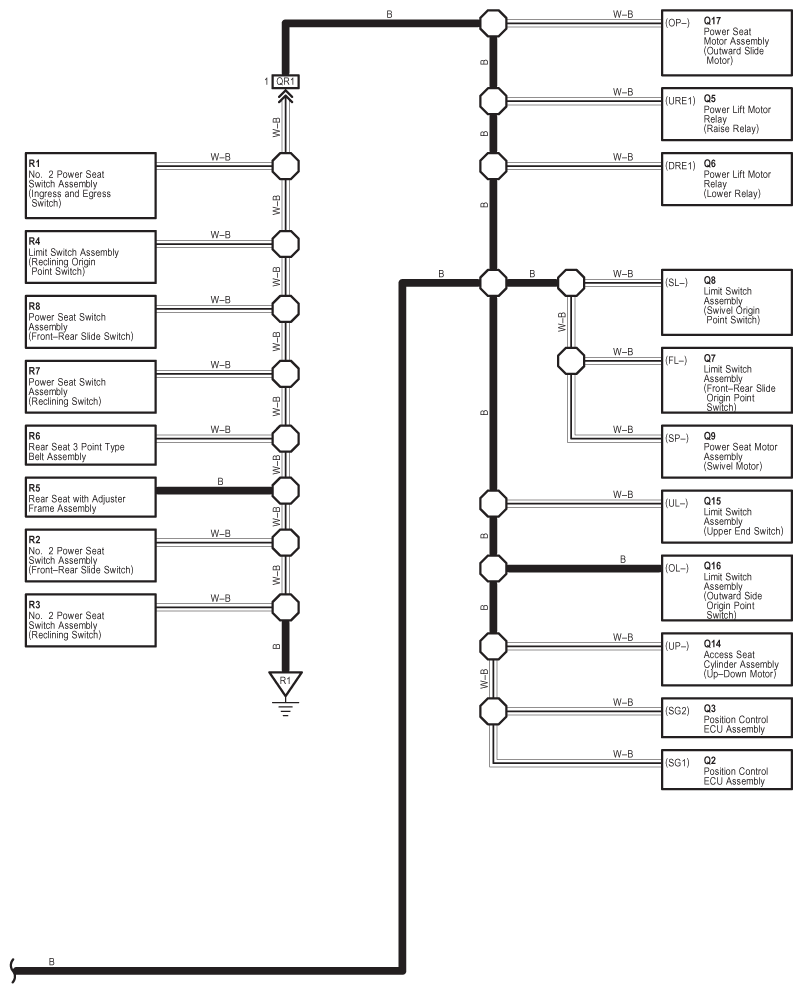

Fig 10: Ground Point Wiring Diagram (10 Of 12)

G08846408

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

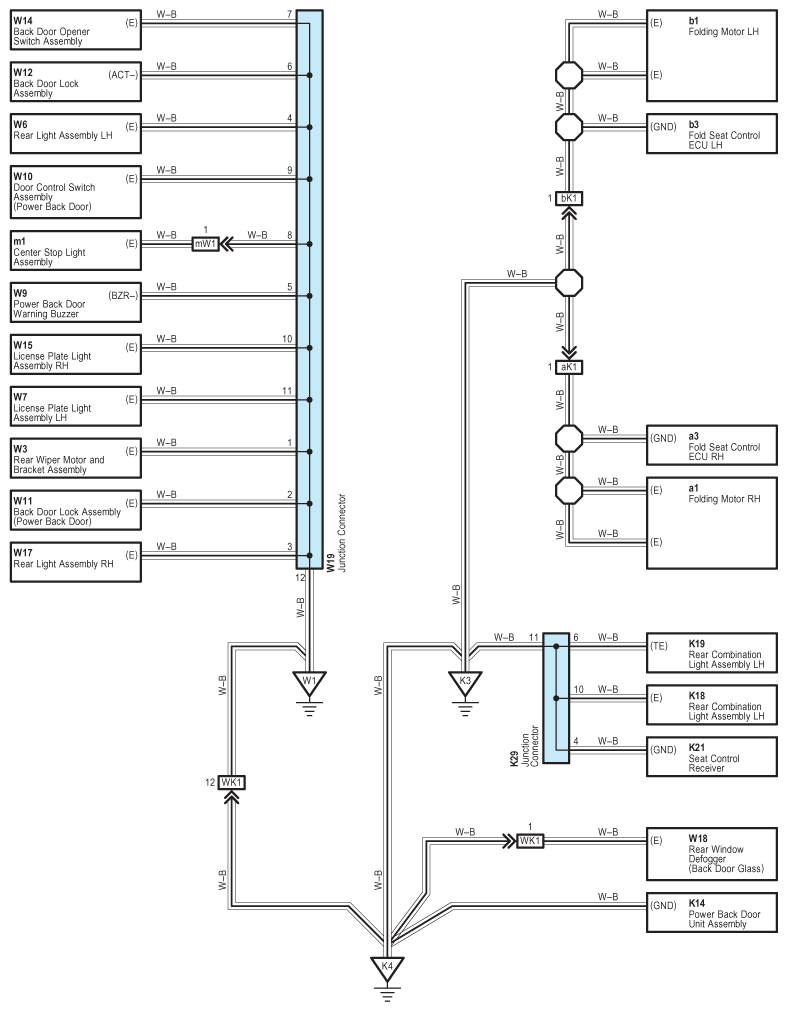

Fig 11: Ground Point Wiring Diagram (11 Of 12)

G08846409

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

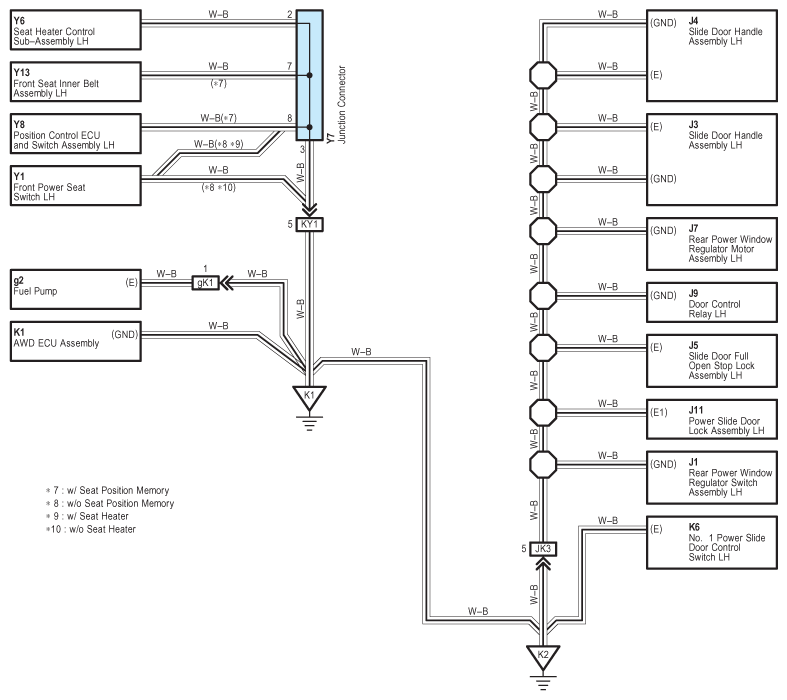

Fig 12: Ground Point Wiring Diagram (12 Of 12)

G08846410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
