Seat Position Sensor: Components: Illustration

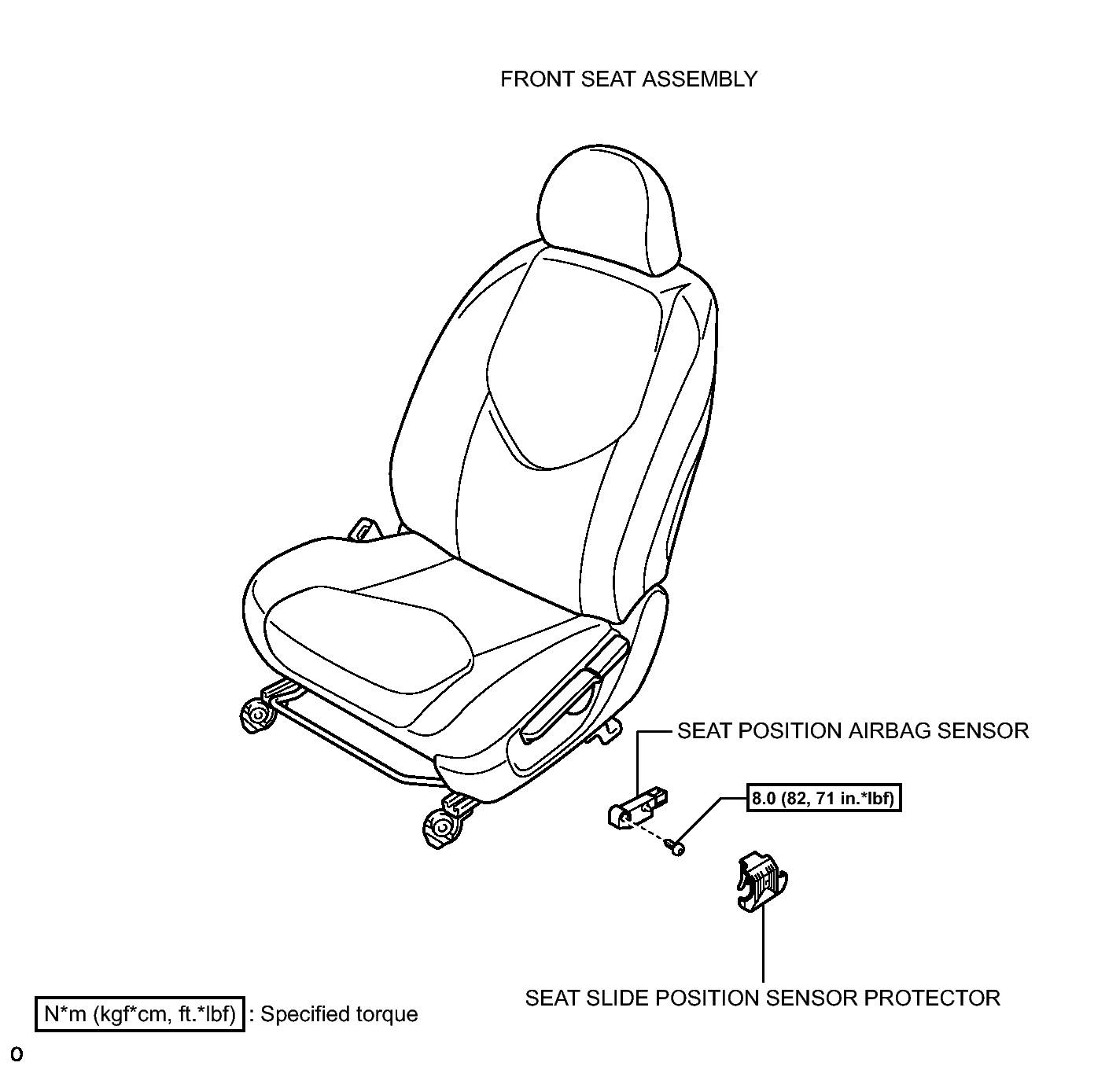

Fig 1: Identifying Seat Position Sensor Replacement Components With Torque Specifications

GTY239635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
