Rear Airbag Sensor: Components: Illustration

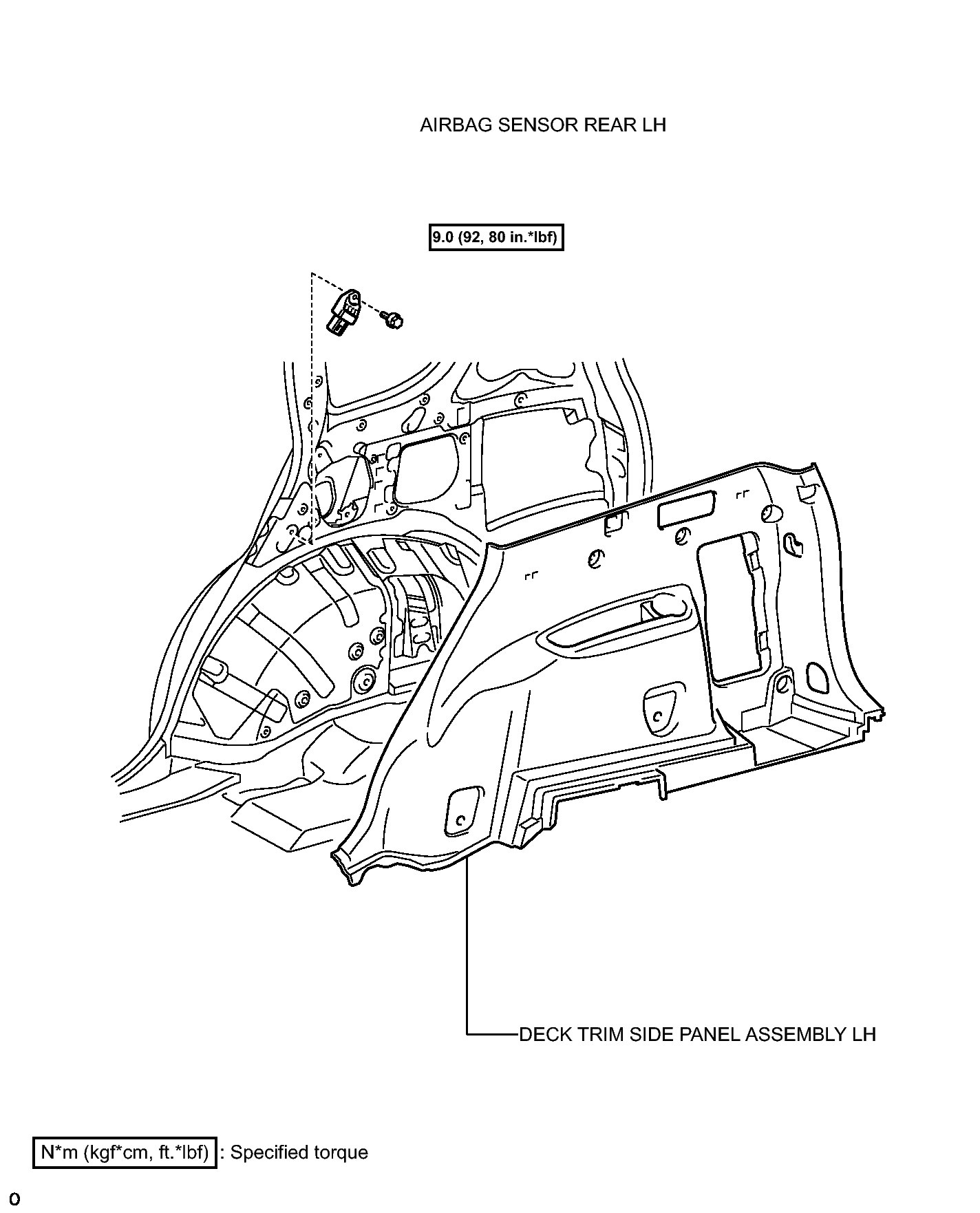

Fig 1: Rear Airbag Sensor Replacement Components With Torque Specifications

GTY239637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
