Ignition (2AR-FE): Notes

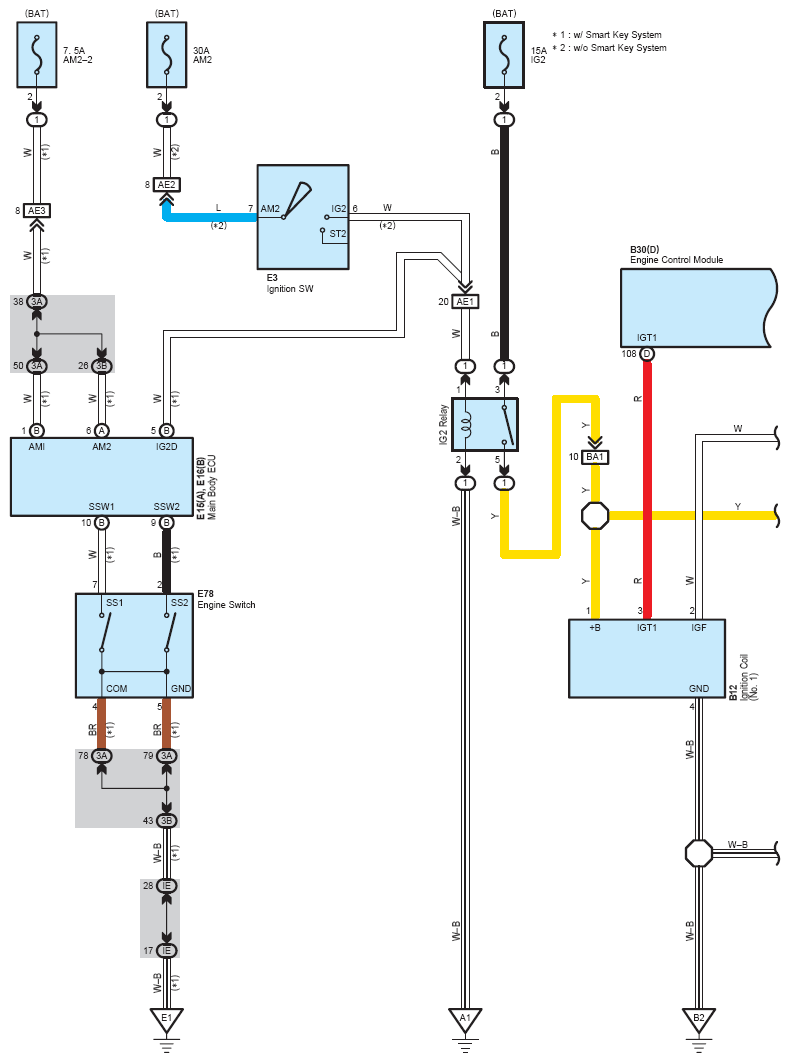

Fig 1: Ignition System Wiring Diagram (2AR-FE; 1 Of 2)
G08845184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

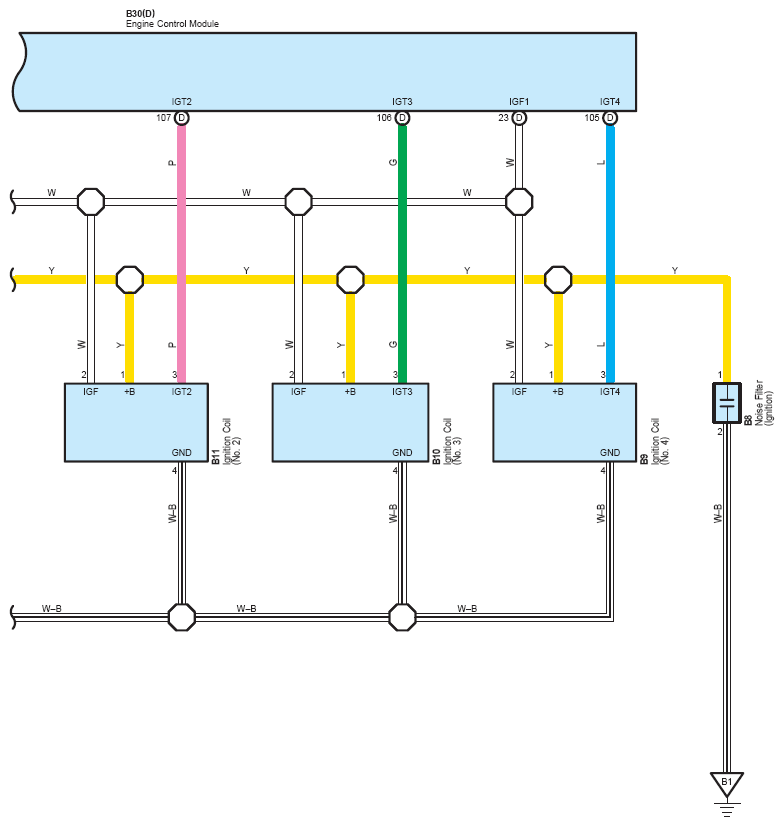

Fig 2: Ignition System Wiring Diagram (2AR-FE; 2 Of 2)
G08845185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
