Cooling Fan (2GR-FE): Notes

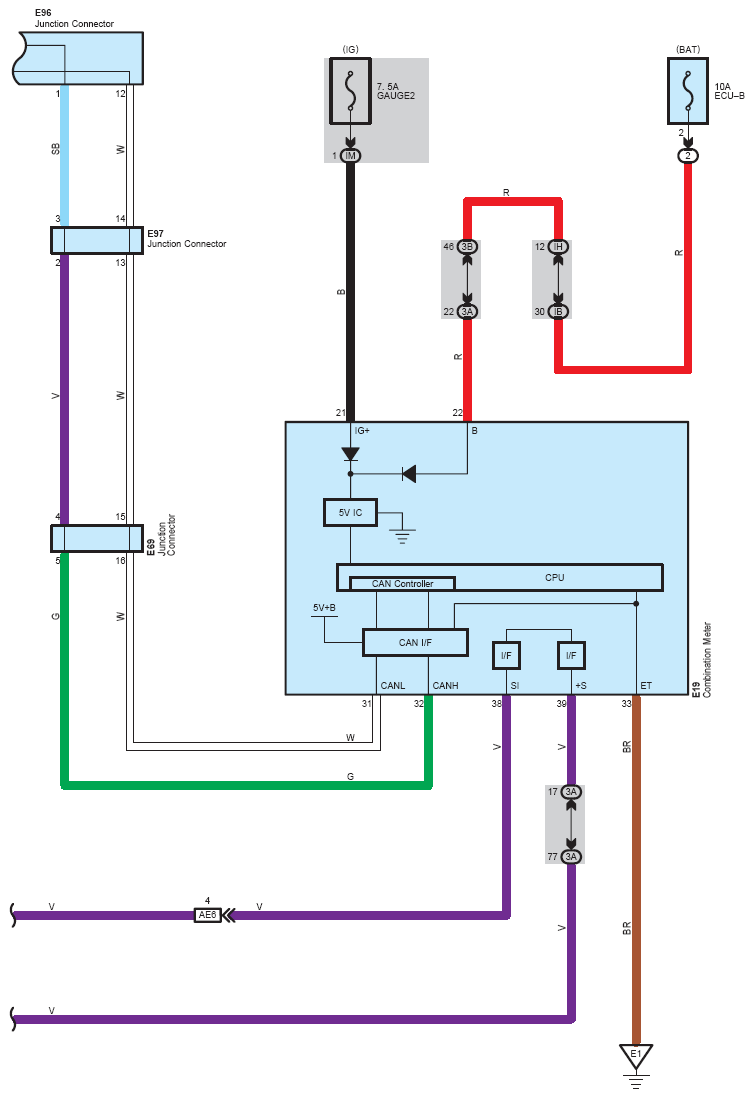

Fig 1: Cooling Fan System Wiring Diagram (2GR-FE; 1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

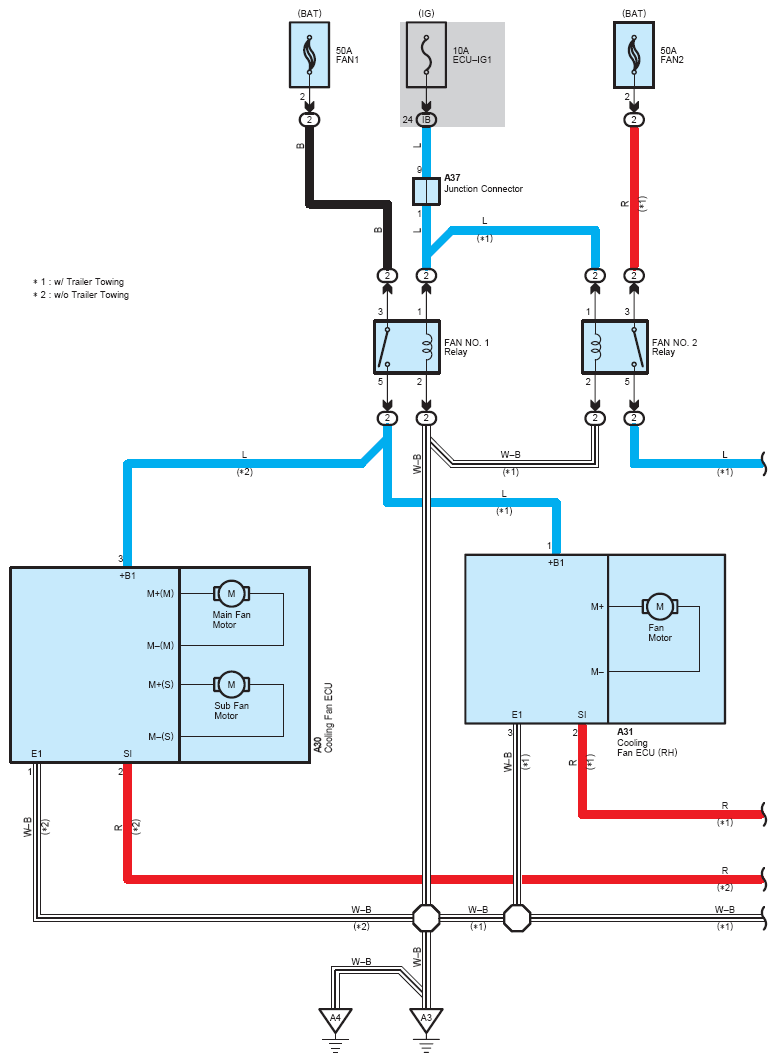

Fig 2: Cooling Fan System Wiring Diagram (2GR-FE; 2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

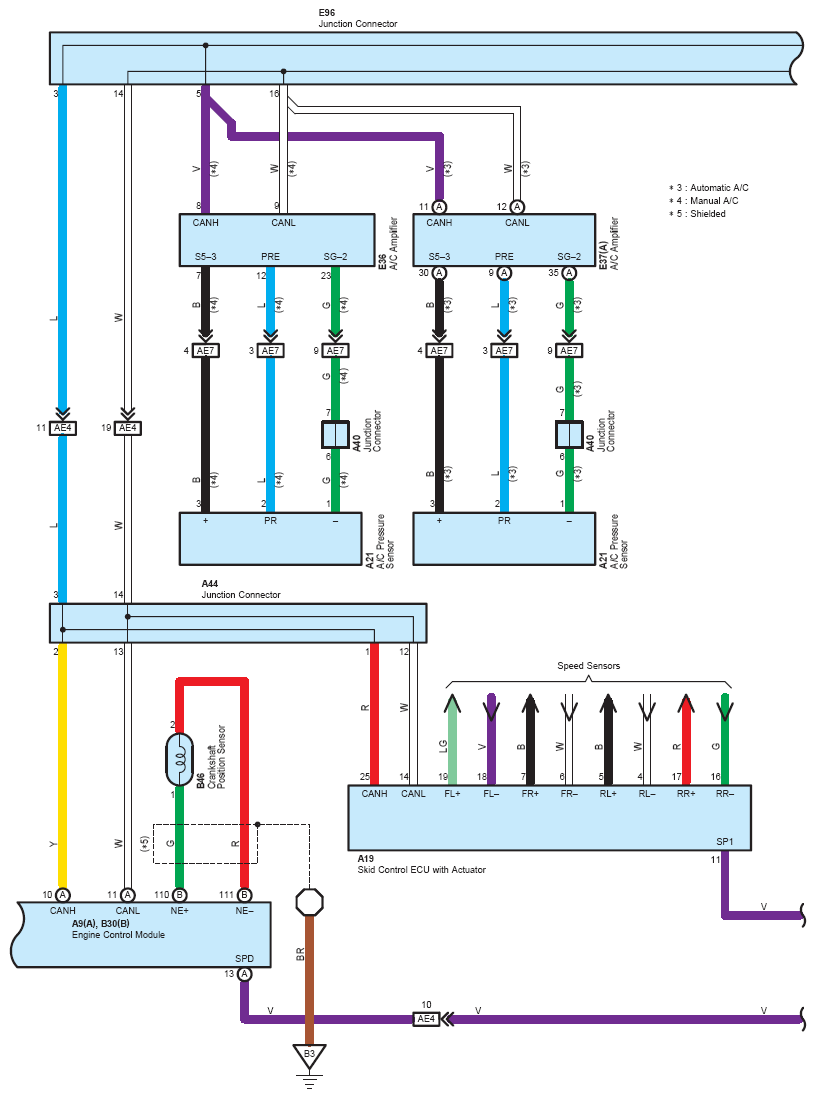

Fig 3: Cooling Fan System Wiring Diagram (2GR-FE; 3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

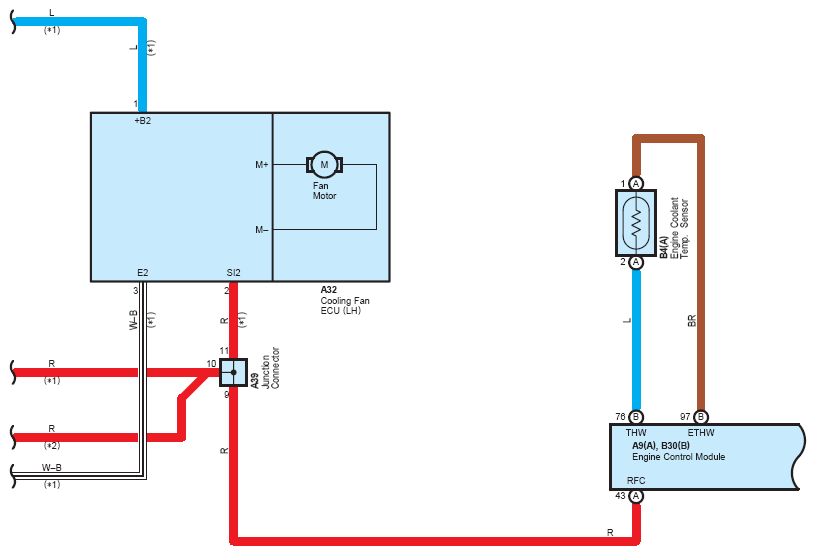

Fig 4: Cooling Fan System Wiring Diagram (2GR-FE; 4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
