ABS, Auto LSD, Downhill Assist Control, Hill-Start Assist Control, TRAC and VSC: Notes

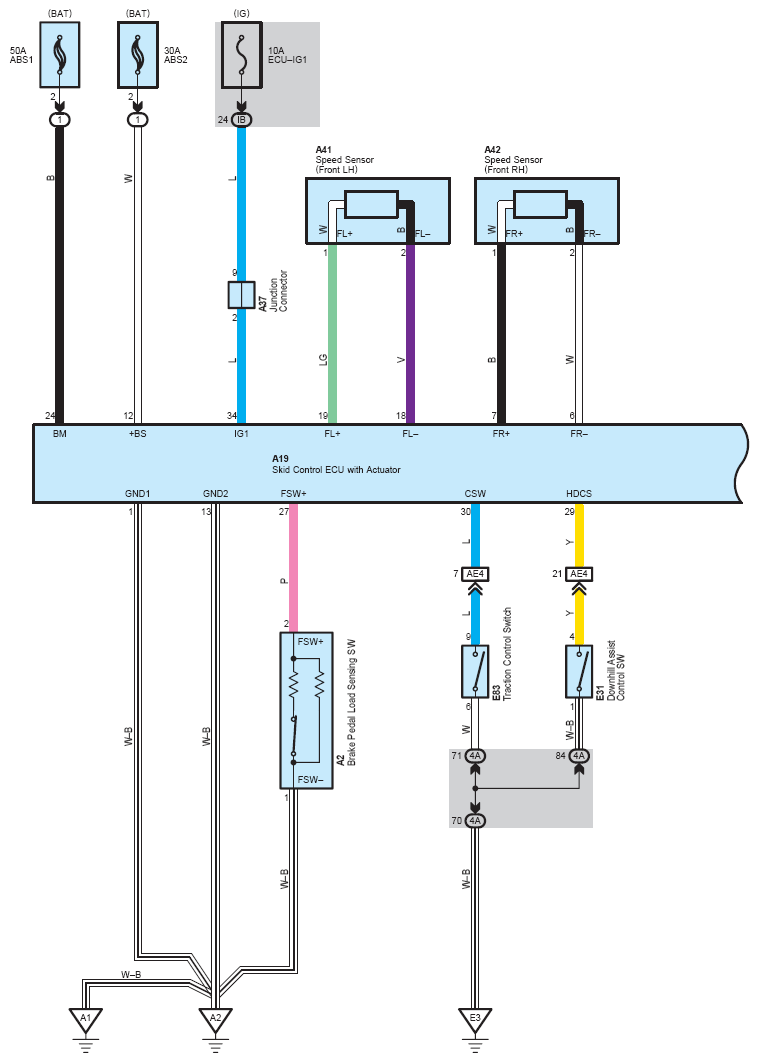

Fig 1: ABS, Auto LSD, Downhill Assist Control, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (1 Of 5)
G08845307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

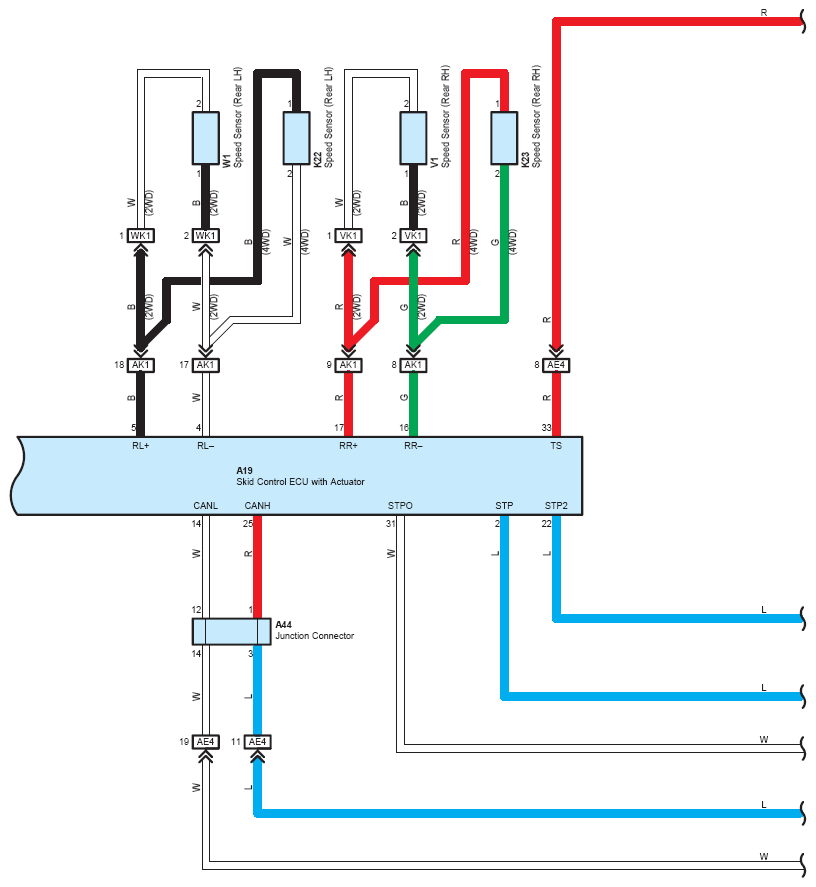

Fig 2: ABS, Auto LSD, Downhill Assist Control, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (2 Of 5)
G08845308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

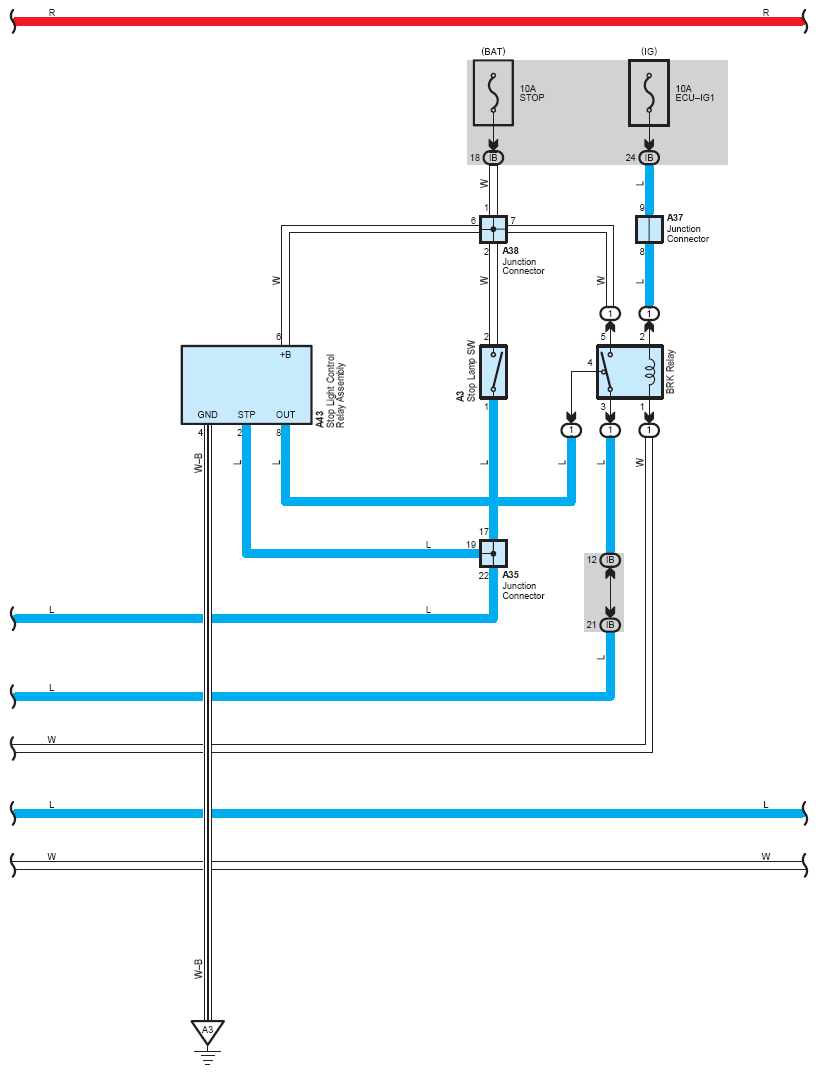

Fig 3: ABS, Auto LSD, Downhill Assist Control, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (3 Of 5)
G08845309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

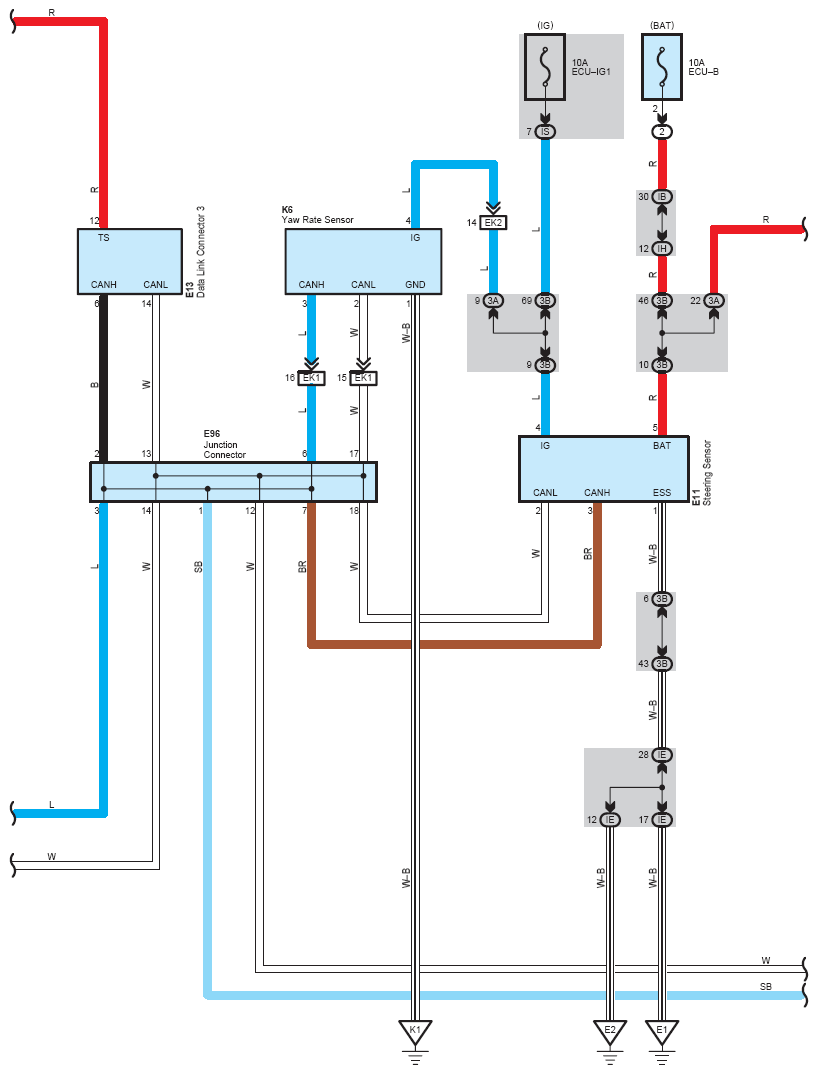

Fig 4: ABS, Auto LSD, Downhill Assist Control, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (4 Of 5)
G08845310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

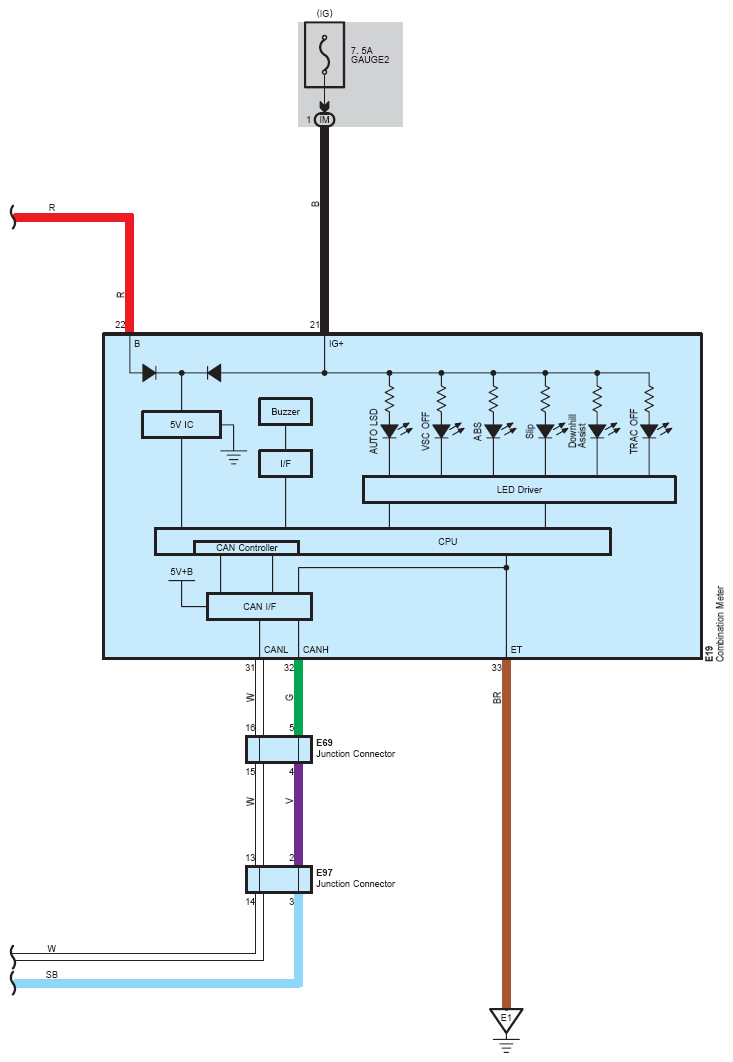

Fig 5: ABS, Auto LSD, Downhill Assist Control, Hill-Start Assist Control, TRAC And VSC System Wiring Diagram (5 Of 5)
G08845311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
