Brake Actuator: Components: Illustration

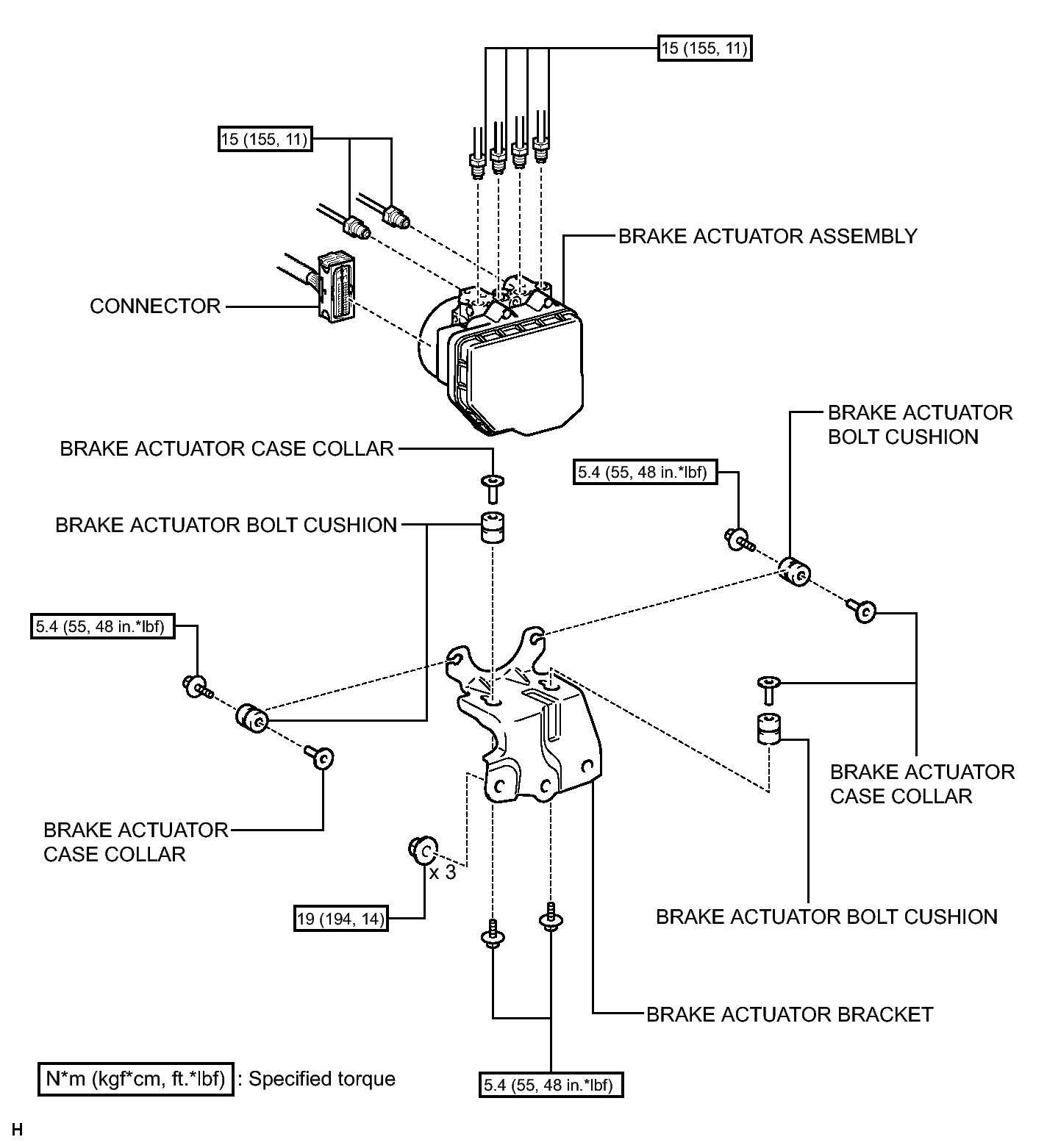

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications

GTY325247

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
