Remote Up / Down Function does not Operate: Wiring Diagram

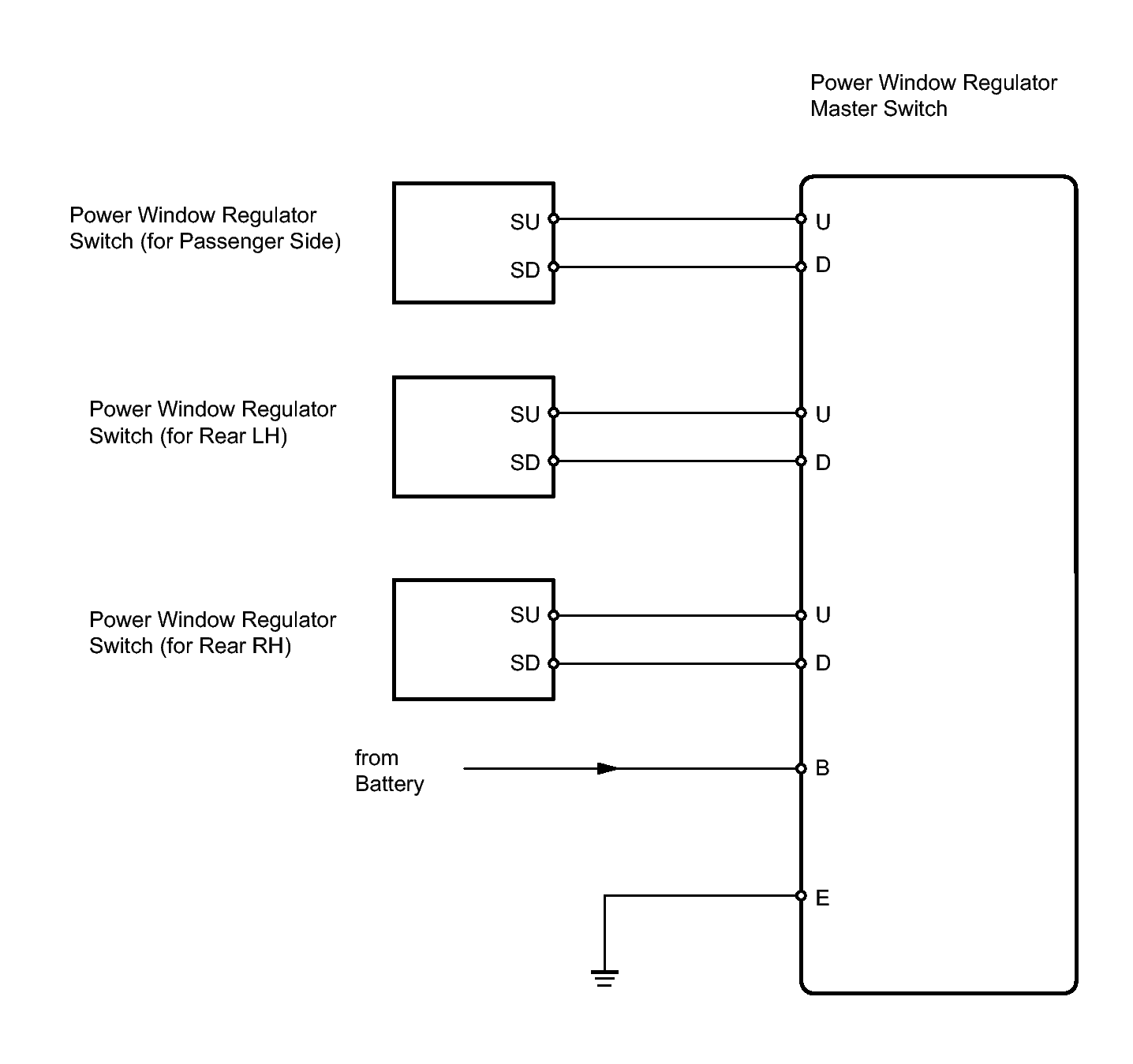

Fig 1: Power Window Regulator Master Switch System Wiring Diagram

GTY246307

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
