Seat Position Sensor: Components: Illustration

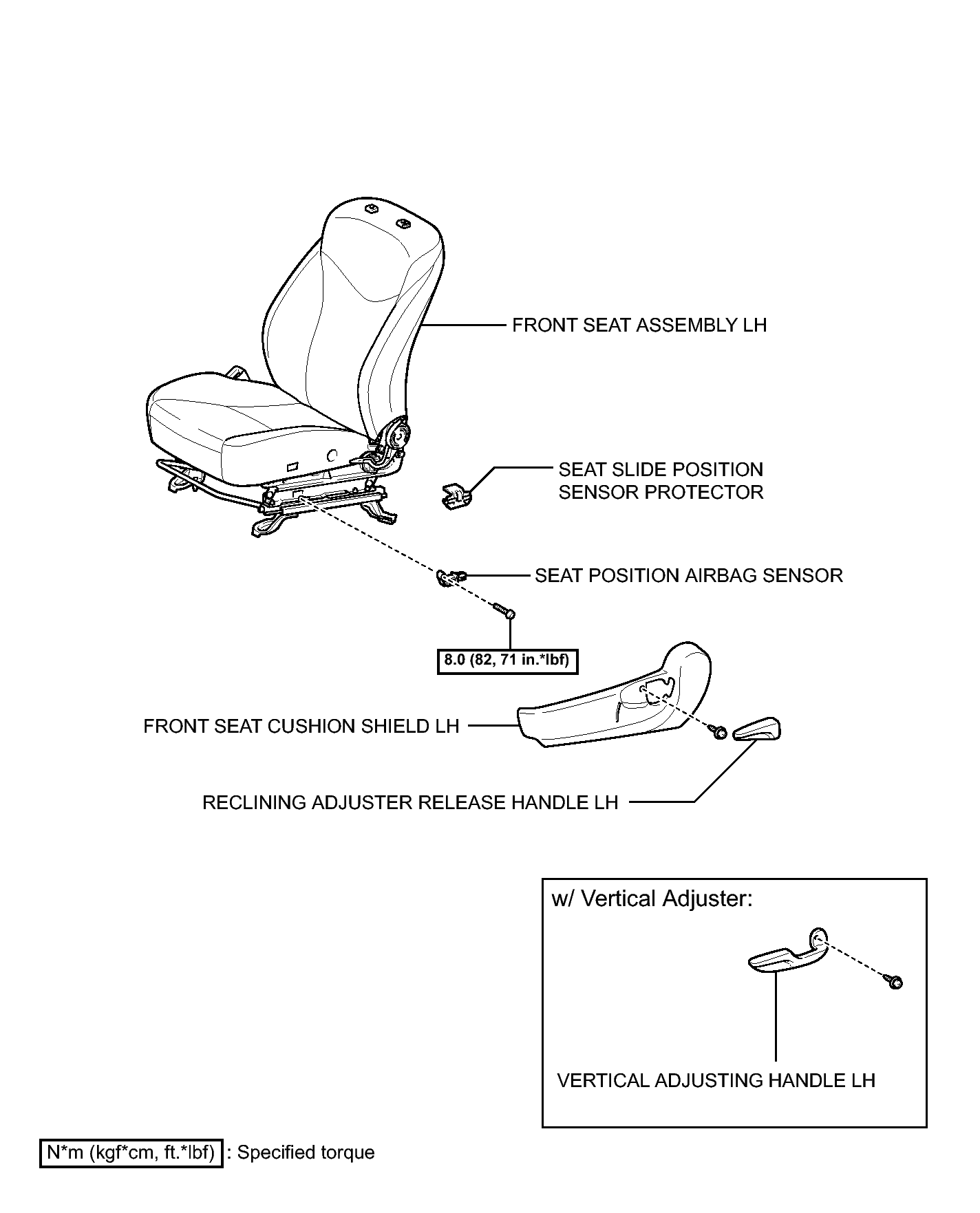

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications

GTY334350

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
