Rear Airbag Sensor: Components: Illustration

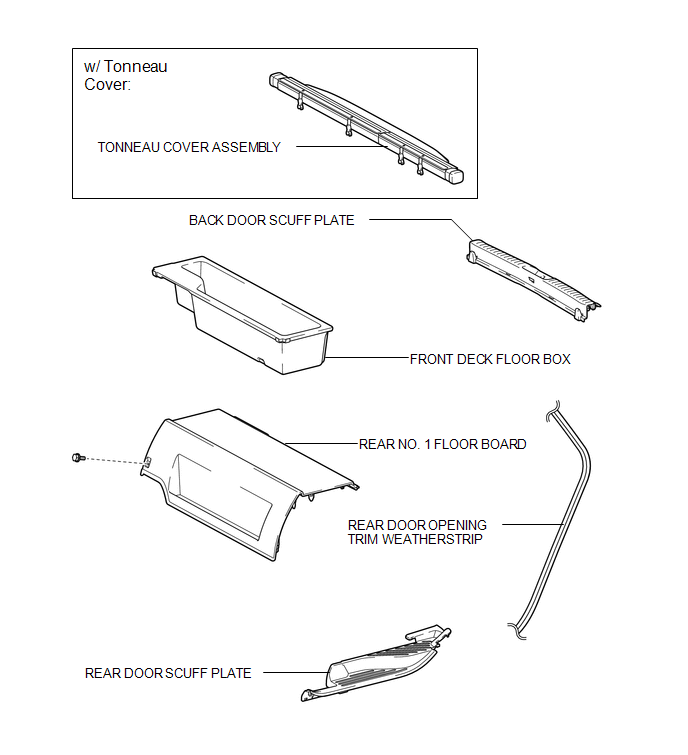

Fig 1: Rear Airbag Sensor Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Rear Airbag Sensor Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

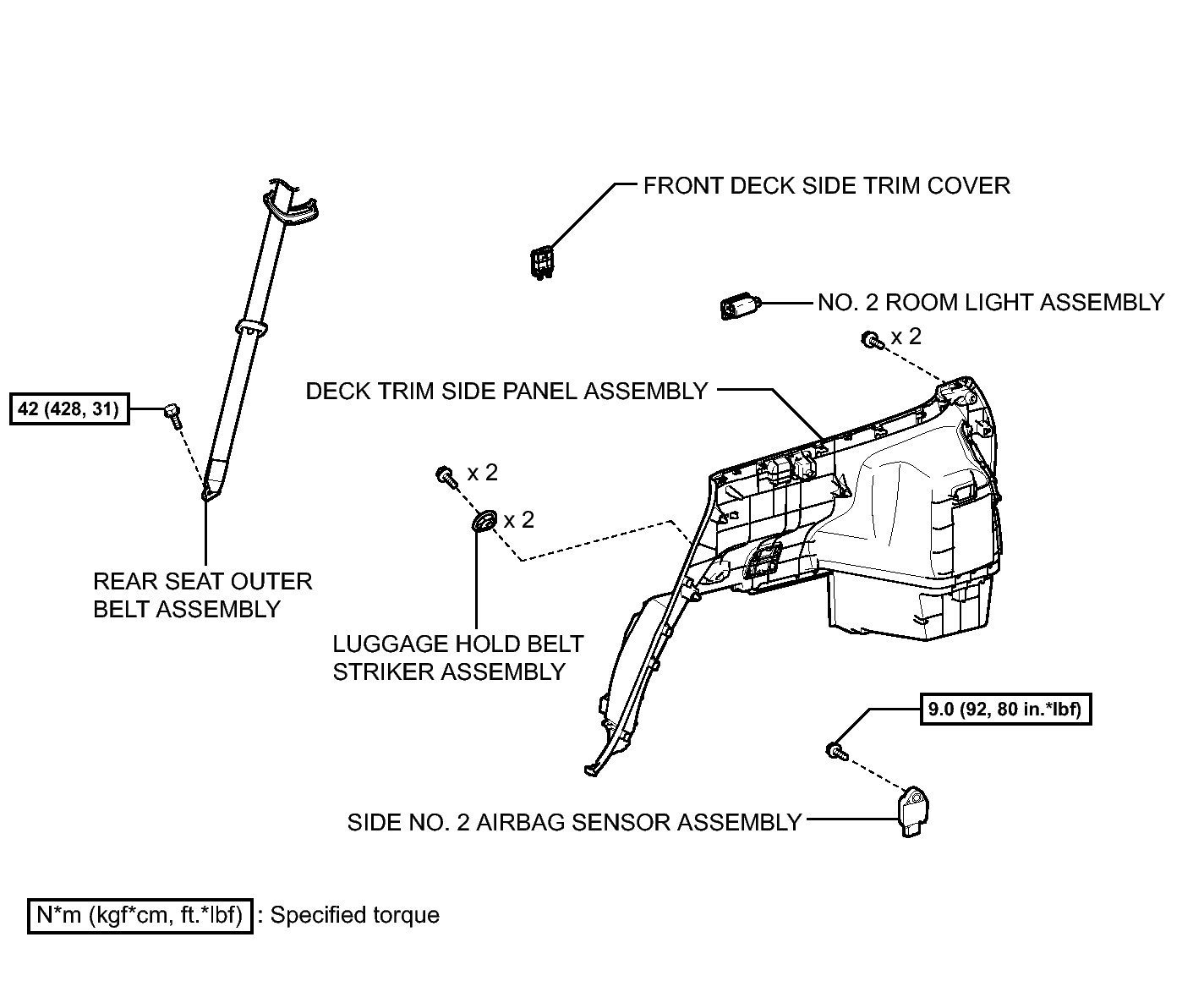

Fig 1: Rear Airbag Sensor Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
