Front Airbag Sensor: Components: Illustration

Fig 1: Front Airbag Sensor Replacement Components (1 Of 2)
GTY333117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

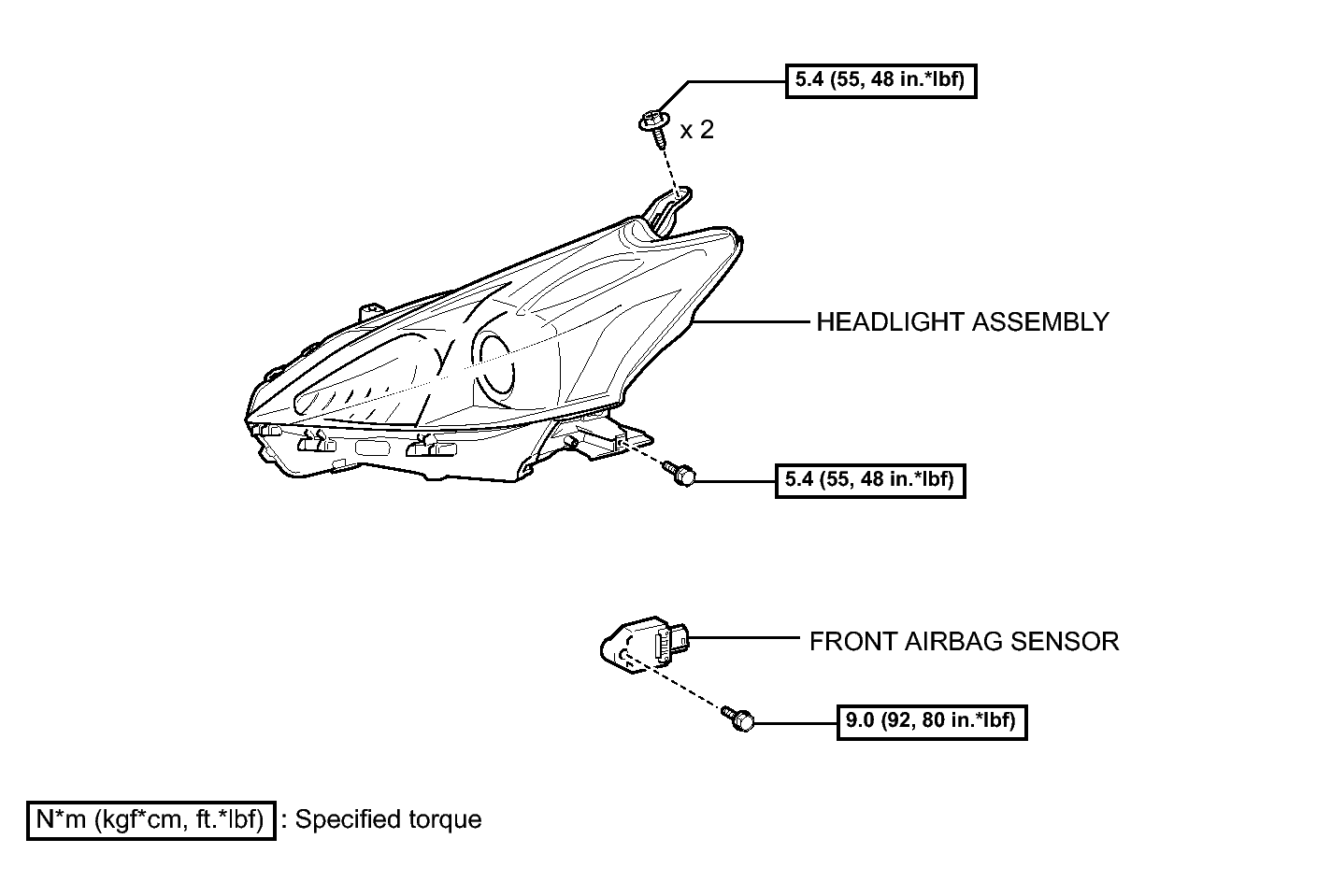

Fig 1: Front Airbag Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY326950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
