Mass Air Flow Meter: Removal: Removal

  1. REMOVE NO. 2 CYLINDER HEAD COVER
  2. REMOVE MASS AIR FLOW METER
    1. Disconnect the mass air flow meter connector.

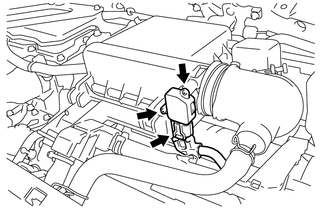

      Fig 1: Identifying Mass Air Flow Meter & Connector
      GTY328259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and mass air flow meter.
