Fuel Tank: Components: Illustration

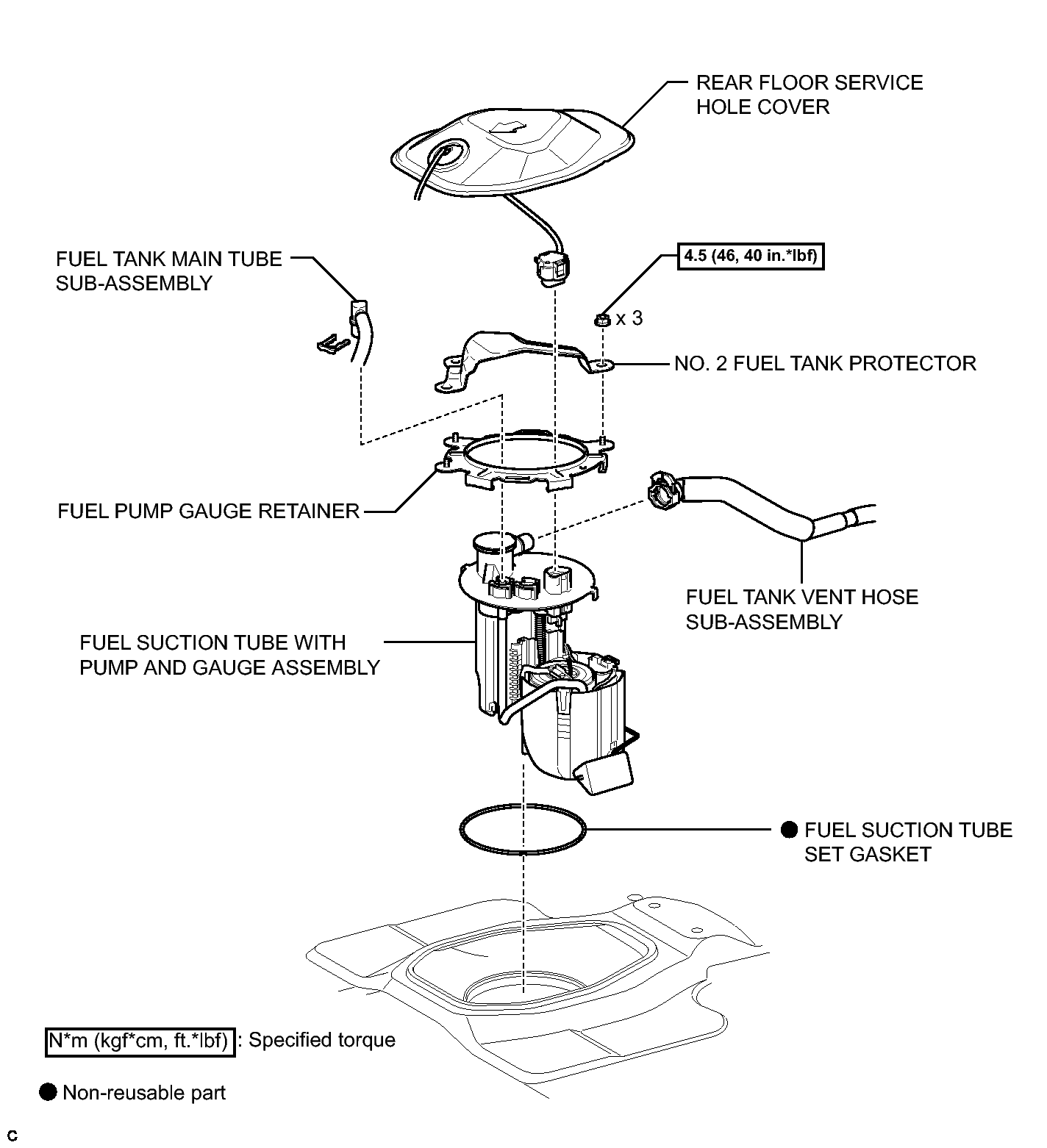

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
GTY332129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Fuel Tank Replacement Components With Torque Specifications (2 Of 3)
GTY333507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

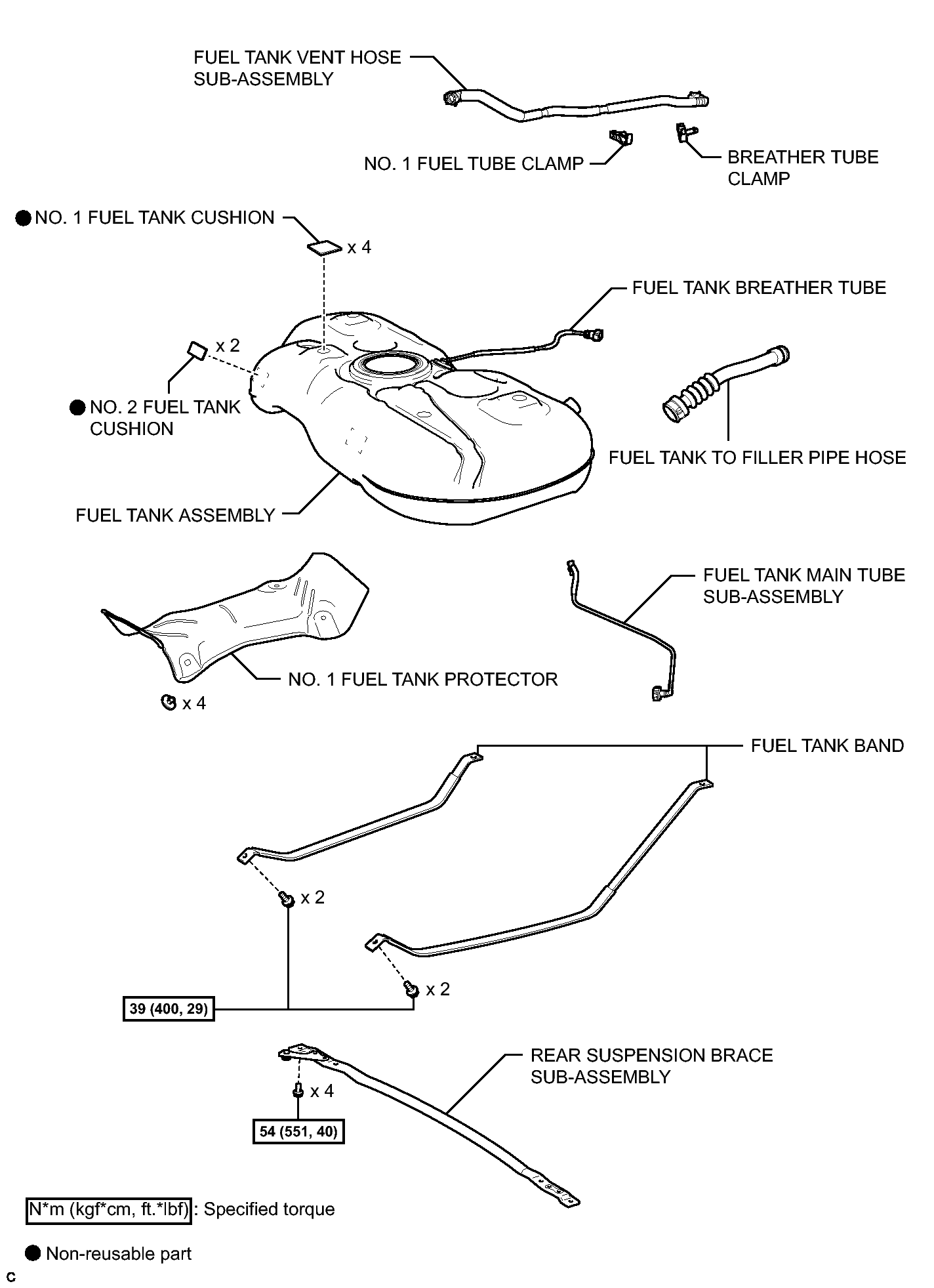

Fig 1: Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
GTY333874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
