Fuel Pump: Components: Illustration

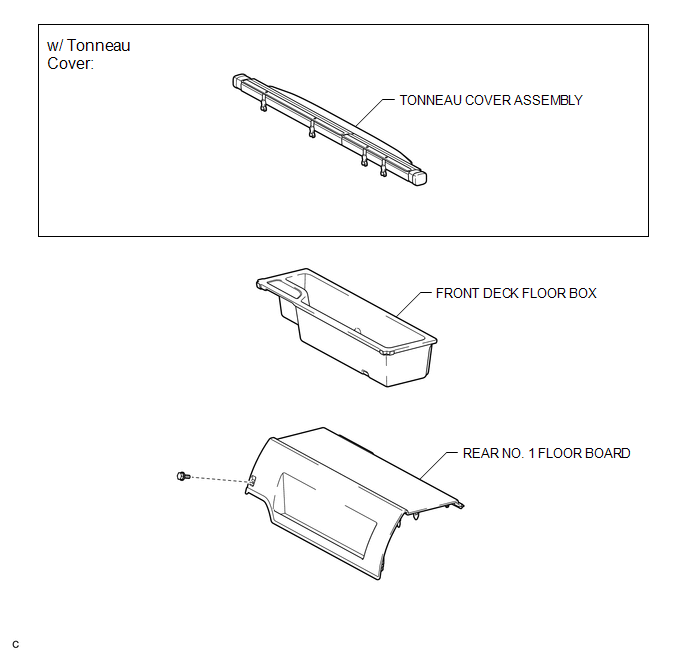

Fig 1: Fuel Pump Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

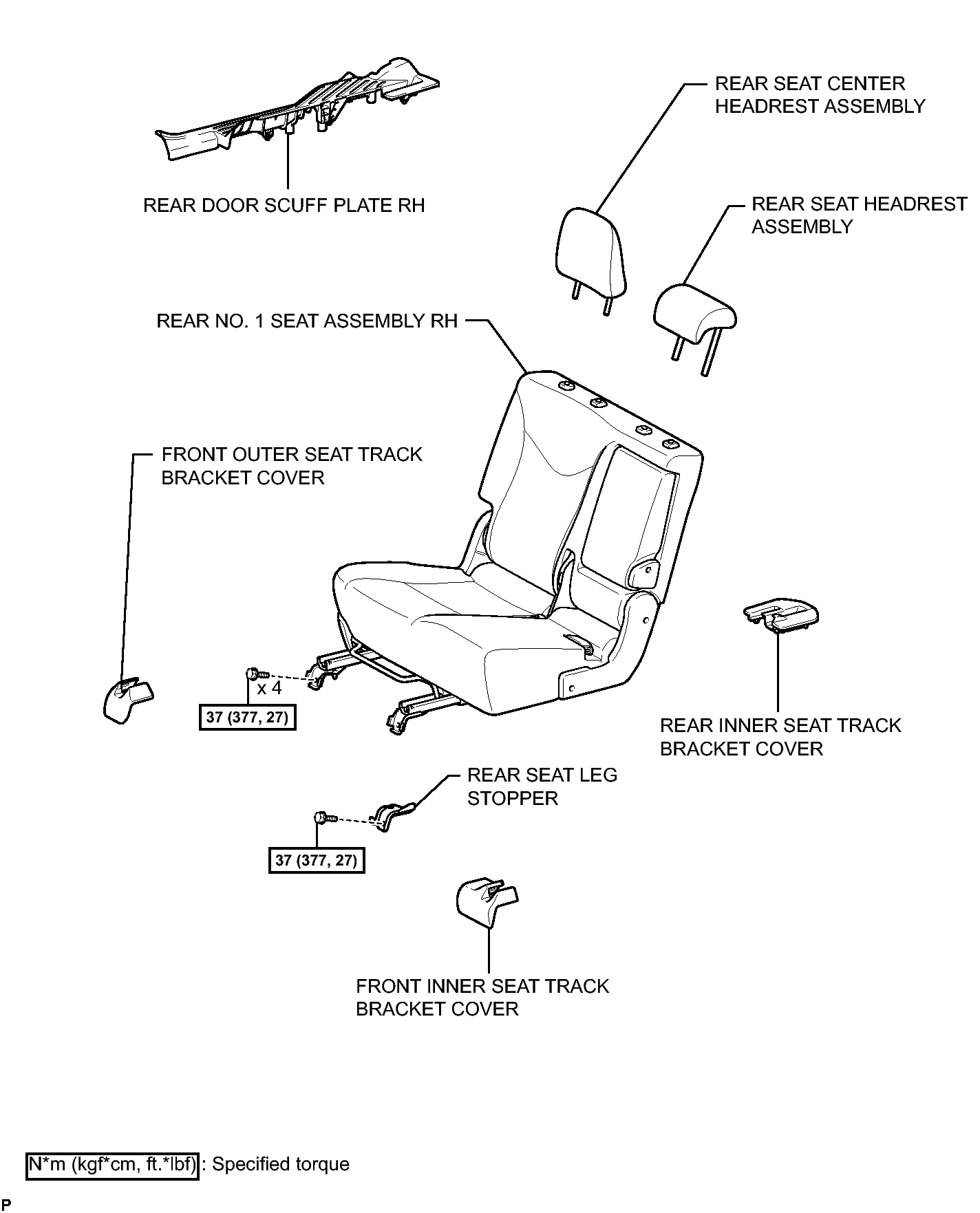

Fig 1: Fuel Pump Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

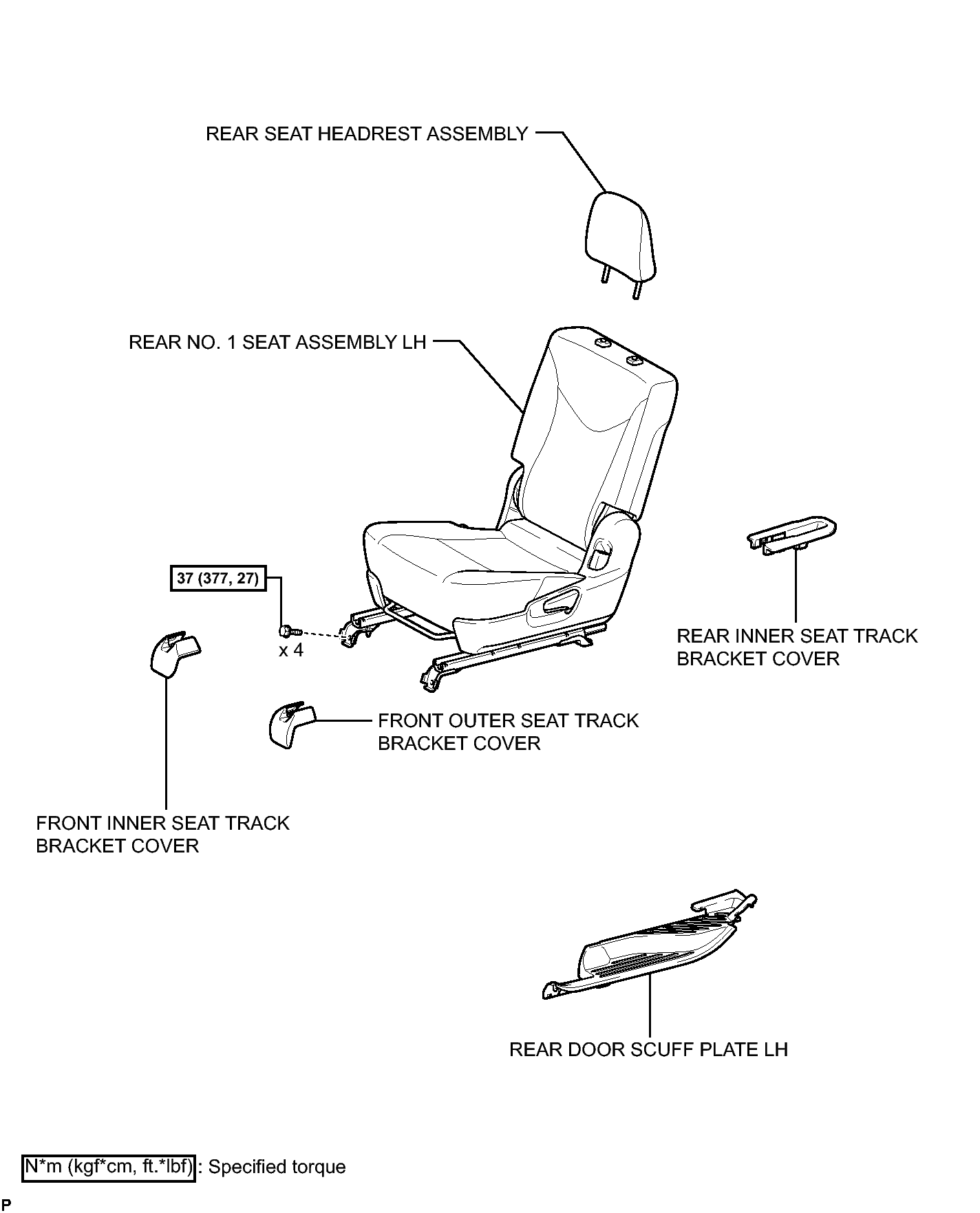

Fig 1: Fuel Pump Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

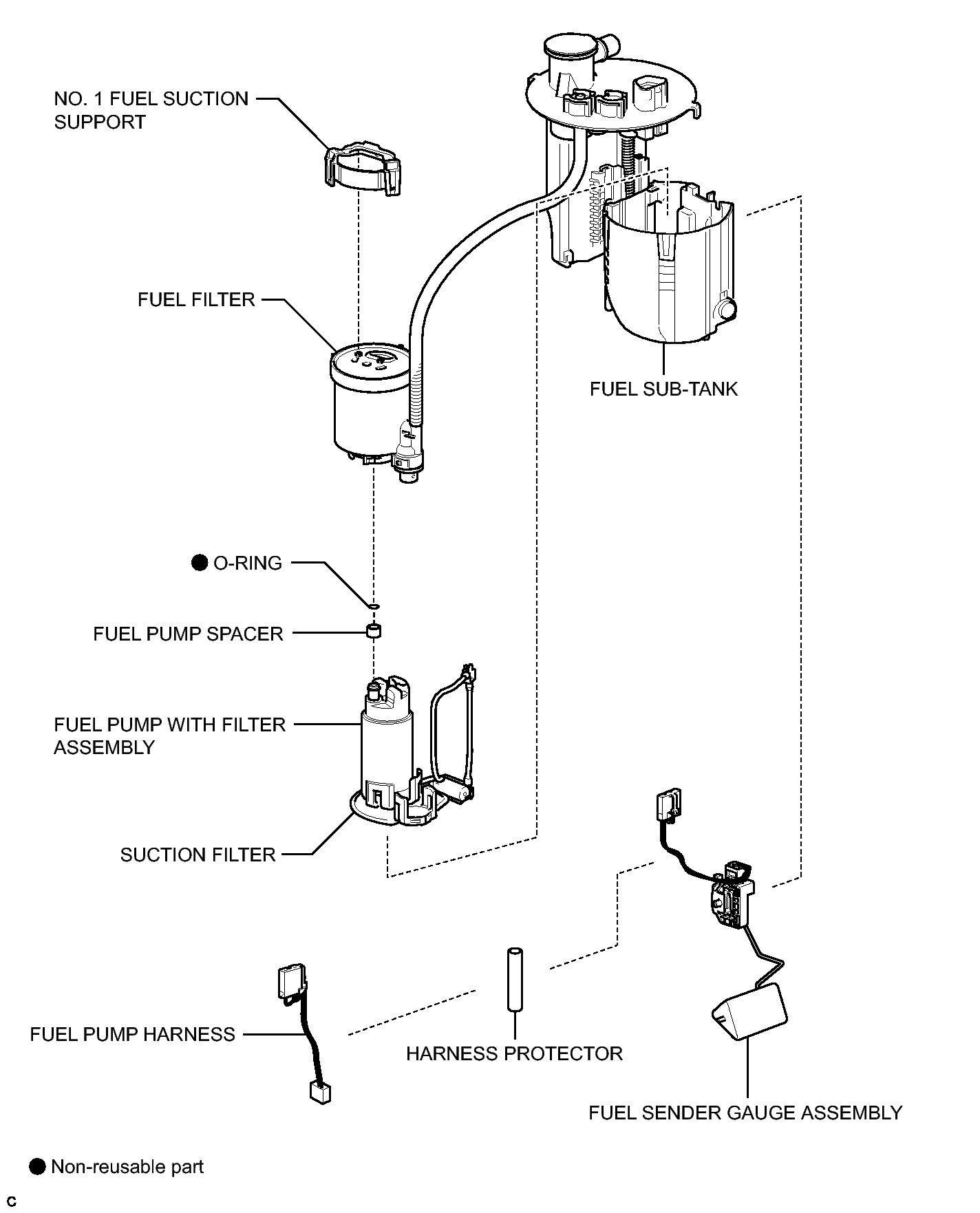

Fig 1: Fuel Pump Replacement Components (4 Of 6)

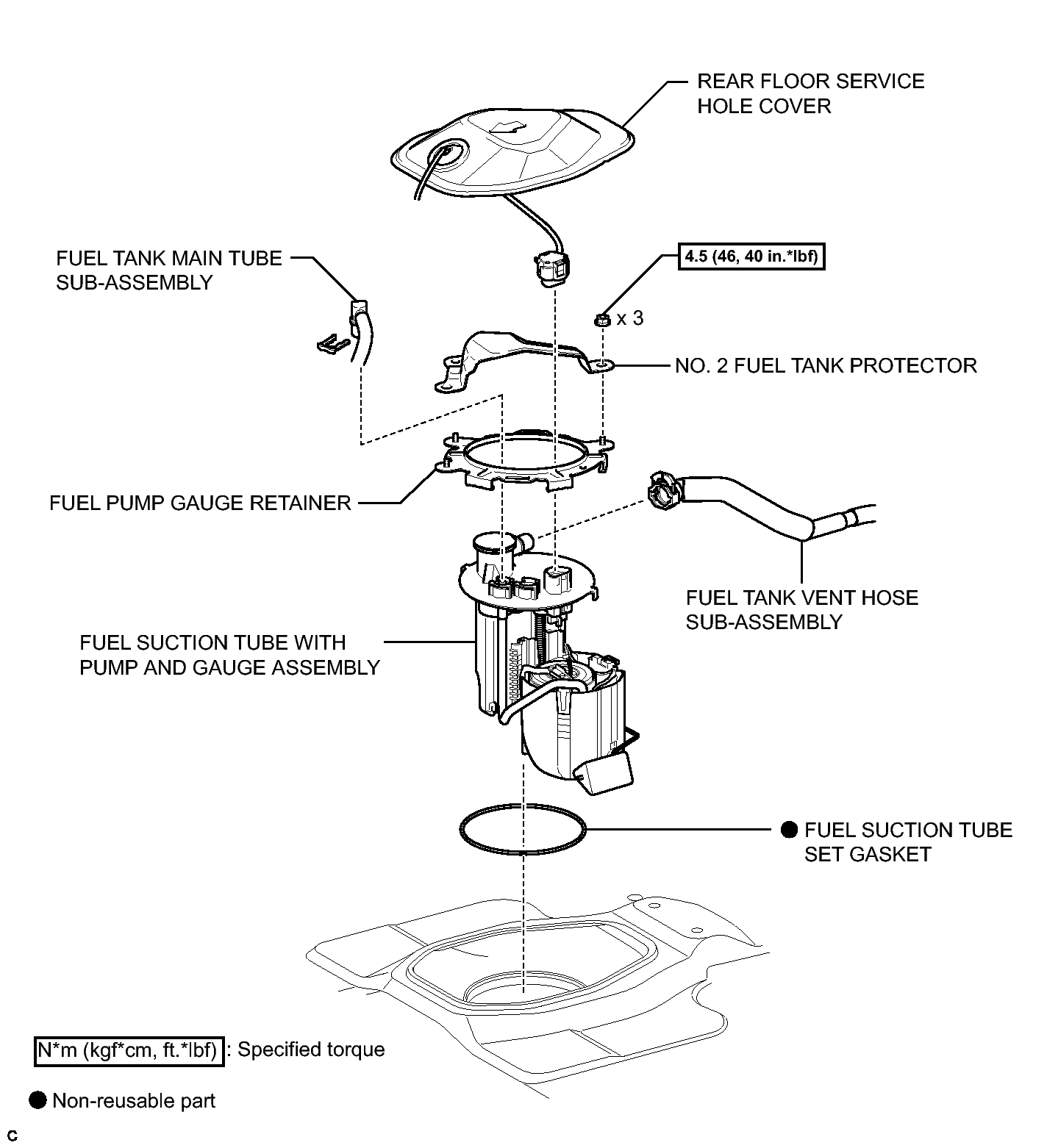

Fig 1: Fuel Pump Replacement Components With Torque Specifications (5 Of 6)

Fig 1: Fuel Pump Replacement Components (6 Of 6)
