Yaw Rate And Acceleration Sensor: Components: Illustration

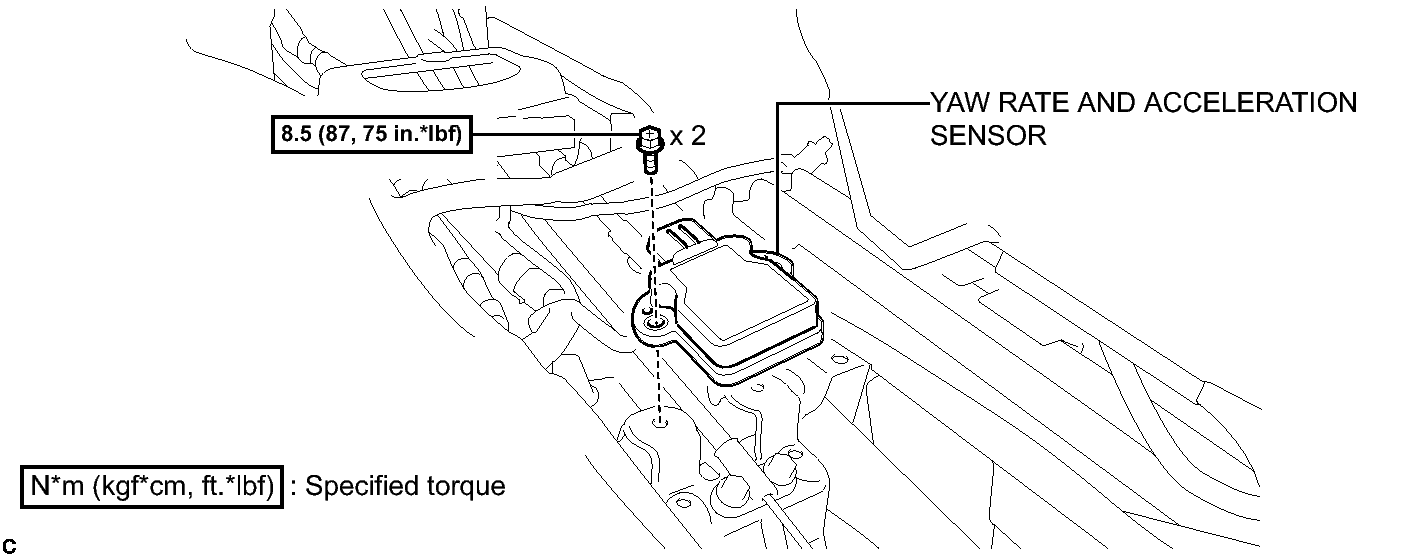

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components Location With Torque Specifications
GTY342236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
